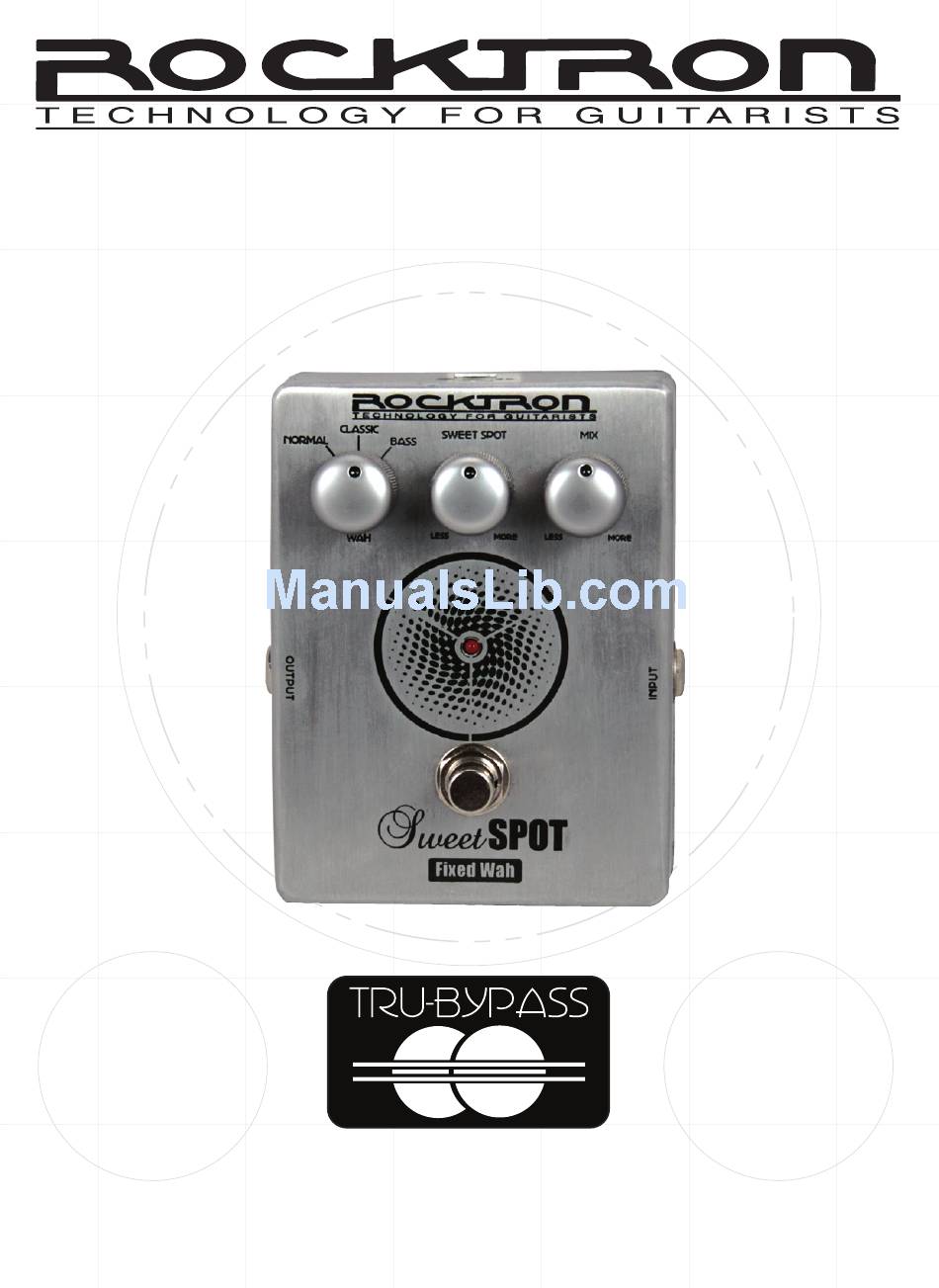

- Page 1 Sweet Spot Instruction Manual This pedal is: May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617. Other patents pending. Foreign patents pending.
- Page 2 This will help insure compliance with the Directive(s). For more information about other Rocktron products, please see your local dealer or one of our importers closest to you (listed on the Rocktron website (www.rocktron.com). Read all instructions contained in this manual.
-
Page 3: Operating Temperature
Precautions Refer all service to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply or plug is damaged, liquid has been spilled or objects have fallen into the apparatus or if the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped. - Page 4 Wah effect to the main signal. Thus if you only want to have a little bit of Sweet Spot “wah frequency” added to your main signal you can mix it in using this knob. If you want more - just turn the knob to the right and it is full on.
- Page 5 Descriptions...

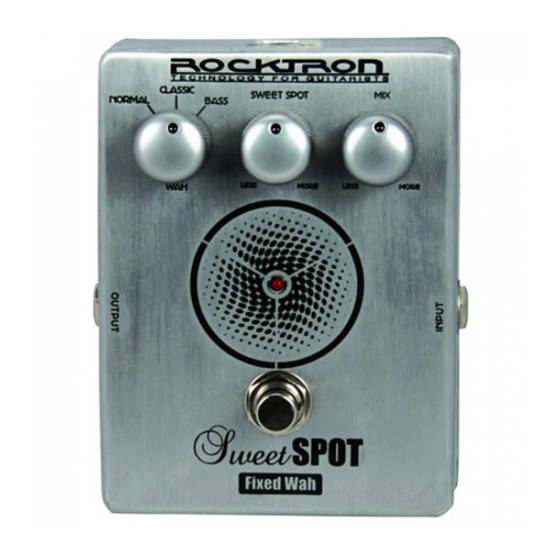

- Page 6 SWEET SPOT Control: Adjusts the wah frequency of the selected WAH type. 9VDC Input - This input jack provides 9VDC power to the pedal from the Rocktron DC OnTap 9V power supply (sold separately). MIX Control -Adjusts the amount of Wah Effect added to the main signal.
- Page 7 Descriptions continued..INPUT Jack - Using a standard 1/4” guitar cable, plug your guitar into this jack. OUTPUT Jack - This jack provides the summed out- put of the effect. Use a 1/4” guitar cable to plug into the next effect or into a guitar amplifier. FOOTSWITCH - Use this switch to turn on or off the pedal.
-
Page 8: Typical Connection
Typical Connection... -
Page 9: Specifications
Input Impedance 1MΩ Output Impedance 100Ω Current Consumption 15mA Power Requirements 9V Alkaline Battery or Rocktron DC OnTap Uni- versal Power Supply (sold separately). Negative tip. Dimensions 95mm x 120mm x 56mm 3.75” x 4.75” x 2.25” Weight 450g 15.87 oz... -
Page 10: How To Change The Battery
(sold separately). The Rocktron DC OnTap provides a constant flow of power to the pedal, unlike a battery that will degrade over time. The Rocktron DC OnTap Universal Power Supply can also power up to 20 pedals and can be used with both 110V and 220V power sources. - Page 11 Rocktron - A Division of GHS Corporation 2813 Wilber Ave Battle Creek MI 49037 www.rocktron.com info@rocktron.com tel: 1-269-968-3351 rev. 073110 2010.1...
