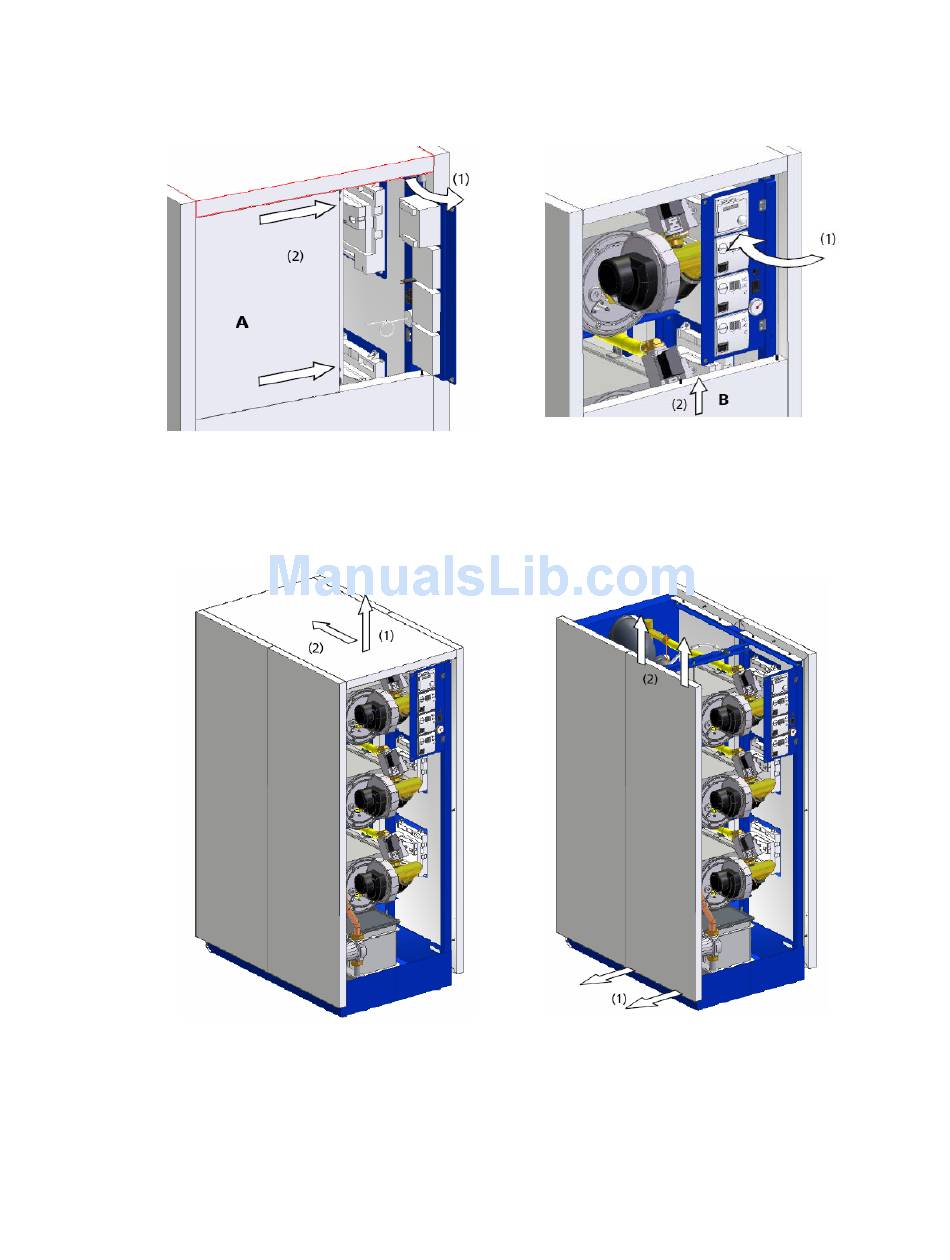

5. (1)Swing the Control Panel to the right
(2) Slide panel A to the right and remove.
7. (1) Lift the top panel up, (2) push to the rear
of the unit and remove.
© MHG Heating Ltd
6. (1) Swing the control panel back
into its rest position, (2) slid panel
B up and remove.
8. (1) Pull the base of each side
panel to disengage it from the
press studs, (2) lift the panel
clear of the top pins.
