Summary of Contents for Hayter Hayterette 005

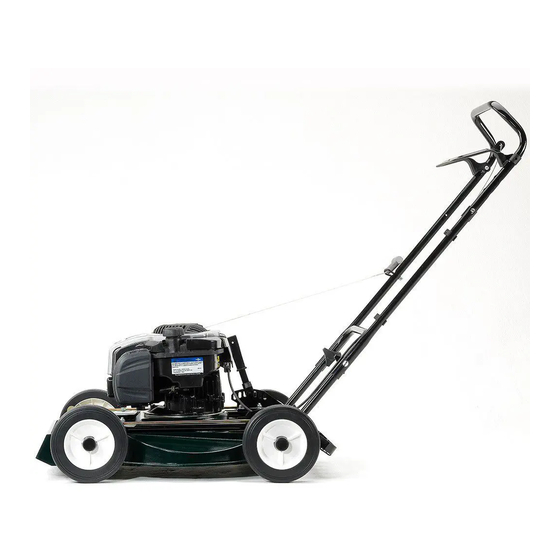

- Page 1 Hayterette Code 005 OWNER’S HANDBOOK Original Version (EN) From Serial No. 312000001 onwards Issue: 25.01.13 Part Number: 3374-350 (B)
-
Page 2: Table Of Contents
CONTENTS - Heavy Growth Contents - Cutterblade Operation - Non-Grassed Areas Introduction - Maintenance Schedule - Engine Detail Safety Precautions 5 - 6 - Safety Alert Symbol - Carburettor Adjustments - Training - Oil Service - Preparation - Air Cleaner Service - Safety Symbols - Spark Plug Service - Operation... -
Page 3: Introduction
The safety precautions listed in this handbook and all other generally recognised regula- tions on safety must be observed at all times. For a full range of products and to locate your nearest authorised sales stockist, service or parts dealer please visit our website at www.hayter.co.uk... - Page 4 SPECIFICATIONS / MAIN FEATURES Code Briggs & Stratton Engine Series 650 Engine type 2750 rpm Unleaded petrol Fuel type 1.4 litres Fuel capacity SAE 30 engine oil Oil type 0.57 litres Oil sump capacity 457mm Cutting width 13 - 70mm Cutting height 1285 x 535 x 960mm Overall dimensions...
-
Page 5: Safety Precautions
- replace all fuel tank and container caps securely. Never mow while people, especially children, or pets are nearby. Always replace worn or faulty parts with genuine Hayter Replace faulty silencers. parts. Keep in mind that the user is responsible for accidents or hazards occurring to other people or their property. -
Page 6: Safety Precautions
SAFETY PRECAUTIONS Allow the engine to cool before storing in any enclosure. Stop the engine and disconnect the spark plug lead: Operation cont - Before clearing blockages. Always ensure the blade has stopped, by releasing the engine stop lever, before tilting the mower for chine. -
Page 7: Delivery Checklist
Remove the mower from the packaging and check that ‘Maintenance Schedule’. the following items have been supplied correctly. If any items are missing, contact your local Hayter dealer. Check Oil Level 2. Warranty Reg Card. the mower on a level surface, unscrew and remove the Handlebar and remove it to check the oil level. -
Page 8: Controls
OPERATING THE MOWER If the engine does not start after 3 - 5 attempts - Refer to Controls Stopping “Trouble Shooting”. Operate all control levers several times and ensure that Release the engine stop lever. the cables move freely. Check that the engine stop lever handlebar to start and keep the engine running. -
Page 9: Slopes
OPERATING THE MOWER shoulder of the cutterblade bolt when encountering a Slopes To prevent engine damage do not use the mower on Keep cutterblades sharp and ensure they are secured slopes greater than 20 degrees. correctly. Height Of Cut Always stop the engine when a hidden obstruction Move the height of cut lever sideways to disengage it or excessive vibration is encountered. -
Page 10: Maintenance Schedule
MAINTENANCE SCHEDULE 50 Hours Or Every Season Maintenance Schedule Change the engine oil. Follow the hourly or calendar intervals, whichever occurs 100 Hours Or Every Season prolonged periods under dusty, dry conditions, or when - Clean the engine cooling system. Clean more often airborne debris is present or after extensive operation under dusty conditions or when airborne debris is cutting tall, dry grass. -
Page 11: Carburettor Adjustments
We recommended that this service be carried bottom of the base (4). Tilt the cover upwards and se- out by an authorised Hayter Service dealer. curely tighten the screw to the base. and thereafter according to the ‘Maintenance Schedule’:- Deck Housing 1. -
Page 12: Securing Nuts And Bolts
- Lubricate the mower and treat metal parts with a water edges to avoid the risk of injury should the tool slip. cutterblade nuts and bolts to a torque of 19Nm. (Refer repellent anti-corrosion product. ALWAYS use genuine Hayter replacement parts. Item No. Description Part No. Qty Blade... -
Page 13: Storage
MOWER MAINTENANCE Storage cont - Change the engine oil. - Remove the engine spark plug and pour 15ml of engine oil into the engine cylinder and replace the spark plug. Do not exceed the stated volume of oil as engine damage may occur on re-starting. -
Page 14: Lawn Care Calendar
LAWN CARE CALENDAR To be used as a guide only January June October There is very little work to do this month apart from Summer mowing should now be under way. It should be Rake out the thatch from the turf and spike the lawn to brushing away leaves. -
Page 15: Trouble Shooting
TROUBLE SHOOTING PROBLEM CAUSES CORRECTIVE ACTION PROBLEM CAUSES CORRECTIVE ACTION Discharge chute blocks 1. Grass is wet 1. Mow dry grass 1. Engine stop lever released 1. Operate engine stop lever Engine will not turn 2. Cut height is too low 2. -
Page 16: Warranty Statement
Extended 3 Year Warranty To qualify for the extended warranty period (second and third year) of the three year limited warranty the machine must have an annual service carried out by an Authorised Hayter Service Dealer. These services should be carried out within 12 and 24 months of the date of purchase. Please note that these services will be charged at a rate agreed between you and the Authorised Service Dealer. -
Page 17: Eu Privacy Statement
Hayter dealer. Your personal information will be processed by Hayter in the UK. It will also be entered into the Toro warranty system, which is hosted on servers located within the United States where privacy law may not provide the same protection as applies in your country. -
Page 18: Notes
NOTES NOTES... - Page 19 NOTES NOTES...
-
Page 20: Service Record & Customer Info
1st Year (12 Months) 2nd Year (24 Months) We certify that this service has We certify that this service has been carried out by an been carried out by an Authorised Hayter Service Authorised Hayter Service Dealer Dealer Date:____________________ Date:____________________...
