Technical Data - GE GSS20 Series Technical Service Manual

DISCONNECT POWER CORD BEFORE SERVICING
IMPORTANT - RECONNECT ALL GROUNDING DEVICES
All parts of this appliance capable of conducting
electrical current are grounded. If grounding
wires, screws, straps, clips, nuts or washers used
to complete a path to ground are removed for
service, they must be returned to their original
position and properly fastened.
ELECTRICAL SPECIFICATIONS
Thermistor calibration:
kilo-ohm resistance ..........
Defrost Control .............................................. adaptive system
Overtemperature Thermostat ................................. 140-110°F
ELECTRICAL RATING
Maximum Current Leakage ...................................... 0.75 mA.
Maximum Ground Path Resistance ...................... 0.14 Ohms
NO LOAD PERFORMANCE
Control Position 5/5 and Ambient of 65°F - 90°F
Fresh Food, °F .................................................................. 34-41
Frozen Food, °F ............................................................... (-3) -3
Run Time, % @ 65 Ambient ......................................... 23-35%
Run Time, % @ 90 Ambient ......................................... 48-60%
REFRIGERATION SYSTEM
Refrigerant Charge (R134a) ................................. 4.25 ounces
Compressor ............................................................ 980 BTU/hr
Minimum Compressor Capacity ............................. 23 inches
Minimum Equalized Pressure
@ 70°F ...........................................................................55 PSIG
@ 90°F ...........................................................................63 PSIG

Technical Data

IMPORTANT SAFETY NOTICE
This information is intended for use by individuals
possessing adequate backgrounds of electrical,
electronic and mechanical experience. Any attempt
to repair a major appliance may result in personal
injury and property damage. The manufacturer or
seller cannot be responsible for the interpretation of
this information, nor can it assume any liability in
connection with its use.
@ 0°F 62.79
INSTALLATION
@ 37°F 24.48
Clearance must be provided for air circulation
@ 77°F 10.00
AT TOP ............................................................................................... 1"
AT SIDES ....................................................................................... 0.13"
AT REAR ............................................................................................. 1"

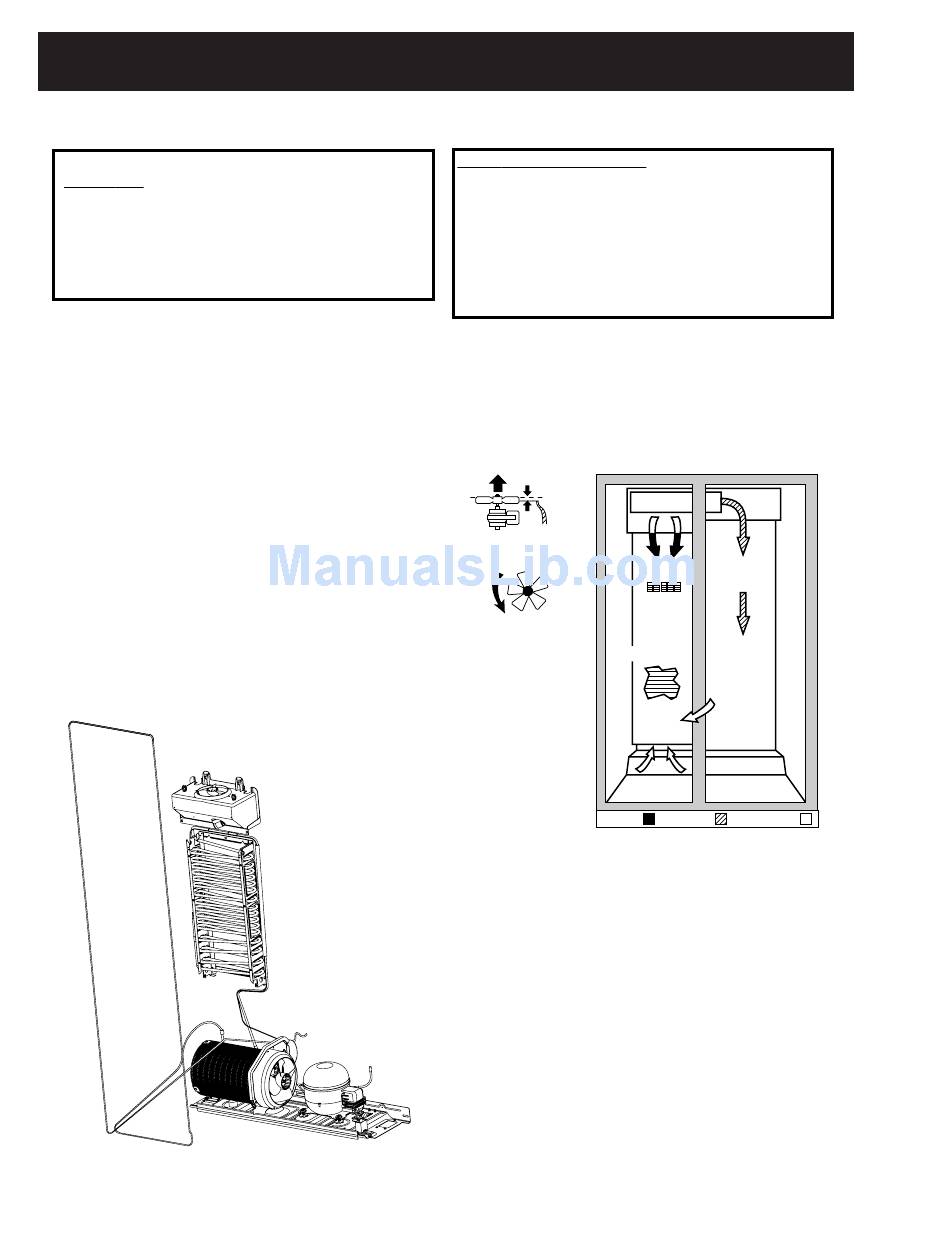

AIR FLOW
.110" Hub to Top
REPLACEMENT PARTS
FF Temp Control Housing ................................. WR55X10276
PTCR .................................................................... WR07X10009
Overload ............................................................. WR08X10028
Capacitor ............................................................... WR62X0080
Heater and Bracket Asm .................................... WR51X10055
Motor DC Condenser Fan .................................. WR60X10053
Motor DC Evaporator Fan ................................. WR60X10043
Board Asm Main Control .................................. WR55X10037
Compressor Replacement Kit ........................... WR87X10041
Sensor Temperature .......................................... WR50X10027
Overtemperature Thermostat ........................... WR50X10015
– 4 –
of Orifice
FREEZER
FRESH FOOD
EVAPORATOR
COLD AIR MIXED AIR WARMER AIR
