NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
MD PWR-8
Retain This
Manual for
Reference
08-27-05
OWNER'S
MANUAL
MARCY DIAMOND ELITE
POWER CAGE
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
MD PWR-8
IMPEX INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MARCY DIAMOND ELITE MD PWR-8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Impex MARCY DIAMOND ELITE MD PWR-8

Summary of Contents for Impex MARCY DIAMOND ELITE MD PWR-8

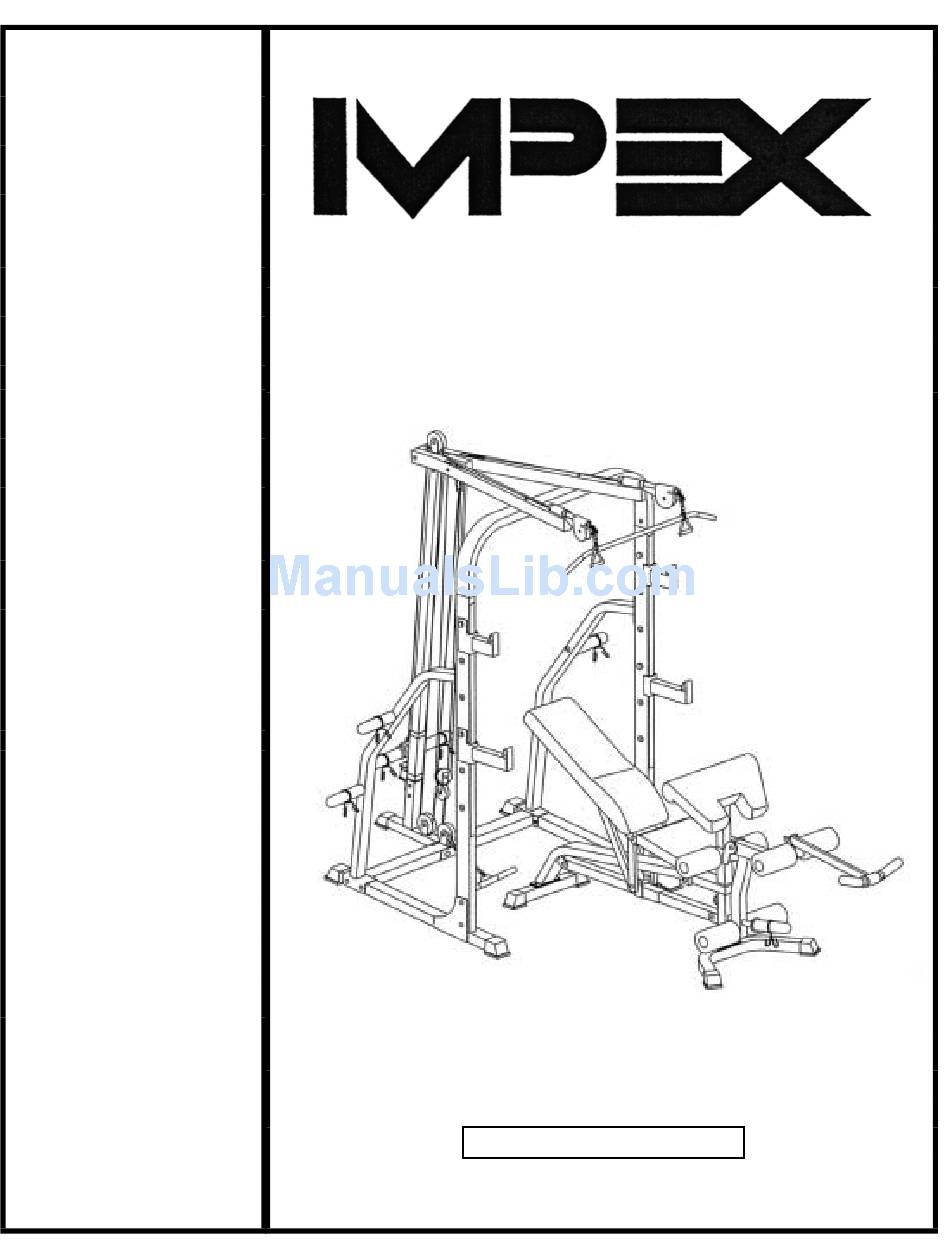

  • Page 1 Please read all instructions carefully before using this product Table of Contents Safety Notice Hardware Pack Assembly Instruction Parts List Warranty Ordering Parts Model MD PWR-8 Retain This Manual for Reference 08-27-05 OWNER'S MANUAL MARCY DIAMOND ELITE POWER CAGE MD PWR-8 IMPEX INC.

  • Page 2: Table Of Contents

    ORDERING PARTS...… 26 BEFORE YOU BEGIN Thank you for selecting the MARCY DIAMOND ELITE MD PWR-8 by IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. IMPEX FITNESS is committed to provide you complete customer satisfaction.

  • Page 3: Care And Maintenance

    PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

  • Page 4: Warning Label Replacement

    WARNING LABEL REPLACEMENT The warning labels shown here have been placed on the Rear Base and Upper Frame. If the labels are missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the labels in location shown.

  • Page 5: Cage Hardware Pack

    CAGE HARDWARE PACK...
  • Page 6 CAGE HARDWARE PACK...

  • Page 7: Cage Assembly Instructions

    CAGE ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended this machine be assembled by two or more people to avoid possible injury. STEP 1 (See Diagram 1) A.) Attach the Right Support (#5) to the Right Stabilizer (#1). Attach the Cross Brace (#3) to the Right Support.
  • Page 8 STEP 2 (See Diagram 2) A.) Attach an Upright Beam (#4) to the Right Stabilizer (#1) and the Right Support (#5). Secure the Upright Beam to the Right Stabilizer with two M10 x 2 3/8” Carriage Bolts (#52), one 5 ½”...
  • Page 9 STEP 3 (See Diagram 3) A.) Attach the Rear Stabilizer (#21) to the Cross Brace (#3). Secure it with two M10 x 3 ½” Carriage Bolts (#51), one 4 ¾” x 2” Bracket (#25), two Ø ¾” Washers (#64) and two M10 Aircraft Nuts (#66).
  • Page 10 STEP 4 (See Diagram 4) A.) Attach the Lat Bar Frame Bracket (#20) to the top of the Rear Vertical Frame (#7). Secure it with two M10 x 5/8” Allen Bolts (#61) and Ø ¾” Washers (#64). B.) Attach the Left & Right Lat Bar Frames (#10 & 9) to the Lat Bar Frame Bracket (#20). Secure them with two M10 x 5 1/4”...
  • Page 11 DIAGRAM 4...

  • Page 12: Cable Loop Diagram

    CABLE LOOP DIAGRAM...
  • Page 13 STEP 5 (See Diagram 5 & Cable Loop Diagram) A.) Attach the 283” Upper Cable (#48) to the swivel pulley pre-installed in the front of the Right Lat Bar Frame (#9). Install a Ball Stopper (#46) onto the end of the Cable. Attach the U-shaped Connector (#28) to the end of the Cable.
  • Page 14 DIAGRAM 5...
  • Page 15 STEP 6 (See Diagram 6 & Cable Loop Diagram) A.) Attach the Ball end of the 205” Lower Cable (#49) to a Pulley (#36). B.) Attach the Pulley to the open bracket on the Cross Brace (#3). Secure it with one M10 x 1 ¾”...
  • Page 16 DIAGRAM 6...

  • Page 17: Exploded Diagram

    EXPLODED DIAGRAM...

  • Page 18: Cage Parts List

    CAGE PARTS LIST KEY NO. DESCRIPTION Right Stabilizer Left Stabilizer Cross Brace Upright Beam Right Support Left Support Rear Vertical Frame Upper Frame Right Lat Bar Frame 10 Left Lat Bar Frame 11 Lat Bar 12 Chrome Panel 13 Sliding Weight Post 14 Olympic Sleeve 15 Olympic Weight Post 16 Right Bar Catch...

  • Page 19: Multi-Purpose Bench Hardware Pack

    MULTI-PURPOSE BENCH HARDWARE PACK...

  • Page 20: Multi-Purpose Bench Assembly Instructions

    MULTI-PURPOSE BENCH ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended this machine be assembled by two or more people to avoid possible injury. STEP 1 (See Diagram 1) A.) Attach the Main Frame (#1) to the Front & Rear Stabilizers (#2 & 3). Secure each end with two M10 x ¾”...
  • Page 21 STEP 2 (See Diagram 2) A.) Attach four Bushings (#26) to a Seat Support Frame (#6). B.) Attach a Backrest Support (#7) to the rear of the Seat Support Frame (#6). Align the holes and secure them with one M10 x 1 ¾” Allen Bolt (#36) and procedure to install the other side.
  • Page 22 STEP 3 (See Diagram 3) A.) Place the Backrest Board (#14) onto the Backrest Supports (#7). Secure it with four M8 x 2” Allen Bolts (#39) and B.) Place the Seat Pad (#13) onto the Seat Support Frames (#6). Secure it with four M8 x 2”...
  • Page 23 STEP 4 (See Diagram 4) A.) Attach the Leg Developer (#5) to the open bracket on the Main Frame (#1). Secure it with an Axle (#17), two M10 x ¾” Allen Bolts (#35), and two B.) Insert one Foam Tube (#10) halfway through the hole on the Main Frame. Insert two Foam Tubes halfway through the holes on the Leg Developer (#5).
  • Page 24 STEP 5 (See Diagram 5) A.) Attach the Arm Curl Pad (#15) to the Arm Curl Stand (#4). Secure it with two M8 x 5/8” Allen Bolts (#40) and two opening on the Main Frame (#1). Use the Lock Knob to hold the desired Arm Curl height. B.) Attach the Curl Bar Support Frame (#11) to the open bracket on the Leg Developer (#5).

  • Page 26: Multi-Purpose Bench Parts List

    MULTI-PURPOSE BENCH PARTS LIST KEY NO. DESCRIPTION Main Frame Front Stabilizer Rear Stabilizer Arm Curl Stand Leg Developer Seat Support Frame Backrest Support Sliding Block Incline Adjustment Bar Foam Tube Curl Bar Support Frame Curl Bar Handle Seat Pad Backrest Board Arm Curl Pad Curl Bar Handle Grip Axle...

  • Page 27: Warranty

    IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
