Dimplex Rectory REC20R Installation And Operating Instructions

Rectory Model: REC20R
Montana Model: MON20R

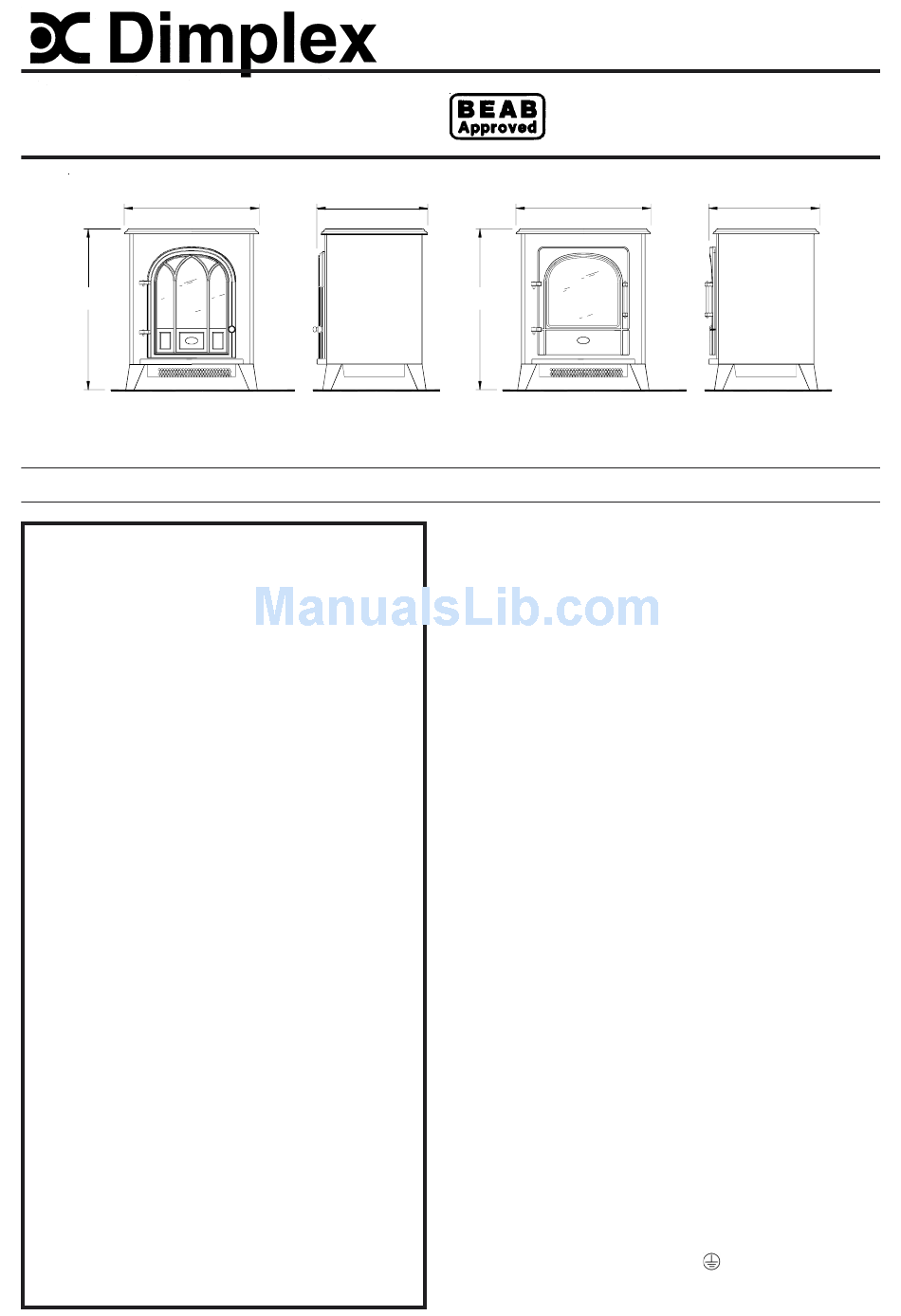

Dimensions
(millimetres)
540
665
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE.
mportant Safety Advice:
I
When using electrical appliances, Basic
precautions should always be followed to reduce
the risk of fire, electrical shock, and injury to
persons, including the following:
• • • • •
If the appliance is damaged, check with the
supplier before installation and operation.
• • • • •
Do not use outdoors.
• • • • •
Do not use in the immediate surroundings of
a bath, shower or swimming pool.
• • • • •
Do not locate the heater immediately below a
fixed socket outlet or connection box.
• • • • •
Do not cover the heater. Do not place material
or garments on the heater, or obstruct the air
circulation around the heater, for instance by
curtains or furniture, as this could cause
overheating and a fire risk.
• • • • •
Do not leave young children or the infirm
unsupervised in the vicinity of the heater.
• • • • •
Do not use this heater in series with a thermal
control, a program controller, a timer or any
other device that switches on the heat
automatically, since a fire risk exists when the
heater is accidentally covered or displaced.
• • • • •
Ensure that furniture, curtains or other
combustible material are positioned no closer
than 1 metre from the heater.
• • • • •
In the event of a fault unplug the heater.
• • • • •
Unplug the heater when not required for long
periods.
• • • • •
Although this heater complies with safety
standards, we do not recommend its use on
deep pile carpets or on long hair type of rugs.
• • • • •
The appliance must be positioned so that the
plug is accessible.
• • • • •
If the supply cord is damaged it must be
replaced by the manufacturer or service agent
or a similarly qualified person in order to avoid
a hazard.
• • • • •
Keep the supply cord away from the front of
the heater.
375
Rectory
REC20R

Installation and Operating Instructions

540
665
Montana

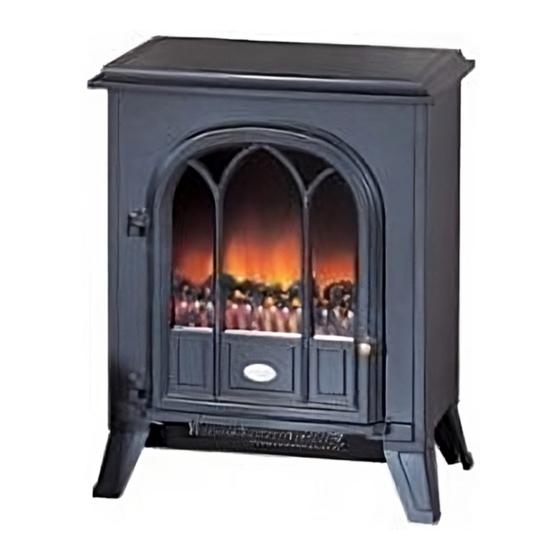

Introduction
These fires incorporate a flame effect, which can be used
with or without heating, so that the comforting effect may be
enjoyed at any time of the year. The flame effect is provided
by a low wattage motor and two 25 watt lamps. Using the
flame effect on its own, therefore, requires little electricity.
The manual controls are located behind the firebox door. The
remote control is packed separately in the carton. A Choice
of 1kw or 2kw thermostatically controlled heat output is pro-
vided by the fan heater, which is concealed beneath the unit.
These models are designed to be free standing and are nor-
mally positioned against a wall.
Please note: Used in an environment where background
noise is very low, it may be possible to hear the fan which
operates the flame effect. This is normal and should not
be a cause for concern.
Electrical connection
WARNING – THIS APPLIANCE MUST BE EARTHED
This heater must be used on an AC ~ supply only and the
voltage marked on the heater must correspond to the supply
voltage. This heater is fitted with a rewirable plug incorporat-
ing a 13 amp fuse. In the event of replacing the fuse in the
plug supplied, a 13 amp fuse approved by ASTA to BS 1362
must be used. If any other type of plug is used, a 15 amp fuse
must be fitted in the plug, the adaptor, or at the distribution
board.
IMPORTANT : If the plug is not suitable for your socket, the
13 amp plug should be removed. Before wiring the appropri-
ate plug, please note that the wires in this mains lead are
coloured in accordance with the following code :
GREEN AND YELLOW :
BLUE :
BROWN :
Connect the GREEN AND YELLOW wire to the terminal
marked 'E' or by the earth symbol
RED wire to the terminal marked 'L'. Connect the BLUE/
BLACK wire to the terminal marked 'N' .
08/18893/0 Issue 0
375
MON20R
Fig. 1
EARTH
NEUTRAL
LIVE
. Connect the BROWN/
