Model No. IMBE53901
Serial No.
Write the serial number in the
space above for reference.
Serial Number Decal (under seat)
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
you complete satisfaction
through direct assistance from
our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our customer hot line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before
using this equipment. Save this
manual for future reference.
USER'S MANUAL
Visit our website at
www.imagefitness.com
new products, prizes,
fitness tips, and much more!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMBE53901 and is the answer not in the manual?

Questions and answers

Related Manuals for Image IMBE53901

Summary of Contents for Image IMBE53901

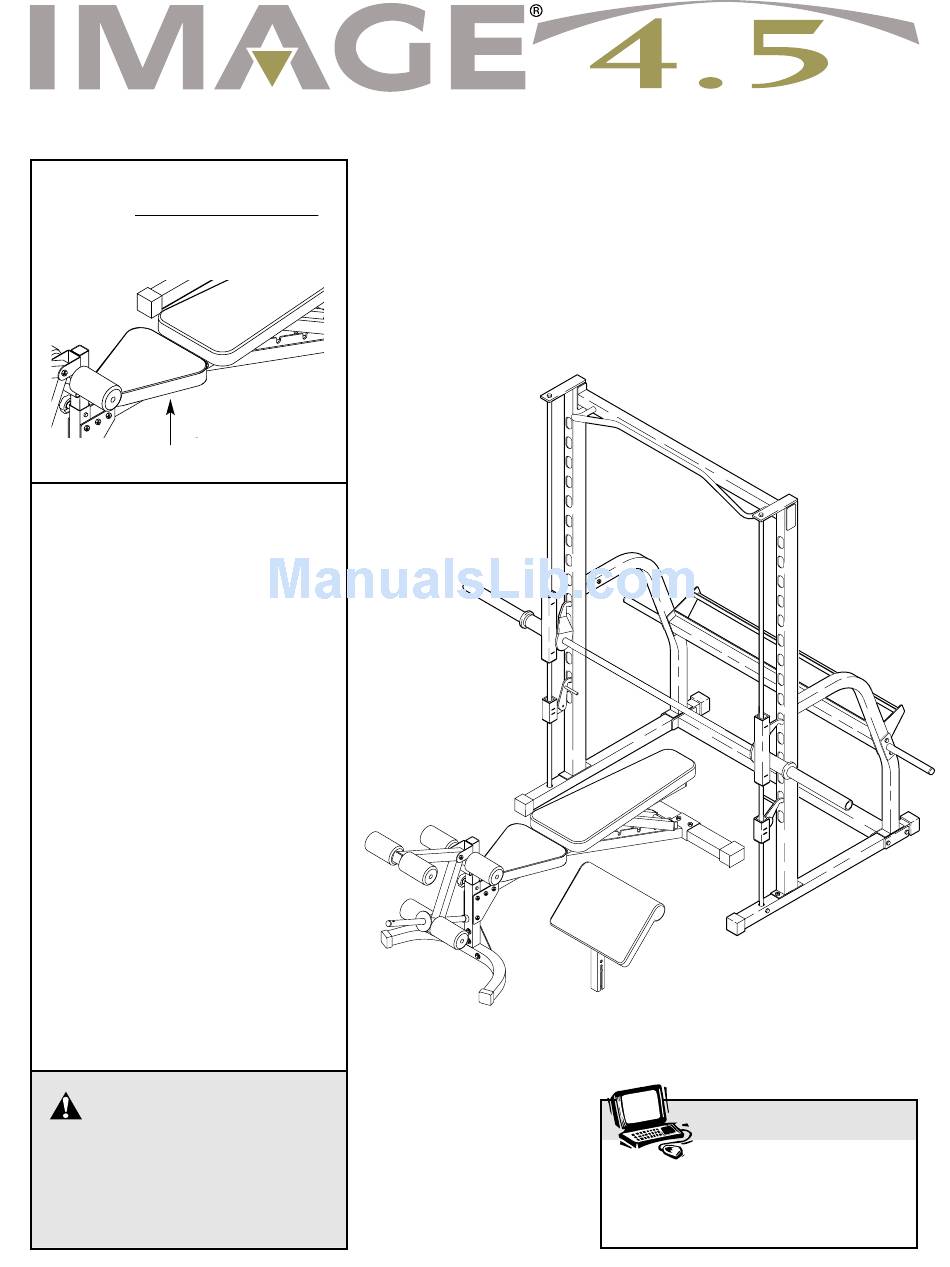

  • Page 1 Model No. IMBE53901 Serial No. Write the serial number in the space above for reference. Serial Number Decal (under seat) QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are...

  • Page 2: Table Of Contents

    Limited Warranty ............. . . Back Cover Note: A Part List/Exploded Drawing is attached in the center of this manual. Remove the Part List/Exploded Drawing before beginning assembly. IMAGE is a registered trademark of ICON Health & Fitness, Inc.

  • Page 3: Important Precautions

    Important Precautions WARNING: To reduce the risk of serious injury, read the following important precau- tions before using the weight bench. 1. Read all instructions in this manual before using the weight bench. Use the weight bench only as described in this manual. 2.

  • Page 4: Before You Begin

    To help us assist you, please note the product model number and serial number before calling. The model number is IMBE53901. The serial number can be found on a decal attached to the weight bench (see the front cover of this manual).

  • Page 5: Part Identification Chart

    Part Identification Chart—Model No. IMBE53901 Large Washer (70) M8 Washer (77) M10 Nylon Locknut (11) M8 x 60mm Bolt (65) M8 x 65mm Carriage Bolt (71) M10 x 65mm Carriage Bolt (66) M8 x 70mm Bolt (41) M10 Washer (6)

  • Page 6: Assembly

    Assembly Before beginning assembly, carefully read the following information and instructions: Make Things Easier for Yourself! This manual is designed to ensure that the weight bench can be assembled successfully by anyone. By setting aside plenty of time, and by deciding to make the task enjoyable, assembly will go smoothly.
  • Page 7 3. Slide a Brace (44) onto the bracket on one of the Uprights (43). Attach the Brace to the Upright with two M10 x 65mm Bolts (68), four M10 Washers (6), and two M10 Nylon Locknuts (11). Do not tighten the Nylon Locknuts yet.

  • Page 8: M10 Nylon

    6. Have a second person hold the Top Crossbar (48) so that the pull-up bar faces away from the rack, as shown. Attach the Top Crossbar (48) to the left Upright (43) with two M10 x 70mm Bolts (21), a Small Support Plate (51), and two M10 Nylon Locknuts (11).

  • Page 9: M8 Nylon

    9. Identify the Left Safety Spotter (57) by the position of the handle and the Left Spotter Hook (45). Place the Left Safety Spotter on the left Base (46) so it is cen- tered over the indicated hole. Have a second person hold the Locking Bar (62) so that the Left Weight Glider (60) rests on top of the Left Safety Spotter (57).
  • Page 10 12. Attach the upper end of one of the Weight Guides (53) to the bracket on the Upright (43) with an M8 x 30mm Bolt (64) and an M8 Washer (77). Attach the other Weight Guide (53) to the other Upright (43) in the same manner.
  • Page 11 16. Press two 25mm x 40mm Inner Caps (28) into each Backrest Tube (27). Press two 25mm x 40mm Inner Caps into the Backrest Adjustment Bracket (35). Lubricate an M10 x 190mm Bolt (22). Attach the Backrest Tubes (27) to the welded tube on the Backrest Adjustment Bracket (35) with the Bolt, two M10 Washers (6), and an M10 Nylon Locknut (11).
  • Page 12 20. Turn the Seat (14) as shown. Attach the wide end of the Seat to the bracket on the Seat Mounting Bracket (23) with two M6 x 16mm Screws (3). Tilt the Seat Mounting Bracket (23) upwards and attach the narrow end of the Seat (14) to the Seat Mounting Bracket with an M6 x 35mm Bolt (34) and an M6 Washer (30).

  • Page 13: Adjusting The Weight Bench

    24. Attach the Curl Pad (8) to the Curl Upright (9) with two M6 x 16mm Screws (3). 25. Make sure all parts are properly tightened before you use the weight bench. The use of all remaining parts will be explained in ADJUSTING THE WEIGHT BENCH starting on the following page.
  • Page 14 ATTACHING WEIGHTS TO THE BARBELL To use the Barbell (63), slide the desired amount of weight (not included) onto each end of the Barbell. Secure the weights with the Large Weight Clips (67). Note: To use standard weights, the Weight Adapters (61) should be removed from the Barbell.

  • Page 15: Adjusting The Seat

    ADJUSTING THE SEAT To raise the Seat (14), lift the narrow end of the Seat until the appropriate tab on the Seat Adjustment Bracket (36) engages the welded pin (not shown) on the right side of the Bench Frame (5). To lower the Seat (14), use the handle on the Seat Adjustment Bracket (36) to disengage the Seat Adjustment Bracket from the pin on the right side of the...

  • Page 16: Ordering Replacement Parts

    Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be pre- pared to give the following information when calling: • The MODEL NUMBER of the product (IMBE53901) • The NAME of the product (IMAGE •...
  • Page 17 REMOVE THIS PART LIST/EXPLODED DRAWING FROM THE MANUAL SAVE THIS PART LIST/EXPLODED DRAWING AND THE USER’S MANUAL FOR FUTURE REFERENCE...

  • Page 18: M10 X 25Mm Button Head

    Part List—Model No. IMBE53901 Key No. Qty. Description Bench Leg Adjustable Bench Leg M6 x 16mm Screw M6 x 55mm Screw Bench Frame M10 Washer Bench Base Curl Pad Curl Upright 50mm x 70mm Outer Cap M10 Nylon Locknut M10 x 60mm Button Head Bolt...
  • Page 19 Exploded Drawing—Model No. IMBE53901 R1200A...
