Image IMBE53901 User Manual page 7

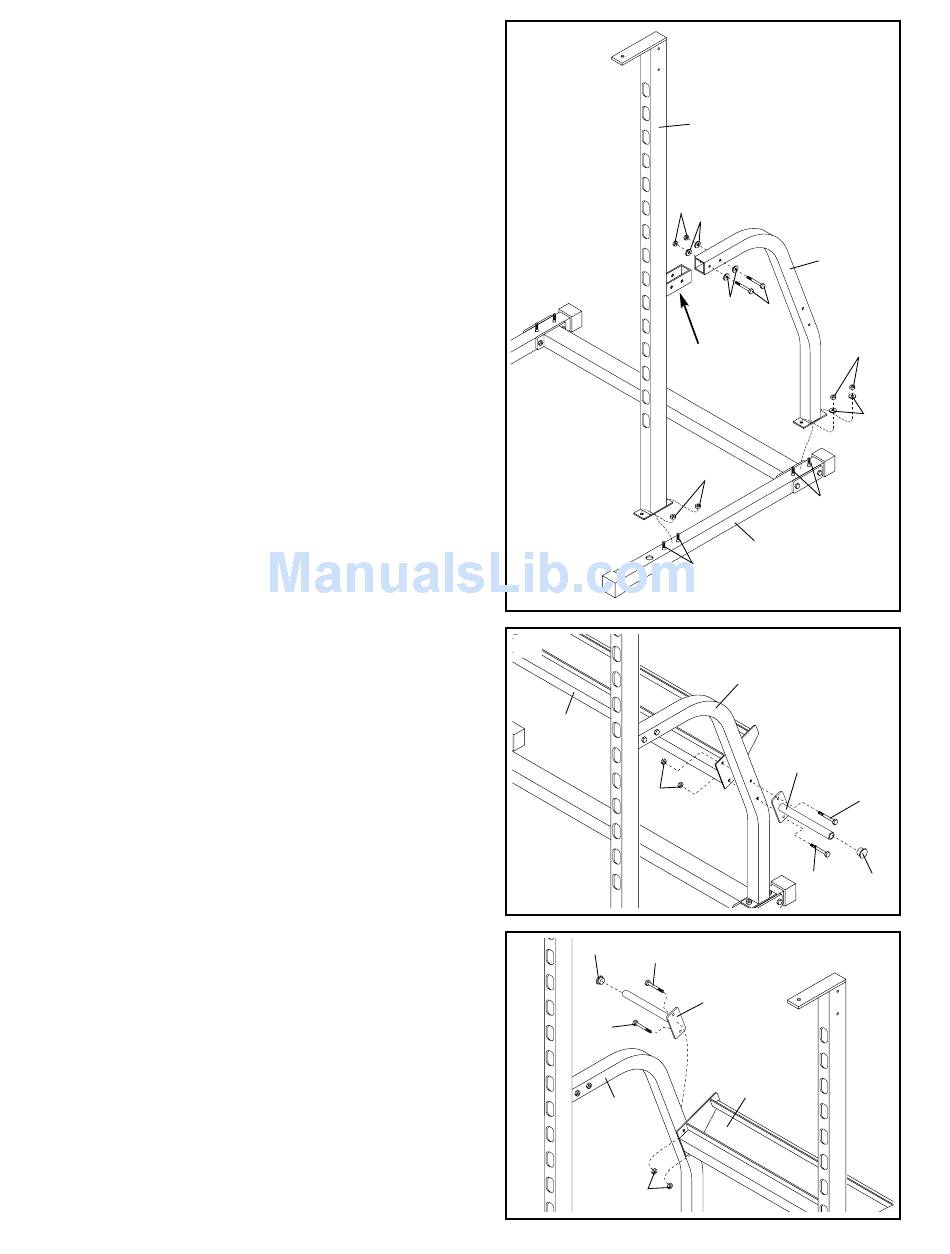

3. Slide a Brace (44) onto the bracket on one of the
Uprights (43). Attach the Brace to the Upright with
two M10 x 65mm Bolts (68), four M10 Washers (6),
and two M10 Nylon Locknuts (11). Do not tighten
the Nylon Locknuts yet.
Slide the Upright (43) and the Brace (44) onto the
M10 x 65mm Carriage Bolts (66) and the M8 x 65mm
Carriage Bolts (71) in the left Base (46). Attach the
Upright with two M10 Nylon Locknuts (11). Attach the
Brace with two M8 Washers (77) and two M8 Nylon
Locknuts (42). Do not tighten the Nylon Locknuts
yet.
Repeat this step on the right Base (46) with the other
Upright (43) and Brace (44).
4. Press a 25mm Round Inner Cap (39) into the end of
a Weight Storage Tube (55).
While a second person holds the Middle Crossbar
(47) in the position shown, insert two M10 x 70mm
Bolts (21) through the bracket on the Weight Storage
Tube (55), the left Brace (44), and the bracket on the
Middle Crossbar. Thread an M10 Nylon Locknut (11)
onto each Bolt. Do not tighten the Nylon Locknuts
yet.
5. Press a 25mm Round Inner Cap (39) into the end of
the other Weight Storage Tube (55).
While a second person continues to hold the Middle
Crossbar (47), insert two M10 x 70mm Bolts (21)
through the bracket on the Weight Storage Tube (55),
the right Brace (44), and the bracket on the Middle
Crossbar. Thread an M10 Nylon Locknut (11) onto
each Bolt. Do not tighten the Nylon Locknuts yet.
3
4
47
11
39
5
21
21
44
11
7
43
11
6
44
6
68
42
Bracket
11
71
46
66
44
55
21
55
47
77
21
39
