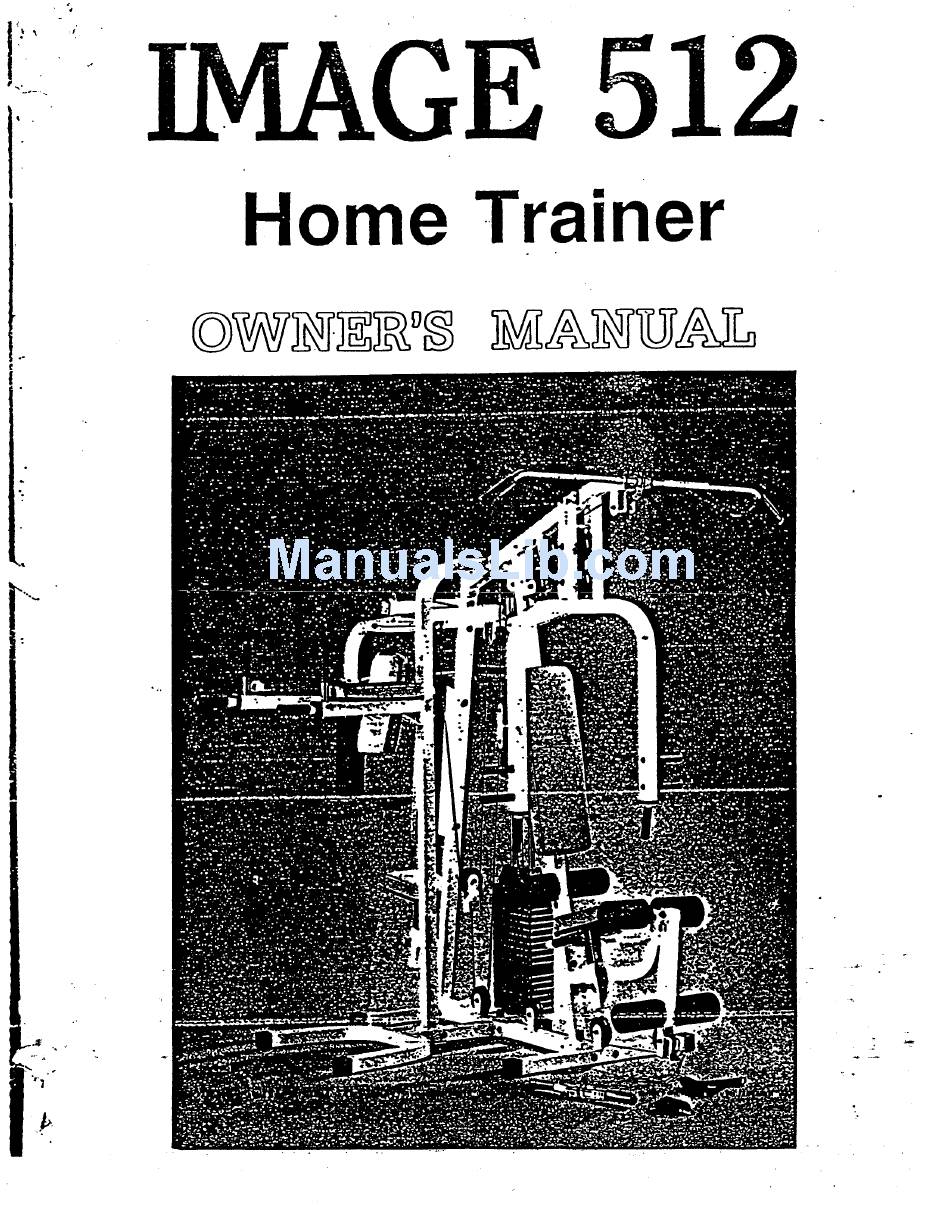

Image 512 Home Trainer Manual

Here is a detailed guide to replace the pulley cable on the IMAGE 512 Home Trainer:

1. Unplug the Equipment: Always unplug the machine before starting any repairs.

2. Remove the Protective Covers: Use a screwdriver to remove any covers or shrouds that protect the pulleys and cables.

3. Inspect the Cable Path: Follow the existing cable route carefully, noting how it is threaded through pulleys and attached to components.

4. Detach the Cable Ends:
- Locate the cable ends attached to handles, weight plates, or other parts.
- Use wrenches or pliers to remove bolts, nuts, or clips securing the cable.

5. Remove the Old Cable:
- Pull the old cable out of the pulley system carefully.
- Check pulleys for wear and replace any damaged parts if necessary.

6. Prepare the New Cable:
- Lay out the new cable and compare it to the old one to ensure correct length and type.
- Attach any necessary hardware (like stops or hooks) to the new cable if not pre-installed.

7. Thread the New Cable:
- Carefully thread the new cable through the pulleys following the same path as the old cable.
- Ensure the cable sits correctly in the pulley grooves.

8. Secure the Cable Ends:
- Attach the ends to the appropriate components using bolts, nuts, or clips.
- Tighten securely but avoid over-tightening to prevent damage.

9. Test the Cable:
- Slowly operate the trainer to ensure smooth movement.
- Check for proper tension and adjust if necessary.

10. Reattach Covers:
- Replace all protective covers and secure them properly.

11. Final Check:
- Double-check all connections and test the machine under light use before returning to normal operation.

Always refer to the specific assembly diagram of the IMAGE 512 Home Trainer if available.
