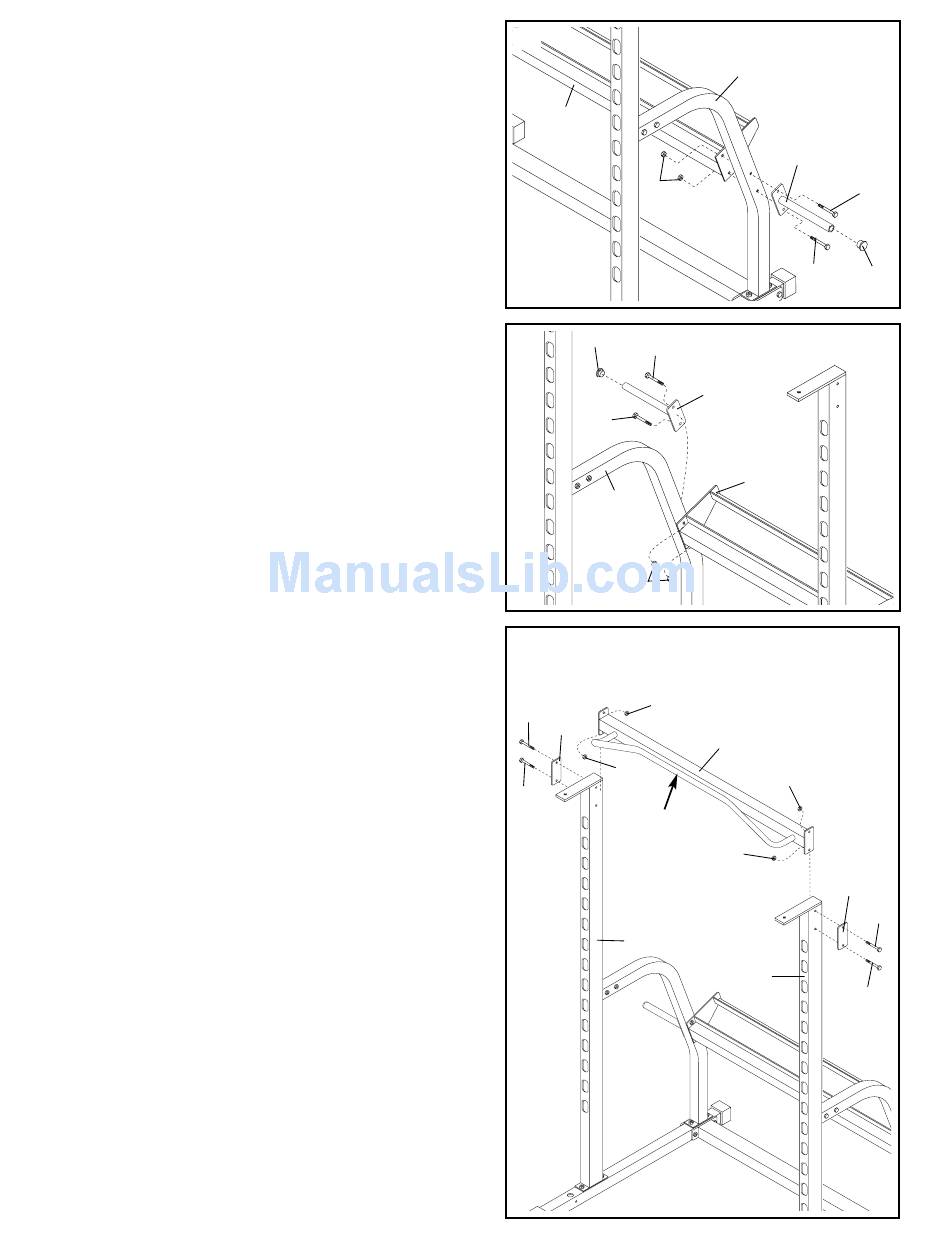

5. Press a 25mm Round Inner Cap (51) into the end of
a Weight Storage Tube (21).
While a second person holds the Middle Crossbar (8)
in the position shown, insert two M10 x 70mm Bolts
(46) through the bracket on the Weight Storage Tube
(21), the left Brace (2), and the bracket on the Middle
Crossbar. Thread an M10 Nylon Locknut (11) onto
each Bolt. Do not tighten the Nylon Locknuts yet.
6. Press a 25mm Round Inner Cap (51) into the end of
the other Weight Storage Tube (21).
While a second person continues to hold the Middle
Crossbar (8), insert two M10 x 70mm Bolts (46)
through the bracket on the Weight Storage Tube (21),
the right Brace (2), and the bracket on the Middle
Crossbar. Thread an M10 Nylon Locknut (11) onto
each Bolt. Do not tighten the Nylon Locknuts yet.
7. Have a second person hold the Top Crossbar (9) in
the position shown.
Attach the Top Crossbar (9) to the left Upright (1) with
two M10 x 70mm Bolts (46), a Small Support Plate
(16), and two M10 Nylon Locknuts (11). Do not tight-
en the Nylon Locknuts yet.
Attach the Top Crossbar (9) to the right Upright (1)
with two M10 x 70mm Bolts (46), a Small Support
Plate (16), and two M10 Nylon Locknuts (11). Do not
tighten the Nylon Locknuts yet.
