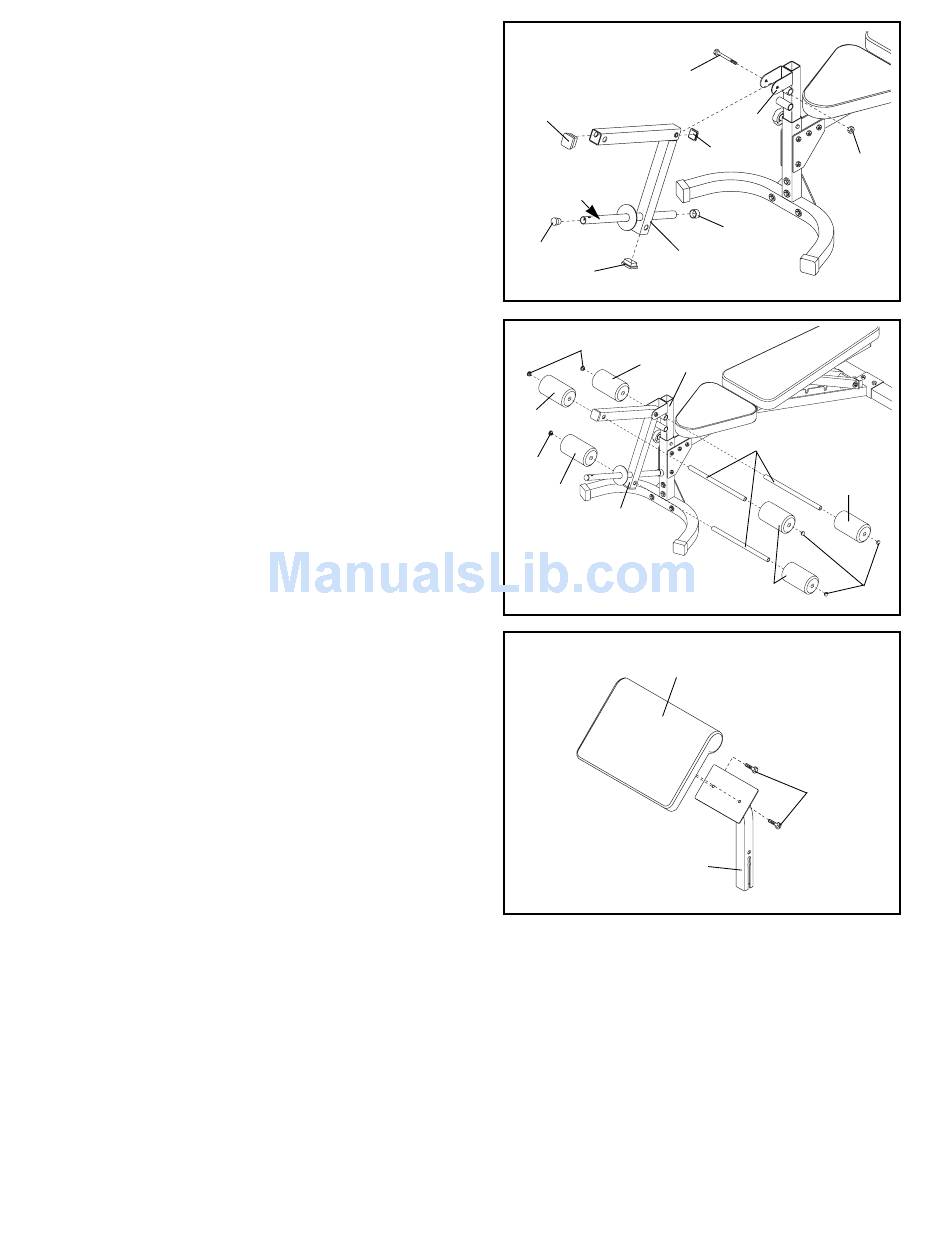

11. Insert three 45mm Square Inner Caps (40) into the
ends of the Leg Lever (17). Insert a 25mm Round
Inner Cap (39) into the weight tube on the Leg Lever.
Press a 25mm Angled Outer Cap (38) onto the other
end of the weight tube.
Attach the Leg Lever (17) to the Adjustable Bench
Leg (2) with an M10 x 70mm Bolt (21) and an M10
Nylon Locknut (11). Note: Do not over tighten the
M10 Nylon Locknut; the Leg Lever must pivot
easily.
12. Insert 19mm Round Inner Caps (26) into the ends of
the three Pad Tubes (16).
Insert two Pad Tubes (16) through the holes in the
Leg Lever (17). Slide a Foam Pad (25) onto each
side of the Pad Tubes.
Insert a Pad Tube (16) through the upper tube on the
Adjustable Bench Leg (2). Slide a Foam Pad (25)
onto each side of the Pad Tube.
13. Attach the Curl Pad (8) to the Curl Upright (9) with two
M6 x 16mm Screws (3).
14. Make sure all parts are properly tightened before
you use the weight bench. The use of the remain-
ing parts will be explained in ADJUSTING THE
WEIGHT BENCH on pages 13 and 14 of this
manual.
11
40
Weight
Tube
39
40
12
26
25
25
26
25
17
13
9
21
2
40
38
17
2
16
25
25
8
3
9
11
26
