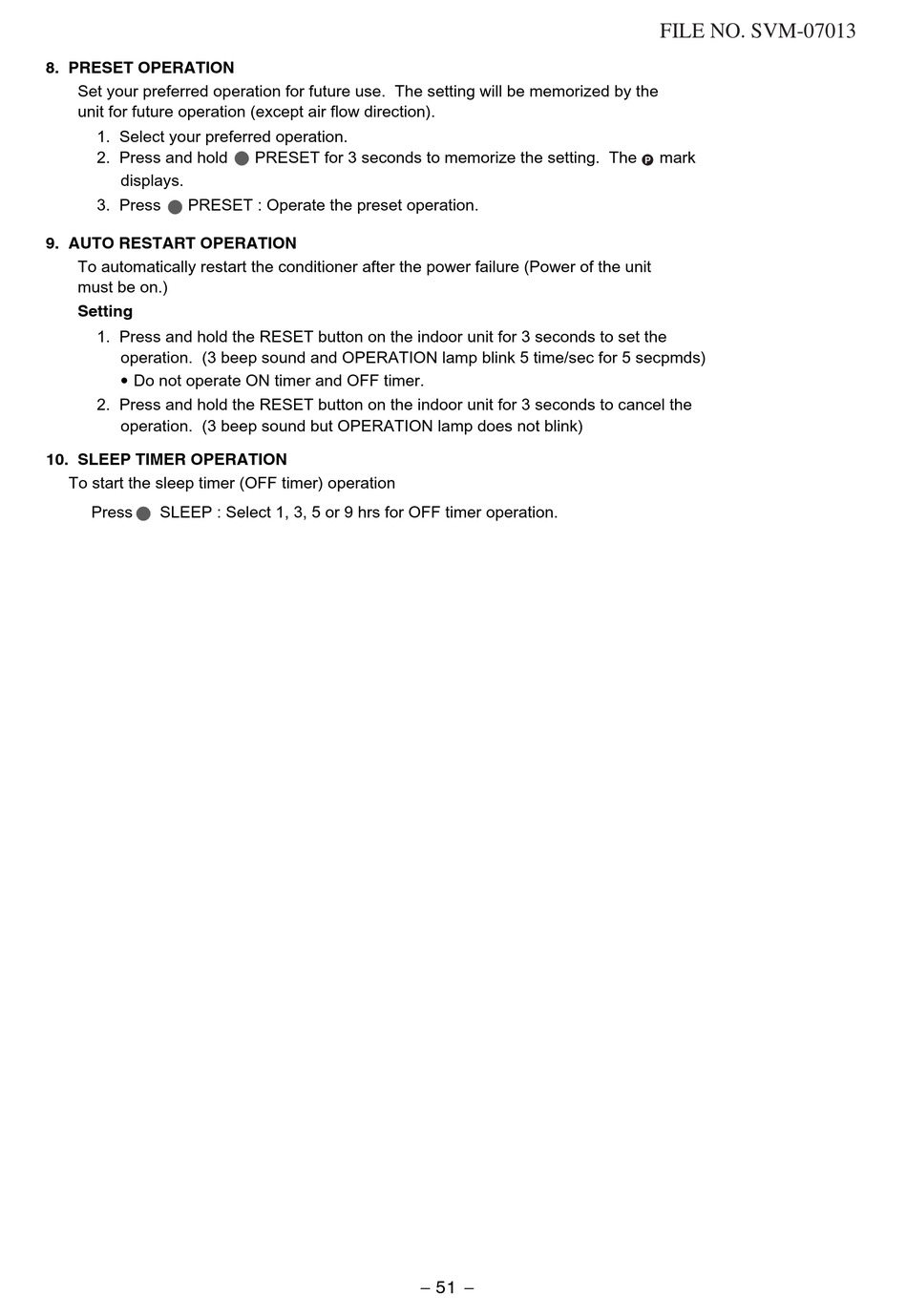

Carrier 42NQV025H Service Manual page 51

8. PRESET OPERATION
Set your preferred operation for future use. The setting will be memorized by the
unit for future operation (except air flow direction).
1. Select your preferred operation.
2. Press and hold
displays.
3. Press PRESET : Operate the preset operation.
9. AUTO RESTART OPERATION
To automatically restart the conditioner after the power failure (Power of the unit
must be on.)
Setting
1. Press and hold the RESET button on the indoor unit for 3 seconds to set the
operation. (3 beep sound and OPERATION lamp blink 5 time/sec for 5 secpmds)
• Do not operate ON timer and OFF timer.
2. Press and hold the RESET button on the indoor unit for 3 seconds to cancel the
operation. (3 beep sound but OPERATION lamp does not blink)
10. SLEEP TIMER OPERATION
To start the sleep timer (OFF timer) operation
Press SLEEP : Select 1, 3, 5 or 9 hrs for OFF timer operation.
PRESET for 3 seconds to memorize the setting. The
− 51 −
FILE NO. SVM-07013
mark
P
