User Manual
VS-0116
Read this guide thoroughly and follow the installation and operation
procedures carefully in order to prevent any damage to the units and/or
any devices that connect to them.
This package contains:

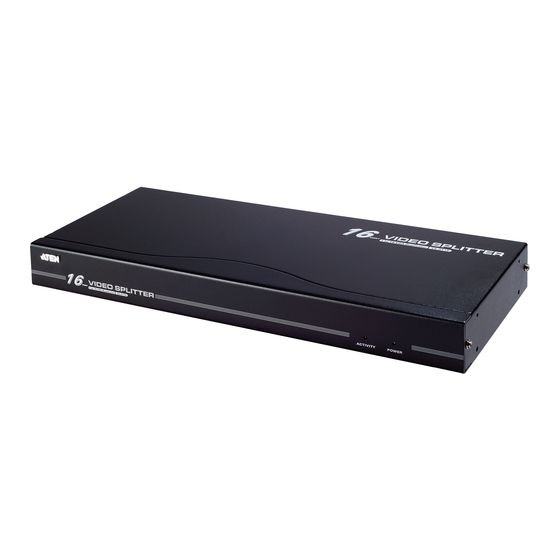

1 VS-0116 16 Port Video Splitter with Audio
1 VGA/Audio Cable (1.8m)
1 Power Adapter
1 Rack Mount Kit
1 Quick Start Guide
1 User Manual
If anything is damaged or missing, contact your dealer.
Copyright
2006 ATEN
©
Manual Part No. PAPE-1277-100G
Printing Date: 03/2006
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights
reserved. All other trademarks are the property of their respective owners.
®
International Co., Ltd.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ATEN VS-0116
Summary of Contents for ATEN VS-0116
- Page 1 ® Copyright 2006 ATEN International Co., Ltd. © Manual Part No. PAPE-1277-100G Printing Date: 03/2006 ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners.
- Page 2 Note: This is an FCC Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
- Page 3 Overview The VS-0116 16 Port Video Splitter with Audio duplicates the video and audio signals from an input source (i.e. a computer) and routes them to up to 16 output devices (monitors, projectors, etc.). Furthermore, it can be cascaded to additional ATEN video splitters to support thousands of monitors.
- Page 4 Features Supports up to 250 MHz bandwidth High resolution video—1920x1440@60Hz Supports VGA, SVGA, XGA, SXGA, and Multisync video cards and monitors Supports DDC, DDC2, DDC2B (Port 1 only) Stereo audio support Maintains high video resolution over long distances Duplicates and enhances video signals up to 65m (max.) Cascades 3 levels to support thousands of monitors Adjustable video gain ensures high quality video Hot pluggable...
-
Page 5: System Requirements
SXGA, and Multisync monitors. They are neither suitable for CGA and EGA monitors nor should they be used with MONO type monitors that use digital video signals. 3. For best video quality, we recommend using ATEN brand video cables. - 5 -... - Page 6 VS-0116 Front View Description Function Activity LED Lights to indicate that the unit is in use. Power LED Lights to indicate that the unit is receiving power. - 6 -...
- Page 7 VS-0116 Rear View Description Function Cable Tie Slot Attach a cable tie here to fasten the cables. Video Gain Switch Low, Medium, and High settings provide fine tuning of the VGA video signal quality. Video / Audio Output The video and audio cables from the monitors Ports and speakers plug into any available ports.*...
-
Page 8: Hardware Installation
Note: Repeat steps 3 and 4 for any additional monitor(s) and speakers that you wish to connect. 5. Plug the power adapter that came with the VS-0116 into an AC power source, then plug the power adapter cable into the splitter’s Power Jack. - Page 9 Single Stage Installation Diagram: - 9 -...
- Page 10 Note: Repeat steps 3 and 4 for any additional monitor(s) and speakers that you wish to connect. 5. Plug the power adapter(s) that came with the VS-0116(s) into an appropriate AC power source, then plug the power adapter cable(s) into the Video Splitter’s power jack(s).
- Page 11 Cascaded Installation Diagram: - 11 -...
-
Page 12: Specifications
Specifications Model VS-0116 Connection Computer Monitors Connectors Input 1 x HDB-15 (male) 1 x 3.5mm Mini Stereo Jack (female) Output 16 x HDB-15 (female) 16 x 3.5mm Mini Stereo Jack (female) Power DC Jack LEDs Activity 1 (green) Power 1 (blue) -
Page 13: Vga Pin Assignments
Vertical Sync Ground Ground Getting Help If you need to contact ATEN technical support with a problem, visit our website at www.aten.com. Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION.
