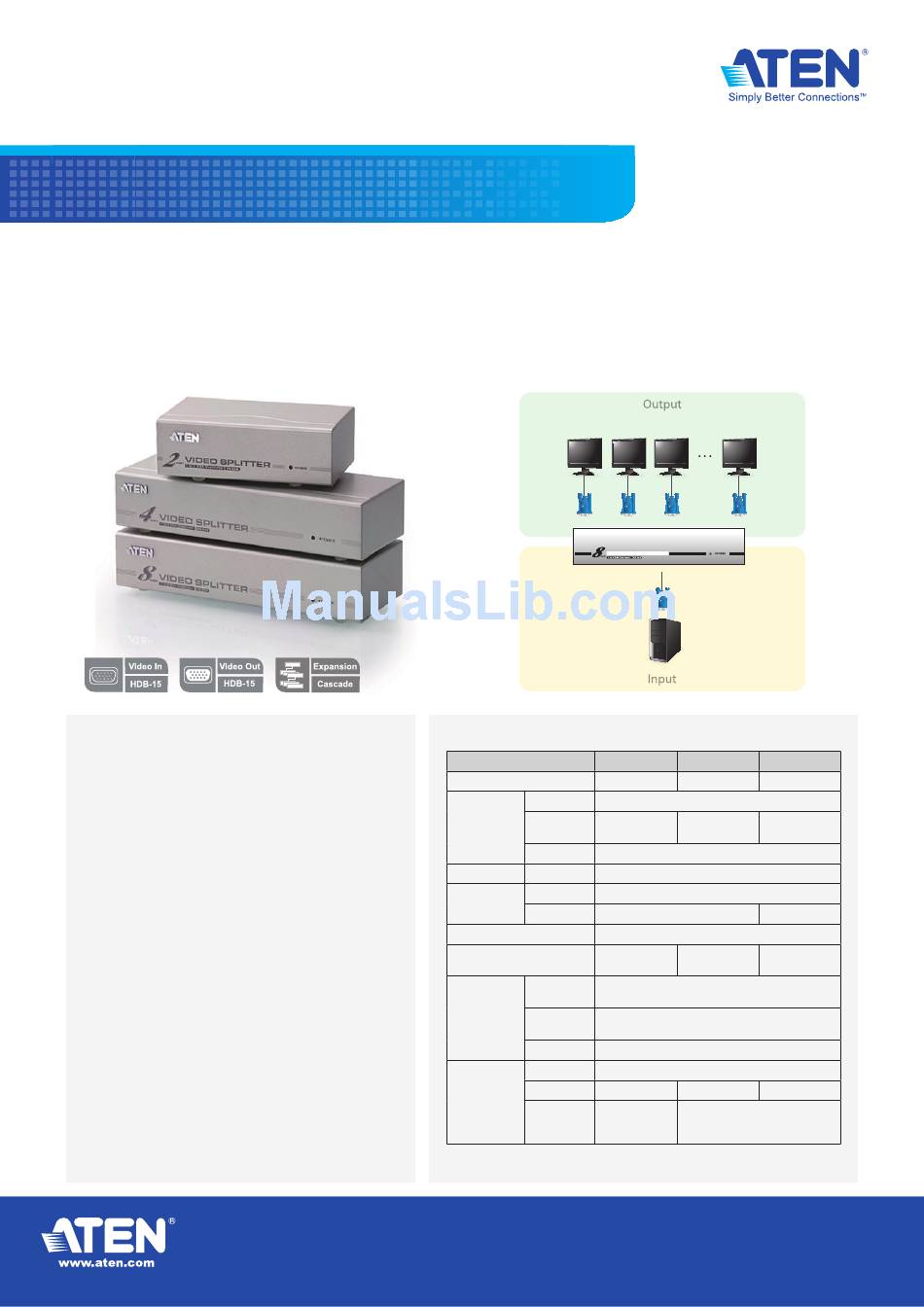

ATEN VS92A Specifications

VS92A/VS94A/VS98A
2/4/8-Port Video Splitter
The VS92A/VS94A/VS98A is a video splitter that not only duplicates the video signal from any VGA, XGA,
SVGA, UXGA, or multisync monitor to two, four, or eight outputs, but also boosts the video signal over
a distance of up to 65 meters. Cascadable to support up to 8/64/512 displays, and offering bandwidth up
to 350 MHz, the VS92A/VS94A/VS98A is ideal for broadcasting and enhancing video information to the
public, monitoring your work environments from safe locations, or offering superior video for company or
classroom training.
Features
- - - - - - - - - - - - - - - - - - - - - - - - - - -
• One video input to 2/4/8 video outputs
• Cascadable to 3 levels – provides up to 8/64/512
video signals
• Supports 350 MHz bandwidth(VS92A/VS94A),
300MHz bandwidth(VS98A)
• Long-distance transmission – up to 65 m
• Superior video quality – 1920 x 1440@60Hz
• DDC, DDC2, DDC2B Compatible (Port 1 only)
• Supports VGA, XGA, SVGA, UXGA,WUXGA and
multisync monitors
• All metal casing
Headquarters
ATEN International Co., Ltd.
3F, No.125, Sec. 2, Datung Rd. Sijhih City, Taipei 221, Taiwan
Tel: 886-2-8692-6789
© Copyright 2009 ATEN® International Co., Ltd. All brand names and trademarks are the registered property of their respective owners.
Setup
Specifications
Display Connections
Connectors
LEDs
Video
Signal Range
Power Consumption
Environment
Physical
Properties
* Display connections in three-level cascade
Fax: 886-2-8692-6767 E-mail: online@aten.com.tw
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Monitor 1 Monitor 2 Monitor 3
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Function VS92A
2 / 8*
Video In
2 x HDB-15
Video Out
Female
Power
Power
Resolution 1920 x 1440 @ 60 Hz
Bandwidth 350 MHz
DC9V, 1.24W DC9V, 2.03W DC9V,3.94W
Operating
Temp.
Storage
Temp.
Humidity 0–80% RH, Non-condensing
Housing
Weight 0.42 kg
Dimensions 13.00 x 7.50
(L x W x H) x 4.50 cm
Monitor 8
VS98A
VS94A VS98A
4 / 64* 8 / 512*
1 x HDB-15 Male
4 x HDB-15 8 x HDB-15
Female Female
1 x DC Jack
1 (Orange)
300 MHz
65 m
0–50°C
-20–60°C
Metal
0.61 kg 0.69 kg
20.00 x 7.50 x 4.50 cm
2009. Version 2.0
