Summary of Contents for ATEN VS-84

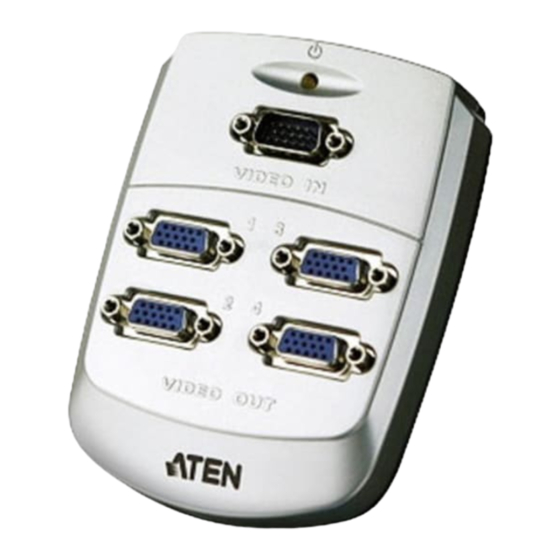

- Page 1 Video Splitter USER MANUAL VS-82 / VS-84 / VS-88...
-
Page 2: Fcc Information
FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. -
Page 3: Online Registration
VS-82 / VS-84 / VS-88 User Manual Online Registration International http://support.aten.com North America http://www.aten-usa.com/product_registration Telephone Support International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5323-7178 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 United Kingdom 44-8448-158923 Technical Support For international online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com... -
Page 4: Package Contents
* Features may have been added to the VS-82 / VS-84 / VS-88 since this manual was printed. Please visit our website to download the most up to date version of the manual. - Page 5 These video splitters are boosting devices that duplicate the video signal from any analog monitor source to two (VS-82); four (VS-84); or eight (VS-88) outputs. They provide fast and flexible solutions for situations such as: 1. Broadcasting video information (news headlines, stock prices, airline and train schedules, etc.), to the public...
- Page 6 Features Enhances video signal for distances up to 65 m (213') Supports DDC, DDC2, DDC2B (port 1 only) Cascadable to 3 levels Small form factor Ideal for public broadcasting, remote monitoring, and classroom and training facilities Note: 1. These products are designed for VGA, SVGA, and Multisync monitors.
-
Page 7: Top View
1, all other monitors must be able to support the highest resolution that the DDC monitor can provide. 2. The diagrams in this manual are for a VS-84. The VS-82 and VS-88 have two and eight ports respectively, instead of the four Video Out ports shown. -
Page 8: Rear View
Rear View Component Description Power Jack The cable from the Power Adapter plugs in here. - 8 -... -
Page 9: Single Stage Installation
Installation Make sure that all devices you will be connecting up are properly grounded. Single Stage Installation In a Single Stage installation no additional Video Splitters are cascaded down from the first unit. To set up a single stage installation, do the following: 1. - Page 10 Cascading To provide video display for more monitors, additional Video Splitters can be cascaded. Use a high density HDB-15 male/ female VGA cable (Part No. 2L-2401), to connect any available Video Out port on the higher level Video Splitter to the Video In port of the lower level Video Splitter.
-
Page 11: Specifications
Specifications Function VS-82 VS-84 VS-88 Display Connections Connectors Video In 1 x HDB-15 Male (Blue) Video Out 2 x HDB-15 4 x HDB-15 8 x HDB-15 Female (Blue) Female (Blue) Female (Blue) Power 1 x DC Jack LEDs Power 1 (Orange) -
Page 12: Limited Warranty
Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and specially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
