CAUTION: At least two installers are
required due to the weight and size of the
hood.

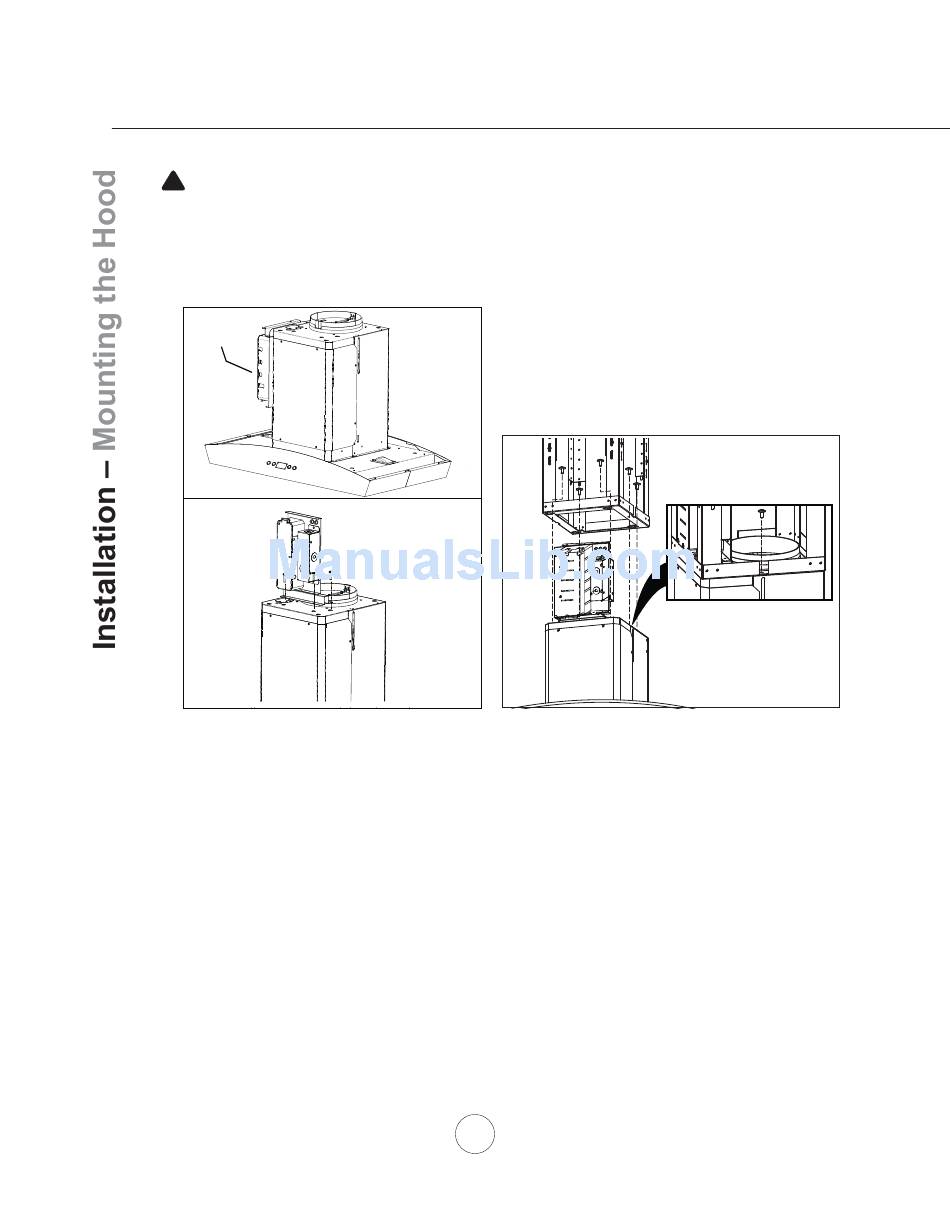

ELECTRONICS
MOUNTING
BRACKET
FIG. D
5. Remove tape securing electronics mounting bracket to hood. (FIG. D, #1) Remove (3) screws from top of hood
body and set screws aside. Position electronics mounting bracket as show in (FIG. D, #2) and secure to hood body
using the (3) previously removed screws.
6. Lift hood body and align the (4) pre-installed mounting screws on top of blower housing (FIG. A, #5 on Page 9) with
the (4) key holes on the bottom of the support frame. (FIG. F) Slide hood towards the narrow end of key holes to lock
in place. Hand tighten each of the (4) screws to secure hood to bottom of support frame. Install (1) M4 x 12mm safety
screw into bottom support frame to further secure the hood. (FIG. F, #1)
7. Install electrical and duct work. Seal duct work with aluminum duct tape.
8. Power up hood, verify all functions and check for leaks around duct tape.
www.zephyronline.com
1
2
10
1
FIG. F
