▶ Thank you for purchasing this Airrex Portable Air Conditioner.
Please read the instructions thoroughly before operating.
▶ After reading the instructions, please keep them in
a safe place accessible to all users.
▶ Ensure you read the 'safety precautions' in advance and
use the product correctly.
▶ The product is specified for use with a power supply
of 115v ~, 60Hz.
▶ This manual includes the product warranty.
▶ Specifications and contents of this manual may be changed
without prior notice, in accordance with our commitment
to product quality improvement, design and control.
Portable Air Conditioner
U U s s e e r r ' ' s s M M a a n n u u a a l l
HSC-11
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Airrex HSC-11
Summary of Contents for Airrex HSC-11
- Page 1 U U s s e e r r ' ' s s M M a a n n u u a a l l ▶ Thank you for purchasing this Airrex Portable Air Conditioner. Please read the instructions thoroughly before operating.
- Page 2 CONTENS ■ Safety Precaution ■ Flexible Duct Assembly ■ Machine overview ■ How to use ■ Self-Diagnosis ■ Precautions for Installation ■ Specifications...
-
Page 3: Explanation Of Symbols
These precautions are designed to facilitate safe operation and prevent unit damage. ● There are two classifications of safety precaution listed in the box below. Possiblity of death or severe injury in the event of mishandling. Possiblity of injury and /or material damage in the event of mishandling. ※... - Page 4 WARNING Ensure both plug and socket Ensure you hold the power Do not overload the is clean and free from dust plug properly when either dedicated power socket when using. plugging in or unplugging. with other equipment. In lightening storms, turn off Never spray water directly Never use with a damaged the unit and disconnect from...
- Page 5 <HSC-11H > WARNING Never place combustible Do not place the heater Do not install, use or place objects on the product such close to the electric socket any combustible liquids or as vinyl and plastic items. (risk of fire) gases near the product. (can cause a risk of fire) (risk of fire or explosion) Never place the unit near...
- Page 6 CAUTION Prevent water from entering the inside of Do not use the unit for a long time in air tight spaces the air conditioner. where there are infants, the elderly or infirm. (There is a risk of electric shock) (Open the window frequently for ventilation) Do not allow direct air flow onto people, animals or Do not use the unit for other purposes other than for plants.
- Page 7 CAUTION When in use, do not lean the unit more than 2° . Clean and handle the unit only when unplugged from mains supply and the fan has stopped rotating. (Beware electric shock) For repair or service contact the company from which In the event of any strange sounds, the unit was purchased or nearest service centre.
- Page 8 <HSC-11H> CAUTION Keep heater away from other electric Install the product at places that are visible to domestic appliances people. (frequently observe the product for (They could get damaged due to safety) high heat) Always leave a clear space of at least Install the product at places where users 20cm from the left, right and rear panels always reside and be sure to equip fire...
- Page 9 1. Check the mark of top cover and the hole of duct elbow. 2. Fix the mark and the hole. 3. After insert duct as abobe picture and turn the flxible duct direction to the front.

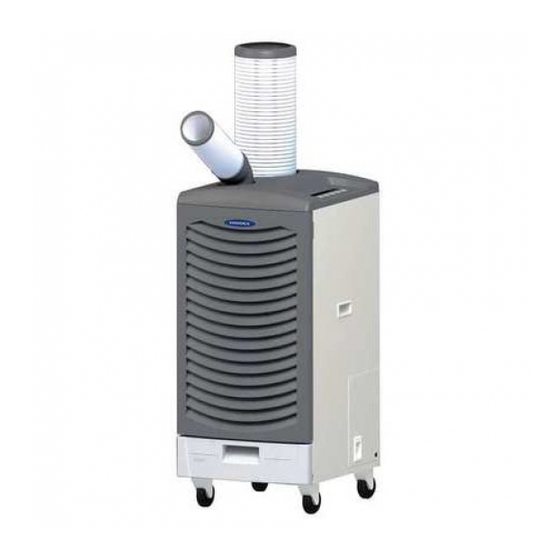

- Page 10 (COLD AIR) CONTROLLER AIR INLET ELECTRIC PANEL CONDENSED WATER TANK CASTERS b b a a c c k k v v i i e e w w CONDENSER OUTLET DUCT (HOT AIR) HANDLE HEATER HSC-11 HSC-11H (Heating plate attached type)
-
Page 11: ① Power On/Off
C C o o n n t t r r o o l l P P a a n n e e l l F F u u n n c c t t i i o o n n s s ⑥... - Page 12 1. Water Full (COOL mode only) Display It shows the drain water bucket is full with drain water. If the water full lamp is On, the operation of compressor is Off automatically. In this case, take the water bucket out and throw away the water, and place the water bucket at the original place and use air conditioner again.
- Page 13 Model HSC-11 Cooling capacity 11,000 BTU/h Power Supply 115Va.c. 60Hz 1ph Power Consumption 1.3kW Velocity (CFM) 195 (Air flow Evaporator) / 283 (Air flow Condenser) Weight 110 (lbs) Size (WxDxH) 16.5 X 19 X 37 (inch) Refrigerant R22 1.1 (lbs) Drain tank 1.32 (gal)
- Page 14 MEMO.
-
Page 15: Warranty
WARRANTY (Applicable to first retail purchaser only) AIRREX PORTABLEAIRCONDITIONER give more reliable performance, comfort and durability the more they are used. They are built under a strict quality assurance regime which includes inspection both during and after production and exhaustive reliability testing. - Page 16 FAX : 1-469-574-7924 sales@airrexusa.com HEPHZIBAH CO.,LTD. 423-5 CHUNGCHUN-DONG, BUPYUNG-KU INCHEON, KOREA TEL : +82-32-509-5834 FAX : +82-32-502-5519 E-mail : airrex@hdtek.com Website : www.airrex.co.kr ● Designs and specifications of products are subject to change without prior notice for the improvement of products.
