A A I I R R R R E E X X A A I I R R C C O O N N D D I I T T I I O O N N E E R R
▶ Thank you for purchasing an AIRREX AIR CONDITIONER.
▶ Keep this manual readily available.
▶ It is ESSENTIAL that you read the 'NOTES ON SAFETY'carefully
▶ This Air Conditioner is specified for use on a 220~240Va.c. 60Hz.
▶ The Warranty form is on Page 15. Please complete it now and keep
▶ We have a policy of continual improving to our products.
BEFORE operation please read this user' s manual carefully.
before use and follow them at all times.
single phase power supply. You must check that the local
electricity supply is the same and have the appropriate plug fitted
by a qualified electrician.
in a safe place.
The contents (features and specifications) in this manual are
therefore subject to change without notice.
USER' S MANUAL
HSC-2500 / HSC-3500
Advertisement
Table of Contents
Related Manuals for Airrex HSC-2500
Summary of Contents for Airrex HSC-2500
- Page 1 A A I I R R R R E E X X A A I I R R C C O O N N D D I I T T I I O O N N E E R R USER’ S MANUAL HSC-2500 / HSC-3500 ▶ Thank you for purchasing an AIRREX AIR CONDITIONER. BEFORE operation please read this user’ s manual carefully. ▶ Keep this manual readily available.
-
Page 2: Table Of Contents
TABLE OF CONTENTS ■ SAFETY INSTRUCTIONS ■ DESCRIPTION ·Front View ·Back View ·Control Panel ■ OPERATING INSTRUCTIONS ·On/Off Operation ·Selection of Area/Room or Spot Cooling ·Temperature Control ·Off Timer ·Error and Warning Indicators ■ CLEANING AND MAINTENANCE ■ TROUBLE SHOOTING / ACCESSORIES ■... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS The following instructions are for ensuring the user’ s safety and to prevent any physical injury or material damage. Please read carefully and follow all instructions. There are two sections to these instructions: WARNING and CAUTION. The following symbols are for your guidance: = You must NOT. - Page 4 SAFETY NOTICE CAUTION Do not place cooler on uneven, unstable or inclined surface. (This could cause malfunction) When storing the cooler, ensure that it is kept in a dry, cool place. (To prevent corrosion and malfunction) If not being used for some time or if lightening is present, always unplug from power.
-
Page 5: Description

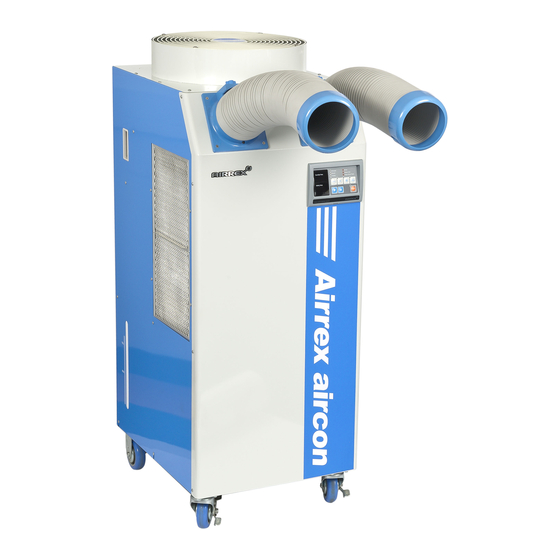

EXTERIOR DESCRIPTION FRONT VIEW FLEXIBLE DUCT OUTLET (COLD AIR) HANDLE DIGITAL CONTROLLER ELECTRIC PANEL (ACCESS BY AUTHORISED SERVICE PERSONNEL ONLY) POWER PLUG CASTERS (FRONT LOCKABLE) BACK VIEW CONDENSER OUTLET (HOT AIR) EVAPORATOR FILTER AMBIENT AIR INTAKE. CONDENSER FILTER WATER LEVEL INDICATOR TO CHECK WATER LEVEL OF THE CONDENSATE TANK. -
Page 6: Control Panel
EXTERIOR DESCRIPTION ⑩ ⑦ ⑧ ⑪ ⑫ ⑨ ③ ④ ⑤ ⑥ ⑬ ② ① ① Power : Use to power On / Off. ② : Raises or lowers temperature and sleep (off) time. ③ Cool : Use to select cooling mode. ④... -
Page 7: Operating Instructions
OPERATION RUNNING & STOP 1. START BY PRESSING THE ‘POWER’BUTTON. ·Cooler will start up automatically. ·To STOP the unit, press the ‘POWER’button once again. 2.To change fan speed, press the ‘Low’button. 3.If you wish to operate on fan only, press the ‘COOL’button. To resume cooling, press the ‘COOL’button again. -
Page 8: Selection Of Area/Room Or Spot Cooling
SELECTION of AREA/ROOM or SPOT COOLING To reduce the temperature of the entire room select 'Area/Room'. For ‘targeted’ cooling of machinery, servers, or people etc. select ‘Spot Cooling’ . 1. IF YOU WANT TO DISPLAY ROOM TEMPERATURE, PUSH COOL AND BUTTON SIMULTANEOUSLY FOR THREE SECONDS. -
Page 9: Temperature Control
TEMPERATURE CONTROL OPERATION 1. When power is ON, the setting temperature is displayed. Default of setting temperature is 5℃. 2. When you push either button, the setting temperature is changed. 3. The display showing the set temperature will blink 3 times. 4. -
Page 10: Off Timer
HOW TO SET THE ‘OFF’ TIMER. This function enables you to set the length of time you want the cooler to operate. You can set the time period from 30min. to 24 hours in 30min. and 1 hour increments. 1.When cooler is operating, press the ‘Off Timer’ button and set the length of time you want by pressing ▲... -
Page 11: 'Error' And W Arning Indicators
'ERROR' and W ARNING INDICATORS The machine’ s safety devices will automatically signal any problems via the display window on the control panel. The information below shows how to read these signals. 1. WATER FULL- Display shows “FU” When the water container is full, “FU”is displayed and the LED “Water Full”light will be on. -
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE CLEANING THE AIR FILTERS 1. To remove filters, slide up a little ① and pull towards you ②. 2. Clean the filters with water or compressed air. 3. Clean evaporator and condenser units with a vacuum cleaner or compressed air. MAINTENANCE 1. -
Page 13: Trouble Shooting / Accessories
● Obstacle against inlet side ● Remove and allow 50cm.clearance ● Ambient temp. too high ● Use only below 45℃ (over 45℃) (HSC-3500 : 40℃) (HSC-3500 : 40℃) ACCESSORIES MODEL ITEM DRAWING HSC-2500/HSC-3500 0.5m Diam. DUCT 125mm OPTION DUCT COVER COLD (FINISHING COLLAR) OUTLET... -
Page 14: Specifications
SPECIFICATIONS Model H H S S C C - - 2 2 5 5 0 0 0 0 H H S S C C - - 3 3 5 5 0 0 0 0 BTU/h 21,000 25,000 Cooling Capacity (6.15) (7.33) Power Supply 220~240Va.c. -
Page 15: Warranty
W ARRANTY (Applicable to first retail purchaser only) AIRREX AIR CONDITIONERS give more reliable performance, comfort and durability the more they are used. They are built under a strict quality assurance regime which includes inspection both during and after production and exhaustive reliability testing. - Page 16 ● Designs and specifications of products are subject to change without prior notice for the improvement of products.
