WIRING
We recommend using 16 gauge (or larger) wire. The QS components are rated at 4 ohms and work
with any source unit or amplifi er designed to operate at a 4 ohm load. Make sure your source unit or
amplifi er is rated for 4 ohm operation.

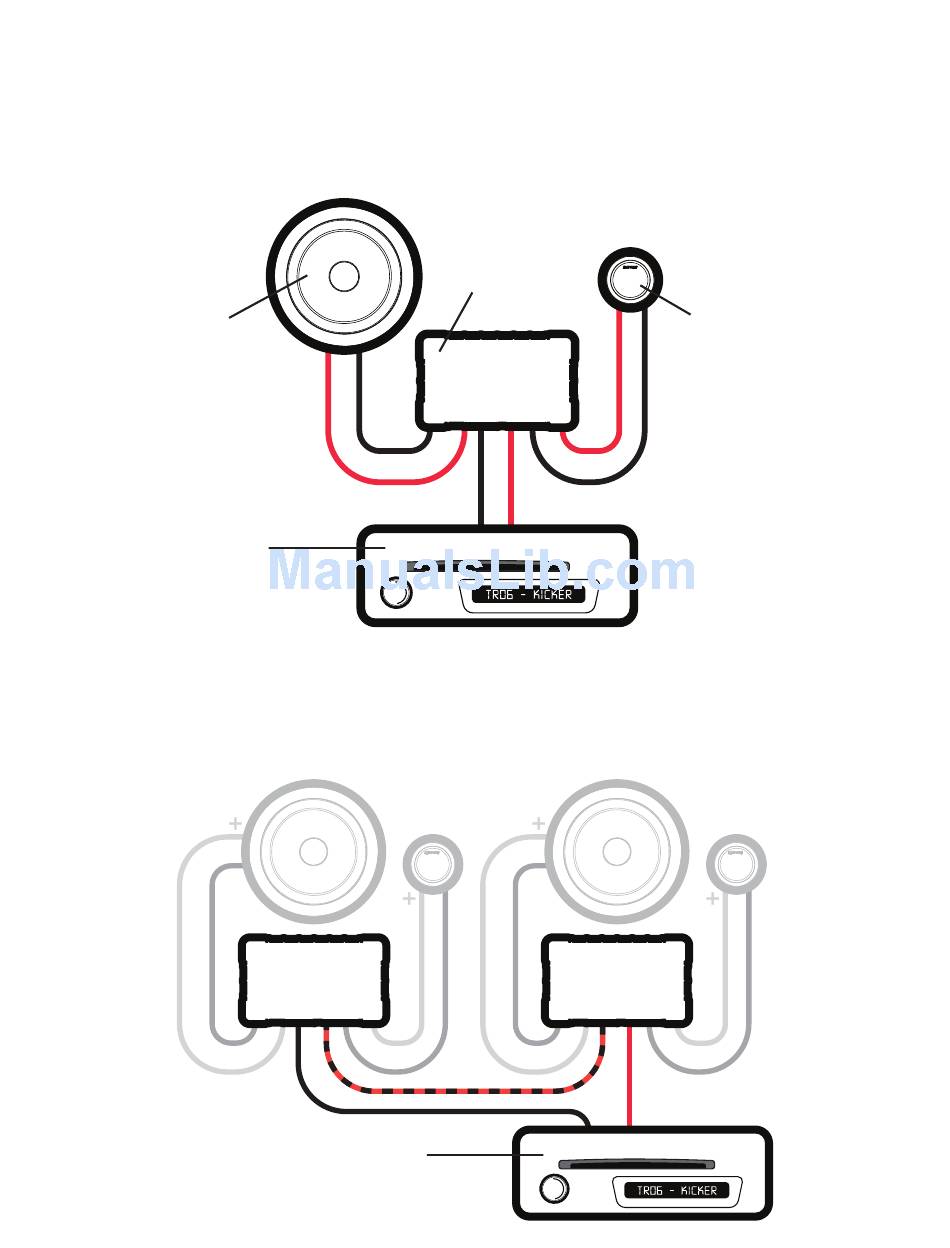

Crossover in 2-way confi guration | One component set per channel
• At least two amplifi er channels are needed for stereo operation (only one channel is shown)
woofer
source unit / amplifi er
Crossover in 2-way confi guration | Two component sets per channel
• Requires two complete QS systems (four woofers, four tweeters, four crossovers)
• At least two amplifi er channels are needed for stereo operation (only one channel is shown)
• Crossovers wired in series
-
OUT
-MID+
source unit / amplifi er
+
-
OUT
-MID+
-OUT+
-
OUT
- IN + -TW+
crossover
+
-
OUT
- IN + -TW+
-
OUT OUT
-MID+ - IN + -TW+
- OUT +
tweeter
-
