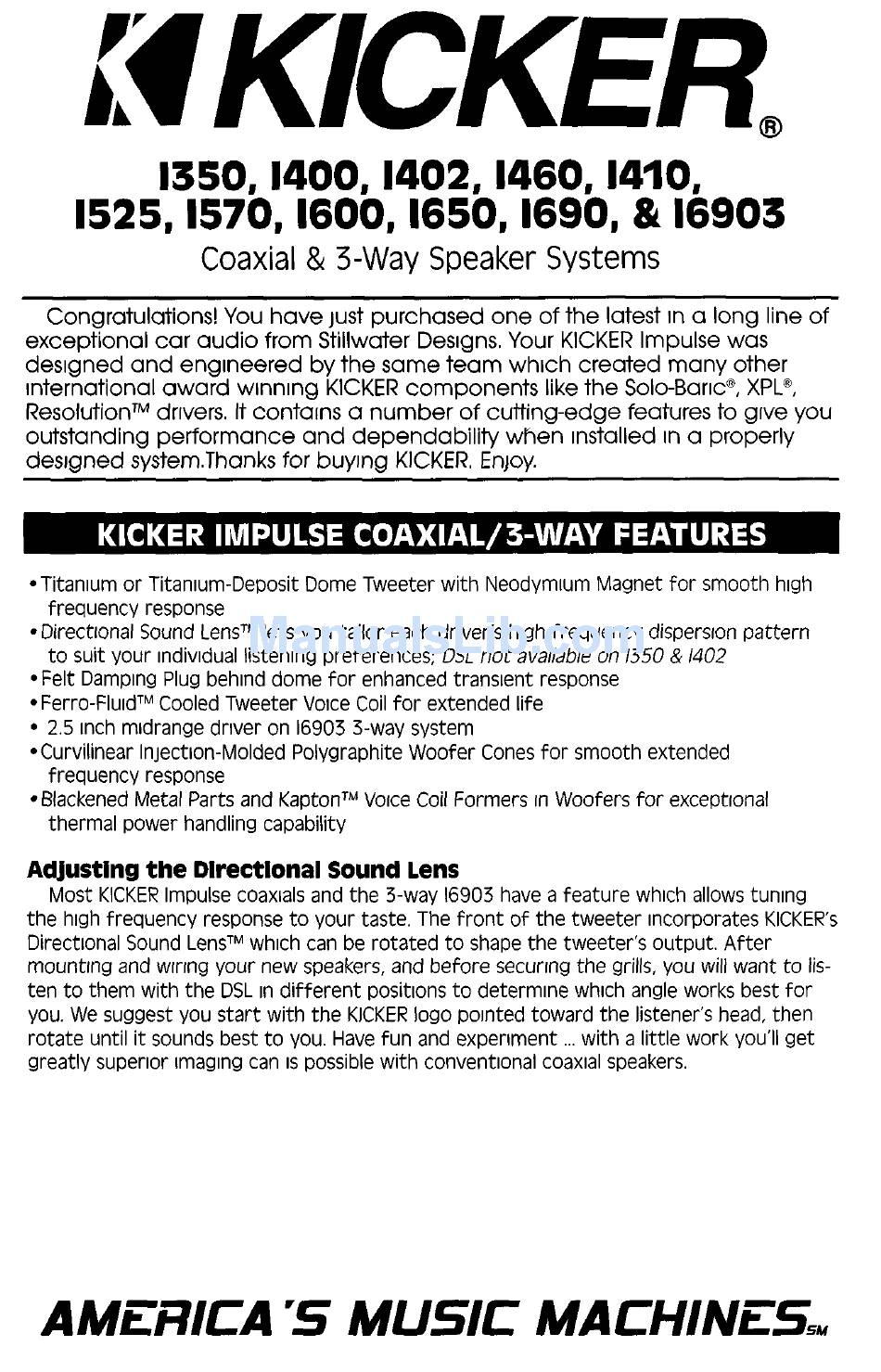

Kicker 1350 Installation Instructions

MKICKER,
1350,1400,1402,1460,1410,
1525,1570,1600,1650,1690, & 16903
Coaxial & 3-Way Speaker Systems
Congratulations! You have just purchased one of the latest In a long line of
exceptional car audio from Stillwater Designs. Your KICKER Impulse was
deslgned and englneered by the same team which created many other
international award winning KICKER components like the Solo-Ban@, XPL@,
ResolutionTM drivers. It contains a number of cutting-edge features to give you
outstanding performance and dependability when installed in a properly
designed system.Thanks for buying KICKER. Enjoy.
*Titanium or Titanium-Deposit Dome Tweeter
with Neodvmlum Magnet for smooth high
frequency response
l
Directlonal Sound LensTM lets you tailor each driver's high frequency dispersion pattern
to suit your Individual listening preferences; DSL not available on 1350 & 1402
*Felt Damping Plug behind dome for enhanced transient response
l
Ferro-FIuidTM Cooled Tweeter Voice Coil for extended life
l
2.5 inch midrange driver on 16903 3-way system
*Curvilinear Injection-Molded Polygraphite Woofer Cones for smooth extended
frequency response
l
Blackened Metal Parts and KaptonTM Voice Coil Formers in Woofers for exceptional
thermal power handling capability
Adjusting the DIrectIonal Sound lens
Most KICKER Impulse coaxlals and the 3-way 16903 have a feature which allows tuning
the high frequency response to your taste. The front of the tweeter incorporates KICKER's
Directional Sound LensTM which can be rotated to shape the tweeter's output. After
mounting and wiring your new speakers, and before securing the grills, you will want to Iis-
ten to them with the DSL in different positions to determine which angle works best for
you. We suggest you start with the KICKER logo pointed toward the listener's head, then
rotate until it sounds best to you. Have fun and experiment with a little work you'll get
greatly superior Imaging can
IS
possible with conventional coaxial speakers.
AMiFKA 'S MUSIC MACHMESL
