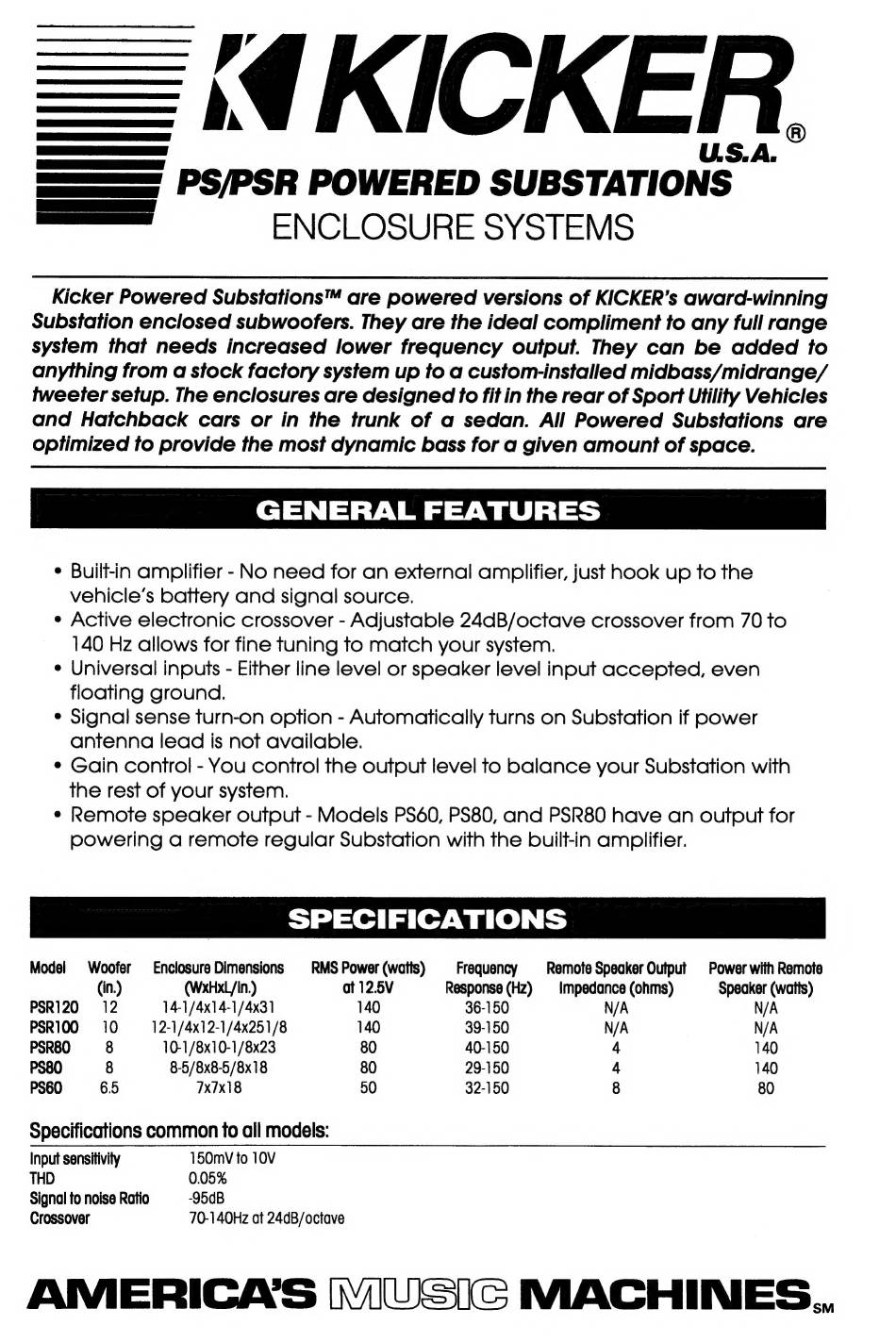

PS/PSR POWERED SUBSTATIONS
ENCLOSURE SYSTEMS
Kicker Powered Substations™ are powered versions of KICKER's award-winning
Substation enclosed subwoofers. They are the ideal compliment to any full range
system that needs increased lower frequency output. They can be added to
anything from a stock factory system up to a custom-installed midbass/midrange/
tweeter setup. The enclosures are designed to fit in the rear of Sport Utility Vehicles
and Hatchback cars or in the trunk of a sedan. All Powered Substations are
optimized to provide the most dynamic bass for a given amount of space.
GENERAL FEATURES
e Built-in amplifier - No need for an external amplifier, just hook up to the
vehicle's battery and signal source.
e Active electronic crossover - Adjustable 24dB/octave crossover from 70 to
140 Hz allows for fine tuning to match your system.
e Universal inputs - Either line level or speaker level input accepted, even
floating ground.
e Signal sense turn-on option - Automatically turns on Substation if power
antenna lead is not available.
e Gain control - You control the output level to balance your Substation with
the rest of your system.
e Remote speaker output - Models PS60, PS80, and PSR80 have an output for
powering a remote regular Substation with the built-in amplifier.
SPECIFICATIONS
Model Woofer Enclosure Dimensions RMS Power (watts) Frequency Remote Speaker Output Power with Remote
(in.) (WxHxL/in.) ot 12.5V Response (Hz) Impedance (ohms) Speaker (watts)
PSR120. 12 14-1/4x14-1/4x31 140 36-150 N/A N/A
PSR100 10 12-1/4x12-1/4x25 1/8 140 39-150 N/A N/A
PSR80 8 10-1/8x10-1/8x23 80 40-150 4 140
PS80 8 8-5/8x8-5/8x18 80 29-150 4 140
PS60 6.5 7x7x18 50 32-150 8 80
Specifications common to all models:
Input sensitivity 150mV to 10V
THD 0.05%
Signal to noise Ratio -95dB
Crossover 70-140Hz at 24dB/octave
