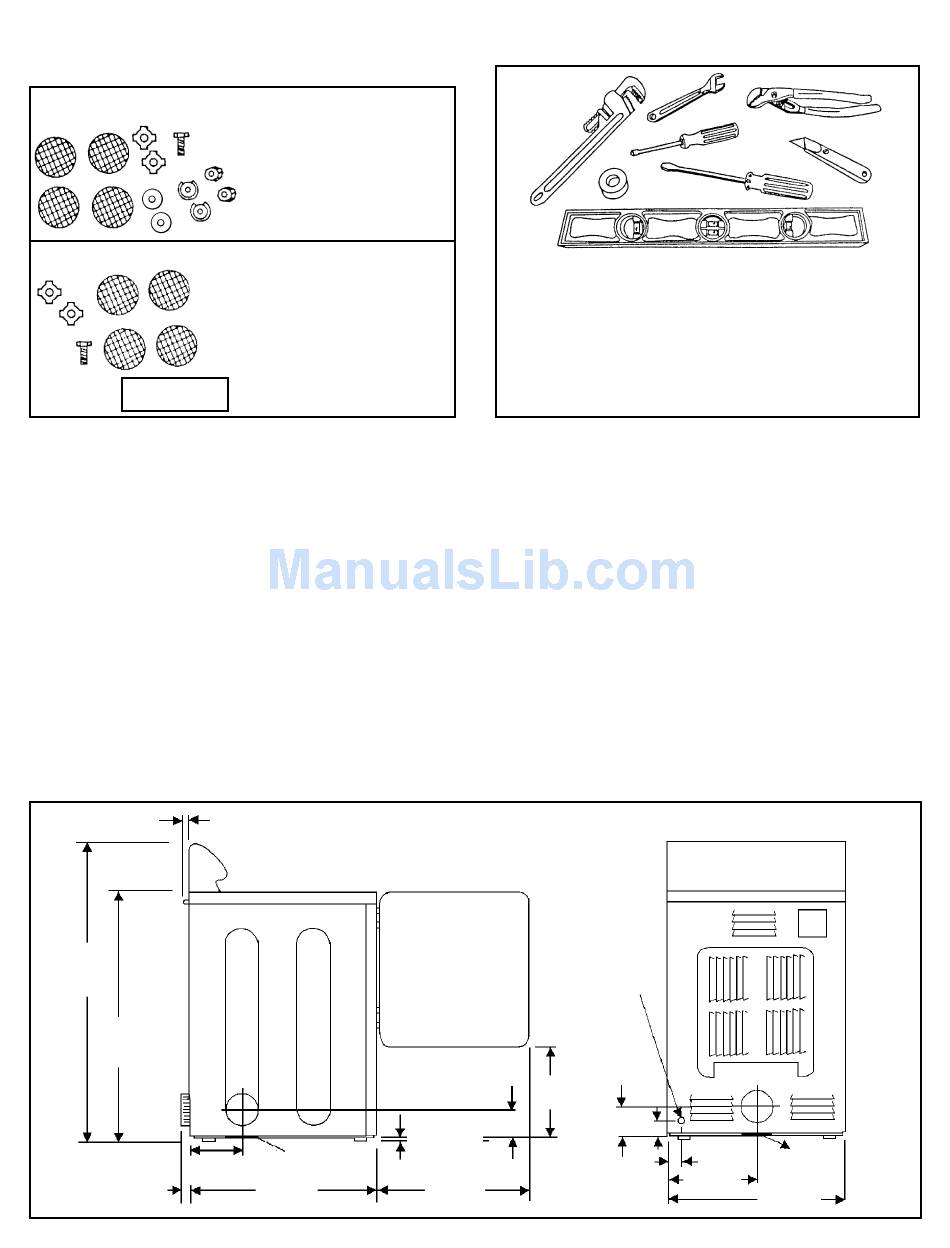

1. BEFORE YOU START

ITEMS PROVIDED

Electric Dryer Only
Gas Dryer Only
Gas Pipe
Adapter
WARNINGS:
Read these instructions carefully before you start, make sure you have everything necessary for proper
installation. These instructions cover both single and stacked pair dryers.
Proper installation is the responsibility of the owner. This appliance must be installed in accordance with
these Maytag Installation Instructions, and all local and national regulations, such as for electrical wiring,
municipal buildings and gas fittings. For Australia the installation should also be carried out in accordance
with the AGA Installation Code AG601 for gas burning appliances. Maytag gas dryers have been certified for
operation on either natural gas or LP gas (Australia: propane only) with appropriate conversion.
Service calls performed as a result of incorrect installation may be the responsibility of the installer.
These instructions should be left with the owner for future reference.
If disposing of an old dryer, remove the door to prevent it from being a hazard to young children.

2. SPACE REQUIREMENTS

The dryer dimensions are shown in the following figures:
109,8 cm
(43 1/4")
minimum
92,1 cm
(36 1/4")
minimum
17,3 cm
(6 13/16")
3,8 cm (1 1/2")
• 4 vinyl feet – MDE
and MDG models only
• Additional earth bond
screw and washers
• mains terminal nuts
and washers
• 4 vinyl feet – MDE and
MDG models only
• Additional earth bond
screw and washers
• Gas pipe adapter
1,9 cm
(3/4")
Base
Exhaust
69,8 cm
27 1/2")
Typical tools needed for installation:
• PTFE tape
• Jointing compound
• Cutting knife
• Pipe wrench
• Adjustable spanners
9,2 cm
(3 5/8")
40,6 cm
(16")
1 cm (3/8")
minimum
56,6 cm
(22 1/4")
Page 1
• Spirit level
• Screwdrivers
• Duct tape
(heat resistant)
• T20 security torx
screwdriver
Gas Pipe
6,2 cm
(2 7/16")
8,2 cm
(3 1/4")
8,7 cm
34,3 cm
(3 7/16")
(13 1/2")
68,6 cm
Base
Exhaust
(27")
