Ductless recirculating is intended for applications where an exhaust duct work is not possible to be installed.
When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust
from cooking are drawn and fi ltered by a set of optional charcoal fi lters. The air is then purifi ed and re-
circulated back within the home.
We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct
work, if possible. The hood is most effective and effi cient as an exhaust hood. Only when the exhaust option
is not possible should you recourse to converting the hood into a recirculating hood.
When converted to be a recirculating hood, a set of charcoal fi lters are required on top of its standard
Aluminum Mesh Filter set. Order according to its Part number below. The standard Aluminum Mesh Filters
are intended to capture residue from cooking and the optional charcoal fi lters help to purify fumes exhausted
from cooking for re-circulation.
RECIRCULATING KIT (REQUIRED IF NO DUCTING IS USED)
Kit includes charcoal fi lters and air diverter plate.
Hood Model
ZVE-E30BS
ZVE-E36BS/E42BS
1. Secure air diverter plate to wall below duct cover wall bracket.
(FIG.C)
2. Remove aluminum mesh fi lters from hood. Install charcoal fi lter
brackets inside fi lter opening. Note: screws to secure charcoal
fi lter bracket are already pre-installed in the hood and must fi rst
be removed.
3. Clip charcoal fi lters onto charcoal fi lter bracket. (FIG. C)
4. Re-install aluminum mesh fi lters.
5. Turn on charcoal fi lter change indicator on control panel.
(refer to details on page 12.) The microprocessor in the
controls will indicate the need to change the charcoal fi lters
after 120 hours of continuous use. Order replacement charcoal
fi lters per the list below.
NOTE: See manual included with recirculating kit for more
detailed instructions.
Charcoal Filter Replacements
Hood Model
ZVE-E30BS
ZVE-E36BS/E42BS
DO NOT WASH CHARCOAL FILTERS. Charcoal fi lters may need
to be changed more often depending on cooking habits.
Part No. Filters in Pkg.
ZRC-00VE 2
ZRC-01VE 3
Part No. Qty to Order
Z0F-C002 2
Z0F-C002 3
10
www.zephyronline.com

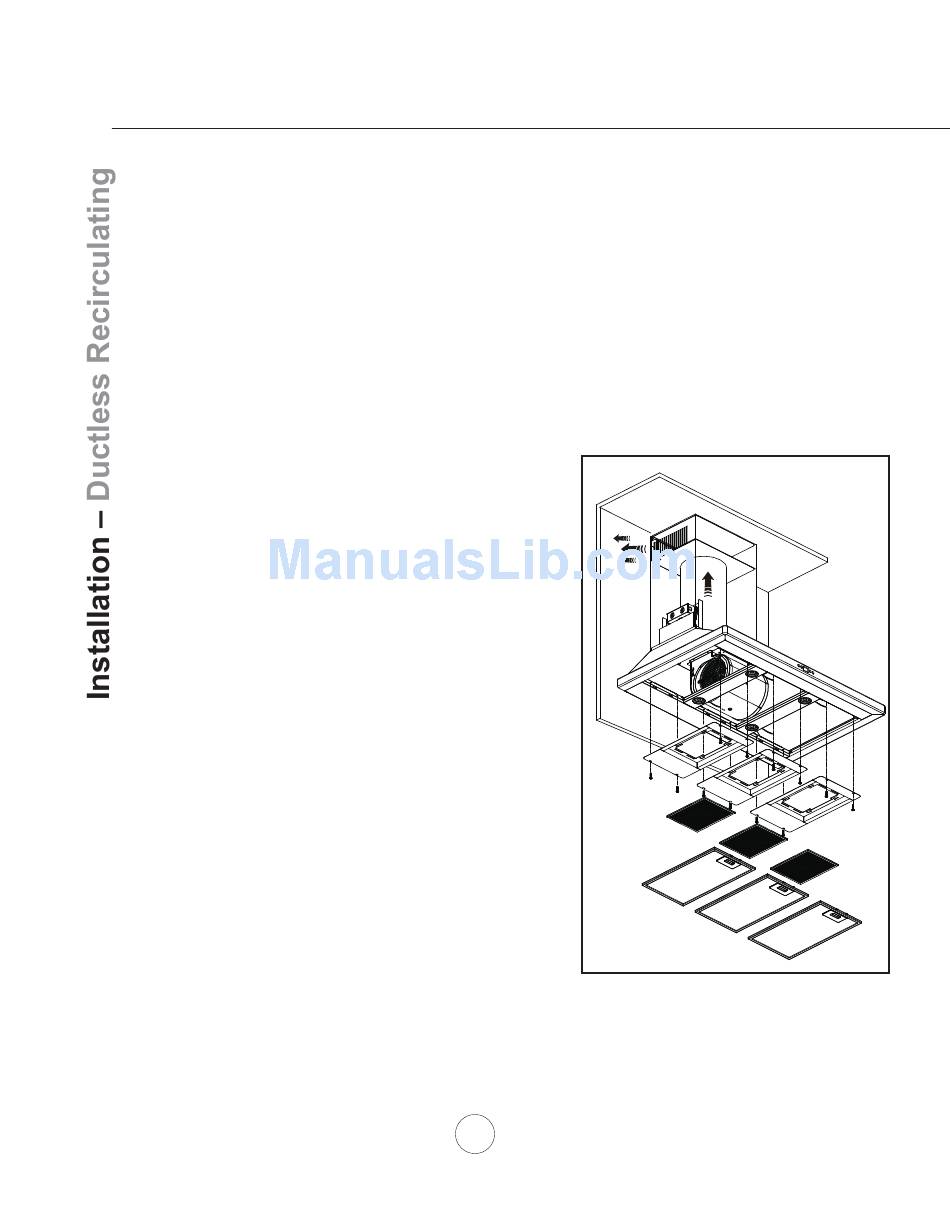

FIG. C
