USER MANUAL

I-DSL64
Single / Port Leased Line Modem
G.703 64K Co-Directional I/F
CTC Union Technologies Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I-DSL64 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CTC Union I-DSL64

Summary of Contents for CTC Union I-DSL64

  • Page 1: User Manual

    USER MANUAL I-DSL64 Single / Port Leased Line Modem G.703 64K Co-Directional I/F CTC Union Technologies Co., Ltd.
  • Page 3 Should the Buyer purchase or use a CTC Union product for any such unintended or...
  • Page 4 This manual supports the following models: I-DSL64 This document is the first official release manual. Please check CTC Union's website for any updated manual or contact us by E-mail at info@ctcu.com. Please address any comments for improving this manual or to point out omissions or errors to marketing@ctcu.com.

  • Page 5: Table Of Contents

    1 Introduction to the I-DSL64 …………………………. 1 1.1 General Overview ………………………………………. 1 1.2 Applications for I-DSL64 ……………………………….. 2 1.3 Hardware Overview …………………………………….. 3 1.4 Factory Default Setup for the I-DSL64 ………………. 7 2 Installation ……………………………………………… 7 3 Configuration …………………………………………. 9 3.1 LT/NT ……………………………………………………… 10 3.2 Data Rate …………………………………………………..
  • Page 6 Table of Contents...

  • Page 7: Introduction To The I-Dsl64

    The I-DSL64 is a stand-alone data circuit-terminating equipment (DCE) unit that connects data terminal equipment (DTE) to the digital data network (DDN). The I-DSL64 utilizes 2B1Q line coding and echo cancellation technique for full duplex operation at synchronous 64Kbps transmission rate over 2-wire unconditioned twisted pair.

  • Page 8: Applications For I-Dsl64

    Digital Loop Carrier (DLC) system or U loop ISDN repeater (Figure 1). PCM / AD4 PCM / AD4 - DP - DP Figure 1 I-DSL64 connects with multiplexer system The I-DSL64 can serve as a 64Kbps limited distance modem for leased line application (Figure 2). Figure 2 I-DSL64 leased line application...

  • Page 9: Hardware Overview

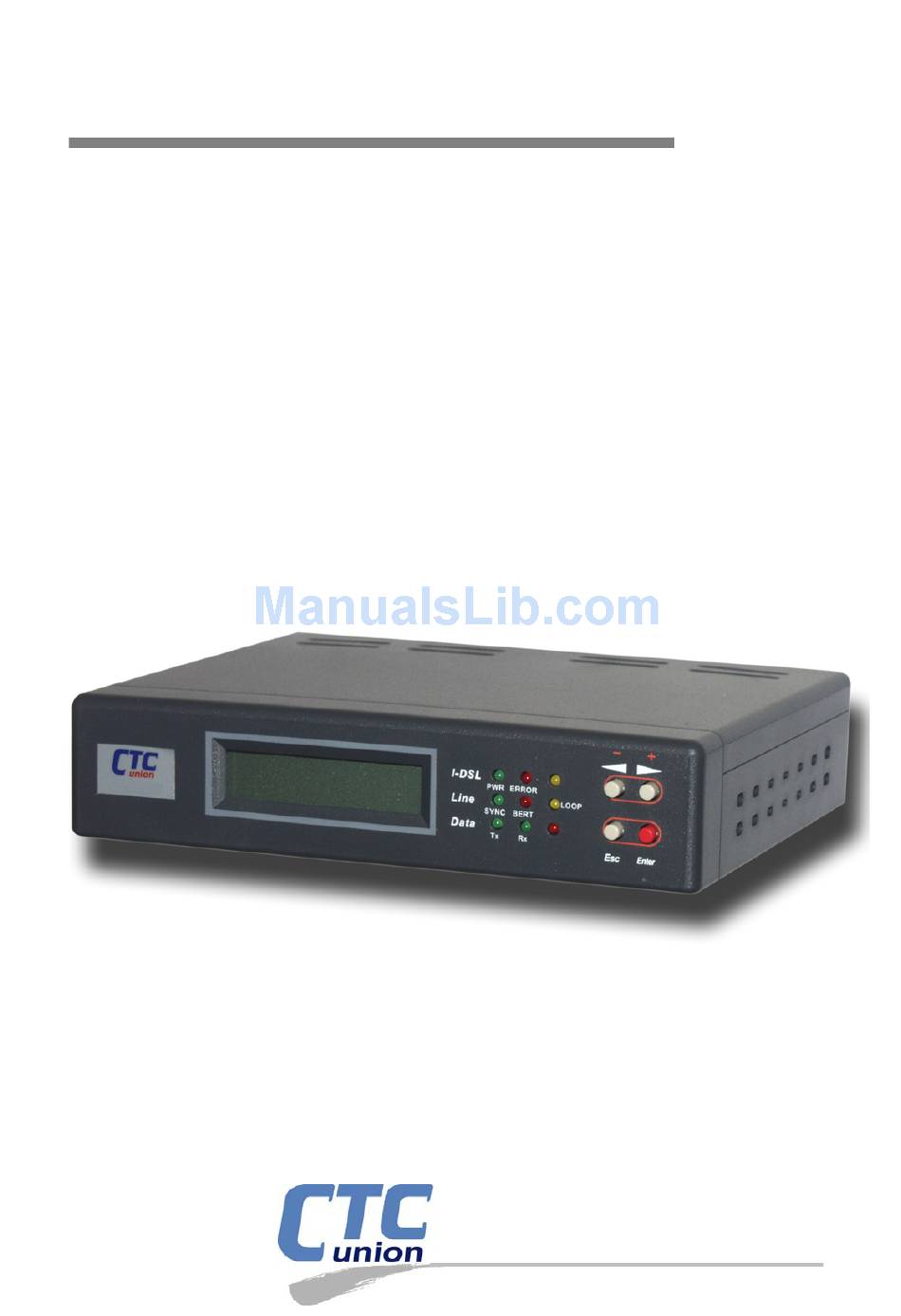

    I-DSL64 USER’S MANUAL 1.3 Hardware Overview Figure 3 Overview of the I-DSL64 1.3.1 Front Panel The I-DSL64's front panel (Figure 4) consists of the following: LCD module LED module Push button module Figure 4 I-DSL64 front panel...
  • Page 10 LCD Display Function Note Show status and setups 1. English display 2. Backlight 3. 16 X 2 character display Table 1 Function of the LCD 1.3.1.2 LED Indictors for I-DSL64 LED's Function Color Status Note Power Power Indicator Green Power normal...
  • Page 11 I-DSL64 USER’S MANUAL 1.3.2 Rear Panel The I-DSL64’s rear panel (Figure 5) consists of the following: DTE Interface DSL Interface Power Interface Figure 5 The I-DSL64 rear panel Each interface has the following functions: Label Function POWER Power switch AC-IN Power inlet：input voltage 90~264VAC / 10VA.
  • Page 12 Physical line type: Unconditioned twisted pair, 19-26AWG Conforms to ANSI T1.601-1992 1.3.4.2 DSL Connector The I-DSL64's DSL interface provides a 2-wire RJ45 for ISDN basic rate U-interface. 1.3.4.3 DSL Protection There are surge protectors, current limiters and fuses for the primary protection and zener diodes and a diode bridge for secondary protection.

  • Page 13: Factory Default Setup For The I-Dsl64

    I-DSL64 USER’S MANUAL 1.4 Factory Default Setup for the I-DSL64 The I-DSL64 is supplied with a default setup, which is used when it is first started up. The default configuration is as follows: System Parameters Default Setup DTE port (G64KC)
  • Page 14 Step 4 Turning on the power Turn on the power switch labeled POWER on the rear panel of your I-DSL64. The PWR LED lights up to indicate the power is normal. All the LED’s on the front panel (except for the PWR LED) will blink for five seconds. The LCD will...

  • Page 15: Configuration

    I-DSL64 USER’S MANUAL 3 Configuration You can change the I-DSL64's configuration from the local site only. You can change any of these 5 settings: (1) LT/NT (2) DATA RATE: time slot (3) CLOCK SOURCE (4) RESTART DEVICE (5) LOAD DEFAULT SETTING Note 1: Item (3) only shows up in the LT mode.

  • Page 16: Lt/Nt

    I-DSL64 USER’S MANUAL 3.1 LT/NT Step 1 Enter ”DEVICE CONFIGURATION” screen, then press (Enter) DEVICE CONFIGURATION Step 2 Use (Left arrow) or (Right arrow) to choose ”CHANGE SETUP”, then press (Enter) . CHANGE SETUP Step 3 Use (Left arrow) or (Right arrow) to choose ”LT/NT” screen, then press (Enter) .

  • Page 17: Data Rate

    I-DSL64 USER’S MANUAL 3.2 Data Rate Step 1 Enter ”DEVICE CONFIGURATION” screen, then press (Enter) DEVICE CONFIGURATION Step 2 Use (Left arrow) or (Right arrow) to choose ”CHANGE SETUP”, then press (Enter) . CHANGE SETUP Step 3 Use (Left arrow) or (Right arrow) to choose ”DATA RATE”, then press (Enter) .

  • Page 18: Clock Mode

    I-DSL64 USER’S MANUAL 3.3 Clock Mode The I-DSL64 provides three options for system clock sources: Loop timing Internal timing External timing: From Data interface (G64KC) Note 1: Clock mode can only be configured when the system in the LT mode.

  • Page 19: Restart Device

    Step 3 Use (Left arrow) or (Right arrow) to choose “YES”, then press (Enter) . *RESTART DEVICE* NO YES Step 4 The LCD will show the following message and the I-DSL64 will restart after 3 seconds. RESTART DEVICE AFTER 3 SECONDS...

  • Page 20: Load Default Settings

    Use (Left arrow) or (Right arrow) to choose “YES”, then press (Enter) . *LOAD DEFAULT* NO YES Step 4 The LCD will display the following message and the I-DSL64 will load default settings from EEROM and restart after 3 seconds. LOAD DEFAULT & RESTART DEVICE...

  • Page 21: Maintenance

    Note 3: The system will release the Digital, CSU and DSU loopbacks when the DSL is out-of- sync. 4.1 Show Status The I-DSL64 can display system status of the local or remote site. 18 items are available: LT/NT mode Data Port Number...

  • Page 22: Show Status

    I-DSL64 USER’S MANUAL 4.1.1 To View System Status Step 1 Enter ”SHOW STATUS” screen, then press (Enter) SHOW STATUS Step 2 Use (Left arrow) or (Right arrow) to check the system current status. * MODE * * PORT NUMBER *...

  • Page 23: Local Loopback

    I-DSL64 USER’S MANUAL 4.2 Local Loopback When the local loopback is activated, it will utilize the local site of the I-DSL64 (see Figure 7). This will test the transmitting/receiving functions of the local site. During this test, the remote unit will lose DSL synchronization. When the local loopback test is released, the system will restart and return to its initial state.
  • Page 24 I-DSL64 USER’S MANUAL 4.2.1 To Execute Local Loopback Step 1 Enter ”DEVICE DIAGNOSTIC” screen, then press (Enter) DEVICE DIAGNOSTIC Step 2 Use (Left arrow) or (Right arrow) to choose “LOCAL LOOPBACK”, then press (Enter) . LOCAL LOOPBACK Step 3 Use (Left arrow) or (Right arrow) to choose “ON”, then press (Enter) .

  • Page 25: Digital Loopback

    I-DSL64 when using a DSL condition. The digital loopback function is only executable when the DSL connection is synchronized with the remote site. When this test is executed, all the payloads (B1 and B2 Channels) are looped and the Loop LED is lit and the DTE ports are turned off.
  • Page 26 I-DSL64 USER’S MANUAL 4.3.1 To Execute Digital Loopback Step 1 Enter ”DEVICE DIAGNOSTIC” screen, then press (Enter). DEVICE DIAGNOSTIC Step 2 Use (Left arrow) or (Right arrow) to choose “DIGITAL LOOPBACK”, then press (Enter) . DIGITAL LOOPBACK Step 3 Use (Left arrow) or (Right arrow) to choose “B1+B2”, then press (Enter) .

  • Page 27: Csu Loopback

    I-DSL64 USER’S MANUAL 4.4 CSU Loopback The CSU loopback is a testing function controlled from the unit in the LT mode. The LT unit (the local site in Figure 9) sends loopback messages through an EOC, specified by ANSI T1.601, and the NT unit (the remote site in Figure 9) executes the loopback function when it receives a valid loopback command.
  • Page 28 DTE ports and 2047 BERT are disabled at the local site. Note 2: If the I-DSL64 is set to “OFF”, the system will release all the CSU loopbacks. When the CSU loopback is activated, the Loop LED will be turned on. It will be turned off when the unit receives a valid RTN command.
  • Page 29 I-DSL64 USER’S MANUAL 4.4.3 To Execute CSU Loopback 4.4.3.1 LT Mode Step 1 Enter ”DEVICE DIAGNOSTIC” screen, then press (Enter) DEVICE DIAGNOSTIC Step 2 Use (Left arrow) or (Right arrow) to choose “CSU LOOPBACK”, then press (Enter) . LOOPBACK Step 3 Use (Left arrow) or (Right arrow) to choose “B1”, “B2”...

  • Page 30: Dsu Loopback

    I-DSL64 USER’S MANUAL -- CSU LOOP -- REMOTE RTN OK !! 4.4.3.2 NT Mode Step 1 Enter ”DEVICE DIAGNOSTIC” screen, then press (Enter) DEVICE DIAGNOSTIC Step 2 Use (Left arrow) or (Right arrow) to choose “CSU LOOPBACK”, then press (Enter) .
  • Page 31 I-DSL64 USER’S MANUAL V.54 DSU Loopback Local Site Remote Site NTU-128 NTU-128 I-DSL64 I-DSL64 DTE-A DTE-A DTE-B DTE-B Line Interface Digital Interface Figure 10 DSU Loopback There are four modes can be chosen by the user: DISABLE: Ignore ITU-T V.54 pattern from remote.
  • Page 32 I-DSL64 USER’S MANUAL Step 4 The DSU loopback is executed successfully when the LCD shows ”REQUEST OK!!” and the Loop LED is turned on. Otherwise, the LCD shows “REQUEST FAIL!!” and the Loop LED is off. DSU LOOP (G64KC) REQUEST OK!!

  • Page 33: 2047 Bert

    There is one built-in 2047 BERT test pattern generator and receiver in each DTE port of the I-DSL64. You can easily use the testing mechanism and other loopback functions to check the status of system itself, the DSL and the remote equipment (Figure 11,12,13).
  • Page 34 I-DSL64 USER’S MANUAL eoc CSU Loopback & 2047 BERT Remote Site (NT) Local Site (LT) NTU-128 NTU-128 I-DSL64 I-DSL64 2047 GEN 2047 RCV B1 or B2 or 2B+D Line Interface Digital Interface Figure 12 CSU Loopback & 2047 BERT V.54 DSU Loopback &...
  • Page 35 I-DSL64 USER’S MANUAL BERT 2047 ( G64KC) Step 3 Use (Left arrow) or (Right arrow) to choose “RUN”, then press (Enter) . BERT 2047(G64KC) STOP RUN RST Step 4 The 2047 BERT has executed successfully when the LCD shows as below. The RUN (SEC) counter should be increasing and the BERT LED should be on.

  • Page 36: Specifications

    I-DSL64 USER’S MANUAL Appendix A Specifications: Items Notes Type Full duplex with adaptive echo cancellation Line coding 2B1Q Network Line Type Unconditioned twisted pair， 19-26 AWG Line Surge Protection Meets FCC Part 68 Type A，B Interface Connector RJ45 Number of Ports 1...

  • Page 37: Appendix B

    Description Function Protective Chassis Ground Ground May be isolated from Signal Ground. Signal Common Signal Ground. Ground Transmitted To I-DSL64 Serial Co-directional data from Data DTE. Received Fm I-DSL64 Serial Co-directional data at the Data output of the I-DSL64 receiver.
  • Page 40 Transmission Units CTC Union Technologies Co., Ltd. Far Eastern Vienna Technology Center (Neihu Technology Park) 8F, No.60, Zhouzi Street Neihu, Taipei, Taiwan Phone:(886) 2.2659.1021 Fax:(886) 2.2799.1355 E-mail: info@ctcu.com http://www.ctcu.com...
