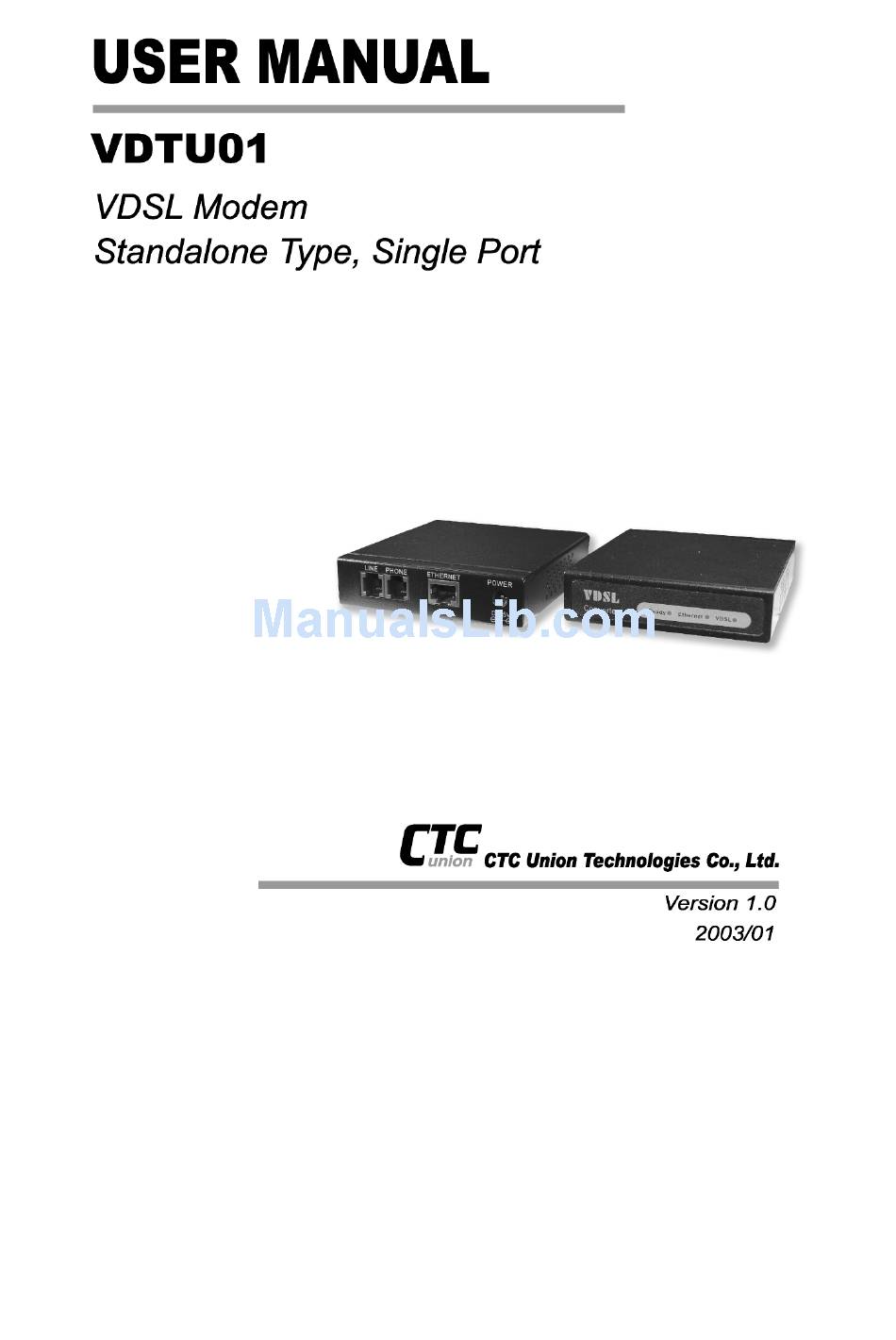

CTC Union VDTU01 User Manual

CTC Union VDTU01 User Manual

Vdsl modem, standalone type, single port
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VDTU01 and is the answer not in the manual?

Questions and answers

Related Manuals for CTC Union VDTU01

Summary of Contents for CTC Union VDTU01

  • Page 2: Table Of Contents

    VDSL. CTC Union Content Contents 1. Unpacking Information Check List ---------------------------------------------------- 1 2. Installation Hardware Installation -------------------------------------- 2 Pre-Installation Requirements --------------------------- 2 General Rules ----------------------------------------------- 3 Connecting the Converter -------------------------------- 3 Connecting the RJ-11/RJ-45 Ports-------------------------- 4 2. Hardware Description Front Indicators---------------------------------------------- 7 Rear Connectors-------------------------------------------- 9 Power On ----------------------------------------------------- 9 4.

  • Page 3: Unpacking Information

    VDSL. CTC Union 1. Unpacking Information Check List Carefully unpack the package and check its contents against the checklist Package Contents Ethernet to VDSL Converter Four plastic feet Diskette User Manual AC to DC 100V-240V Switching Power Adapter Ethernet Straight-through cable RJ-11 cable Please inform your dealer immediately for any missing, or damaged parts.

  • Page 4: Hardware Installation

    VDSL. CTC Union 2. Installing the Converter Hardware Installation This chapter describes how to install the converter and establishes network connections. You may install the converter on any level surface (e.g., a table or shelf). However, please take note of the following minimum site requirements before you begin.

  • Page 5: General Rules

    VDSL. CTC Union General Rules Before making connections to the converter, note the following rules: Ethernet Port (RJ-45) All network connections to the Converter Ethernet port must be made using Category 5 UTP for 100Mbps; Category 3,4 UTP for 10Mbps No more than 100 meters of cabling may be use between the MUX or HUB and an end node.

  • Page 6: Connecting The Rj-11/Rj-45 Ports

    VDSL. CTC Union Connecting the RJ-11 Ports 1. The Converter’s RJ-11 ports support the transmission of data up to 10Mbps across existing phone wiring, without interfering with standard voice transmissions, easy-to-use does not require the installation of any additional wiring. Every RJ-11 modular phone jack in the home can become a port on the LAN.
  • Page 7 VDSL. CTC Union 1. The RJ-11 port supports 10 Mbps connections. When inserting a RJ-11 plug, be sure the tab on the plug clicks into position to ensure that it is properly seated. 2. Do not plug a RJ-11 phone jack connector into the Ethernet port (RJ-45 port).
  • Page 8 VDSL. CTC Union...

  • Page 9: Hardware Description

    VDSL. CTC Union 3. Hardware description This section describes the important parts of the converter. It features the front indicators and rear connectors. 3.1 Front Indicators The following figure shows the front panel. Figure Chapter 2.2 Front Indicators Three LED Indicators. At a quick glance of the front panel, it will be easy to tell if the converter has power, if it has signal from its Ethernet RJ-45 port and if there is phone line signal RJ-11port...

  • Page 10: Power On

    VDSL. CTC Union Rear Panel The following figure shows the rear connectors Figure Chapter 2.3 Rear Connectors Converter Rear Connectors _____________________________________________________ Connectors Description Type Line For connecting to the RJ-11 wall jack RJ-11 Using a RJ-11 cable ______________________________________________________ Phone For connecting to the telephone or Fax RJ-11 or ISDN modem _____________________________________________________________...

  • Page 11: Applications

    VDSL. CTC Union 3. Applications APPLICATION FOR HOME NETWORKING The 10Mbps Converter is used to connect any device equipped with a standard 10/100Mbps Ethernet port to a VDSL LAN. The Converter have been designed to operate on the telephone wire installed in homes throughout the world.

  • Page 12: Appendix A Cable Requirement

    VDSL. CTC Union Appendix A: Cable Requirements A CAT 3,4 or 5 UTP (unshielded twisted pair) cable is typically used to connect the Ethernet device to the converter. A 10Base-T cable often consists of four pairs of wires, two of which are used for transmission.
  • Page 13 VDSL. CTC Union Standard telephone wire of any gauge or type-flat, twisted or quad is used to connect the Converter to the telephone network. A telephone cable typically consists of three pairs of wires, one of which is used for transmission.
  • Page 14 VDSL. CTC Union Appendix B: Product Specification Product Name：VDSL To Ethernet Converter (VDSL Modem) Application：Home networking solution Product Specification： Compliant with IEEE 802.3 & 802.3u Ethernet Standards Compliant with ETSI, ITU, ANSI VDSL standards 10/100M auto-sensing RJ-45 Ethernet ports x 1 10Mbps VDSL RJ-11 port x 1 POTS / ISDN Splitter port RJ-11 x 1 Splitter on Board...

  • Page 15: Appendix C Trouble Shooting

    VDSL. CTC Union Appendix C: Troubleshooting Diagnosing the Converter’s Indicators The Converter can be easily monitored through its comprehensive panel indicators. These indicators assist the network manager in identifying problems the hub may encounter. This section describes common problems you may encounter and possible solutions 1.

  • Page 16: System Diagnostics

    VDSL. CTC Union 3. Symptom: I had a VDSL link. But, after disconnecting the line for several minutes, there is no link any more. Solution: This is normal behavior for the modem. A link watchdog Is activated in the VDSL modem, when ever is no link after a specified time.
  • Page 17 VDSL. CTC Union via auto-negotiation. If auto-negotiation fails, then communications are set to half duplex by default. Based on this type of industry-standard connection policy, if you are using a full-duplex device that does not support auto-negotiation, communications can be easily lost (i.e., reset to the wrong mode) whenever the attached device is reset or experiences a power fluctuation.

  • Page 18: Appendix D Link Watch Dog (Lwg)

    VDSL. CTC Union Appendix D: Link Watch Dog (LWD) I had a VDSL link. But, after disconnecting the line for about eleven minute, there is no link any more. Is this normal? Yes, this is normal behavior for the modem. A Link Watchdog (LWD) is activated in the CPE whenever there is no link after a specified time (Eleven Seconds) Why do I need an LWD?

  • Page 19: Appendix E Compliant And Safety Information

    VDSL. CTC Union Appendix E: Compliance and Safety Information FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a computing device, pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 20: Important Safety Instructions

    VDSL. CTC Union equipment. If they do, you will be notified in advance in order for you to make necessary modifications to maintain uninterrupted service. This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs. Important Safety Instructions Caution：The direct plug-in wall transformer serves as the main disconnect for the product.
