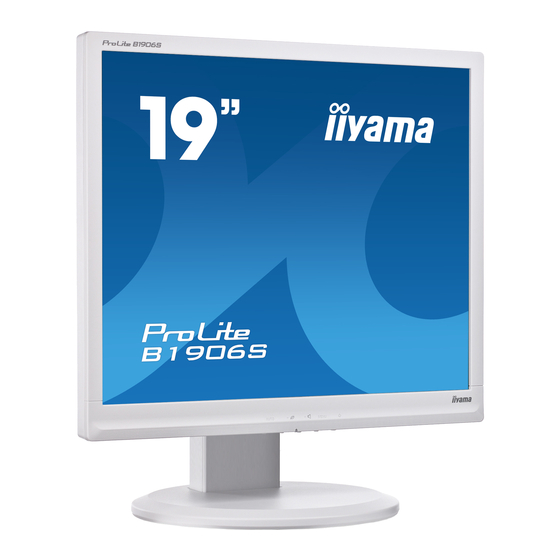

Iiyama ProLite B1906S-1 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

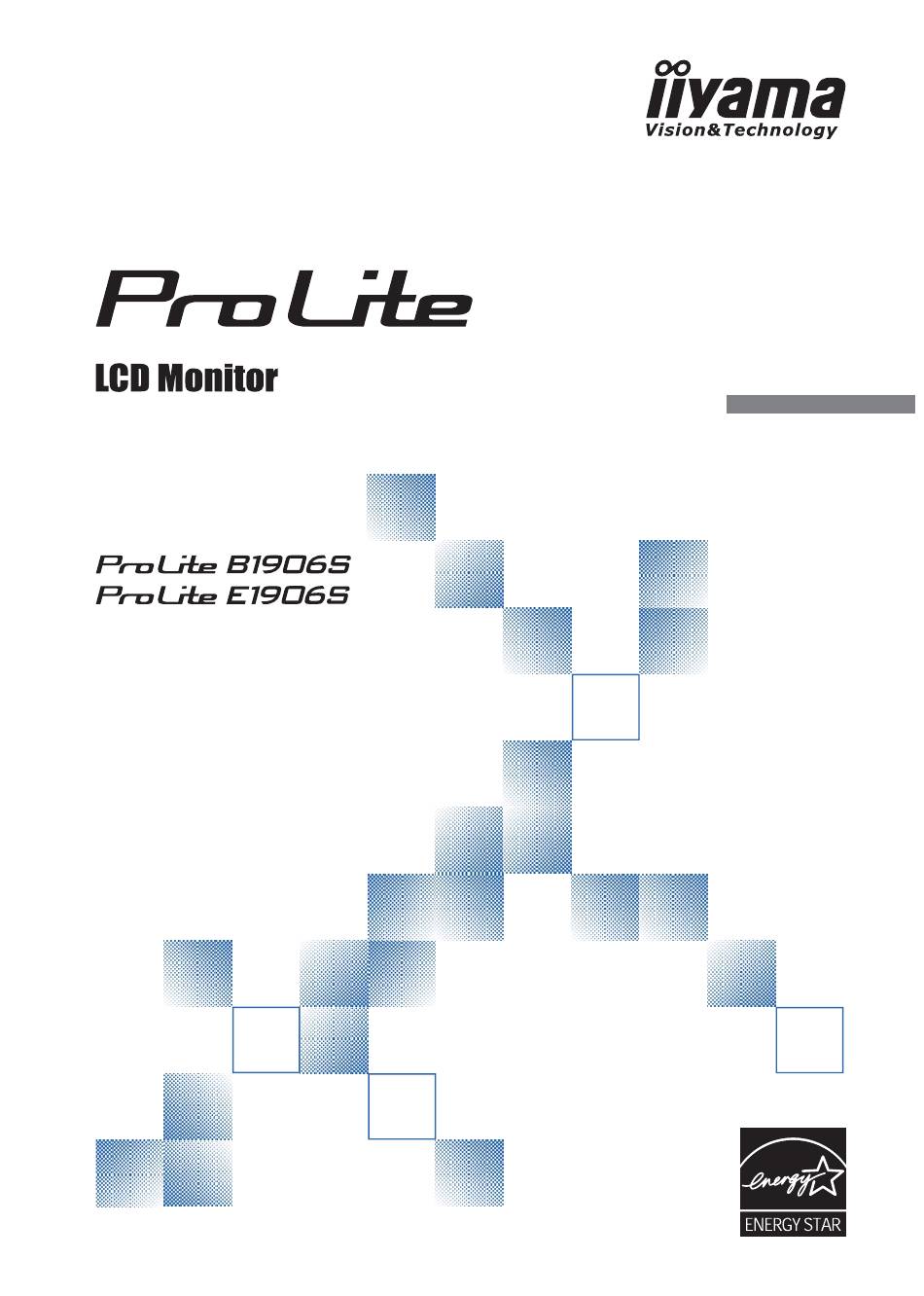

USER MANUAL
ENGLISH
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes
t o r e a d c a r e f u l l y t h r o u g h t h i s b r i e f b u t
comprehensive manual before installing and
switching on the monitor. Please keep this
manual in a safe place for your
future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLite B1906S-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Iiyama ProLite B1906S-1

Summary of Contents for Iiyama ProLite B1906S-1

  • Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes t o r e a d c a r e f u l l y t h r o u g h t h i s b r i e f b u t comprehensive manual before installing and switching on the monitor.
  • Page 3 Congratulations! This display is designed for both you and the planet! The display you have just purchased carries the TCO Certified label. This ensures that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on the climate and our natural environment.
  • Page 4  We reserve the right to change specifi cations without notice.  All trademarks used in this user manual are the property of their respective owners.  As an ENERGY STAR ® ® Partner, iiyama has determined that this product meets the ENERGY STAR guidelines for energy effi ciency.

  • Page 5: Table Of Contents

    DIMENSIONS : ProLite B1906S ..............28 DIMENSIONS : ProLite E1906S ..............28 COMPLIANT TIMING ..................29 We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com...

  • Page 6: For Your Safety

    STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fi re or electric shock.
  • Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.

  • Page 8: Special Notes On Lcd Monitors

    Power Switch for hours.  Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself. CUSTOMER SERVICE ...

  • Page 9: Before You Operate The Monitor

    CHEKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce.

  • Page 10: Fitting And Removal Of Base : Prolite B1906S

    FITTING AND REMOVAL OF BASE : ProLite B1906S The monitor is supplied complete with a stand-base. If you prefer to wall mount the monitor, please follow the instructions below to remove the stand-base. Be sure to include the stand with the monitor if it is necessary to return the unit.

  • Page 11: Fitting And Removal Of Base : Prolite E1906S

    FITTING AND REMOVAL OF BASE : ProLite E1906S Install the stand on a stable surface. The monitor may cause injury or damage if it  CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ...

  • Page 12: Controls And Connectors : Prolite B1906S

    CONTROLS AND CONNECTORS : ProLite B1906S <Back> <Front> A Power Switch ( B Menu / Select Button (MENU) C + / Volume Button ( + ) D - / ECO Button ( - ) E Auto Button (AUTO) F Power Indicator Blue: Normal operation NOTE...

  • Page 13: Controls And Connectors : Prolite E1906S

    CONTROLS AND CONNECTORS : ProLite E1906S <Back> <Front> A Power Switch ( B Menu / Select Button (MENU) C + / Volume Button ( + ) D - / ECO Button ( - ) E Auto Button (AUTO) F Power Indicator Blue: Normal operation NOTE...

  • Page 14: Connecting Your Monitor : Prolite B1906S

    The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce.  For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama offi...

  • Page 15: Connecting Your Monitor : Prolite E1906S

    The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce.  For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama offi...

  • Page 16: Computer Setting

    Change to the desired signal timing listed on page 29: COMPLIANT TIMING.  Windows 95/98/2000/Me/XP/Vista/7 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP/Vista/7 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied.

  • Page 17: Adjusting The Height And The Viewing Angle : Prolite B1906S

    ADJUSTING THE HEIGHT AND THE VIEWING ANGLE : ProLite B1906S  For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference. ...

  • Page 18: Operating The Monitor

    OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 29. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 20 for SCREEN ADJUSTMENTS.

  • Page 19: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS Luminance Luminance Contrast Brightness Picture Mode Standard Adjustment Item Problem / Option Button to Press Too dull Contrast Too intense Too dark Brightness * Too bright Normal Mode1 Brightness of back-light is reduced. Direct Mode2 Brightness of back-light is reduced more than Mode1. Mode3 Brightness of back-light is reduced more than Mode2.
  • Page 20 Image Setup Image Setup Clock Only Analog Input Phase H.Position V.Position Adjustment Item Problem / Option Button to Press Too narrow Clock* Too wide Phase* To correct fl ickering text or lines Too left H. Position Too right Too low V.
  • Page 21 Color Temp. Color Temp. Gamma Mode1 Color Temp. Warm User-R User-G User-B Adjustment Item Problem / Option Button to Press Mode1 Normal Gamma Mode2 Dark Mode3 High contrast Warm Greenish white Normal Yellowish white Cool Bluish white Color Temp. User-R Too weak User User-G...
  • Page 22 OSD Setup OSD Setup H.Position V.Position Timeout Language English Adjustment Item Problem / Option Button to Press OSD is too left H.Position OSD is too right OSD is too low V.Position OSD is too high You can set the OSD display duration time Timeout between 5 and 60 seconds.
  • Page 23 Others Others Reset Signal Select Auto Information Resolution : 800(H)＊600(V) H.Frequency : 38KHz V.Frequency : 60Hz Adjustment Item Problem / Option Button to Press Factory-preset data is restored. Reset Return to Menu. Auto Select the signal input automatically. Signal Select D-sub Select the Analog input.
  • Page 24 Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations.  Volume: Press the + Button when the Menu is not displayed. Adjustment Item Problem / Option Button to Press Too soft Volume Too loud Only Analog Input...

  • Page 25: Screen Adjustments

    If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com).
  • Page 26 C Press the Auto Button. (Auto Adjust) D Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. E Adjust the V.Position so that the top and bottom of the picture frame will fi...
  • Page 27 G Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern.   In case the strong fl icker or blurs remain on a part of the screen, repeat steps F and NOTE NOTE G because the Clock may not be adjusted correctly.

  • Page 28: Power Management Feature

    POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer.

  • Page 29: Trouble Shooting

    2. Consult the following items if you cannot fi nd an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...

  • Page 30: Recycling Information

     The Audio Cable is properly connected. A strange noise is heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLESHOOTING / RECYCLING INFORMATION...

  • Page 31: Appendix

    APPENDIX SPECIFICATIONS : ProLite B1906S Size Category 19" LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 19" (48cm) Pixel pitch 0.294mm H × 0.294mm V Brightness 250cd/m (Typical) Contrast ratio 800 : 1 (Typical), ACR Function Available Viewable angle Right / Left : 80 degrees each, Up : 75 degrees, Down: 80 degrees (Typical) Response time 5ms (Black, White, Black)

  • Page 32: Specifications : Prolite E1906S

    SPECIFICATIONS : ProLite E1906S Size Category 19" LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 19" (48cm) Pixel pitch 0.294mm H × 0.294mm V Brightness 250cd/m (Typical) Contrast ratio 800 : 1 (Typical), ACR Function Available Viewable angle Right / Left : 80 degrees each, Up : 75 degrees, Down: 80 degrees (Typical) Response time 5ms (Black, White, Black)

  • Page 33: Dimensions : Prolite B1906S

    DIMENSIONS : ProLite B1906S 409.0mm/16.1" 378.5mm/14.9" 59.0mm/2.3" ( ): Maximum adjustment range DIMENSIONS : ProLite E1906S 409.0mm/16.1" 59.0mm/2.3" 378.5mm/14.9" APPENDIX...

  • Page 34: Compliant Timing

    COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 25.175MHz 31.469kHz 59.940Hz 31.500MHz 37.500kHz 75.000Hz 640 × 480 31.500MHz 37.861kHz 72.809Hz 35.156kHz 56.250Hz 36.000MHz 37.879kHz 60.317Hz 40.000MHz SVGA 800 × 600 VESA 46.875kHz 75.000Hz 49.500MHz 48.077kHz 72.188Hz 50.000MHz 48.363kHz 60.004Hz 65.000MHz 1024 ×...
