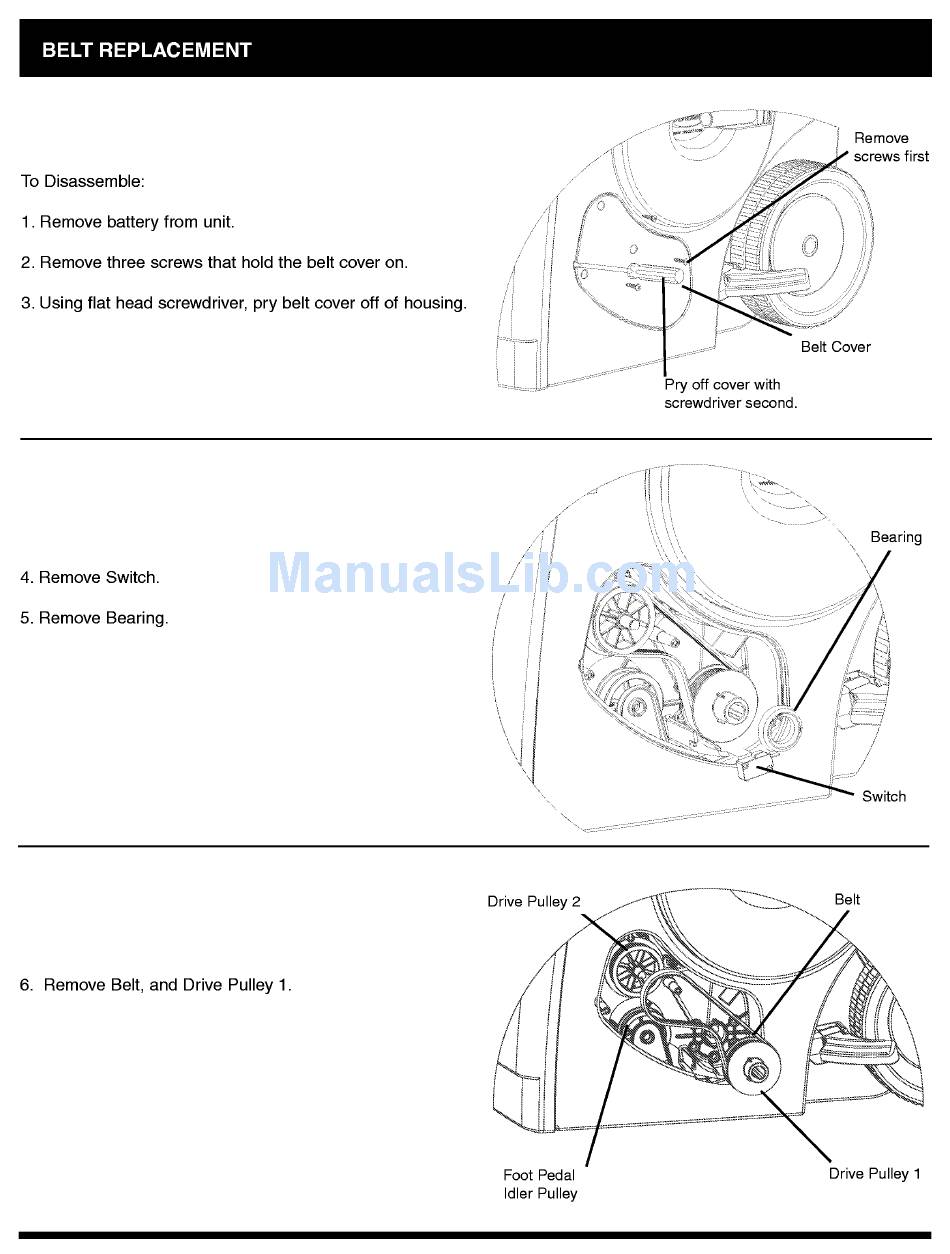

BELT REPLACEMENT
To Disassemble:
1/
1. Remove battery from unit.
I
I
2. Remove three screws that hold the belt cover on.
/.
3. Using flat head screwdriver, pry belt cover off of housing.
Re move
screws first
Belt Cover
screwdriver second.
4. Remove Switch.
5. Remove Bearing.
Bearing
I
N
N
6. Remove Belt, and Drive Pulley 1.
Foot Pedal
Drive Pulley 1
Idler Pulley
