5.6.4 KEYBOARD/POINTING DEVICE INTERFACE CONNECTOR

The legacy model provides separate PS/2 connectors for the keyboard and pointing device. Both
connectors are identical both physically and electrically. Figure 5-7 and Table 5-14 show the
connector and pinout of the keyboard/pointing device interface connectors.

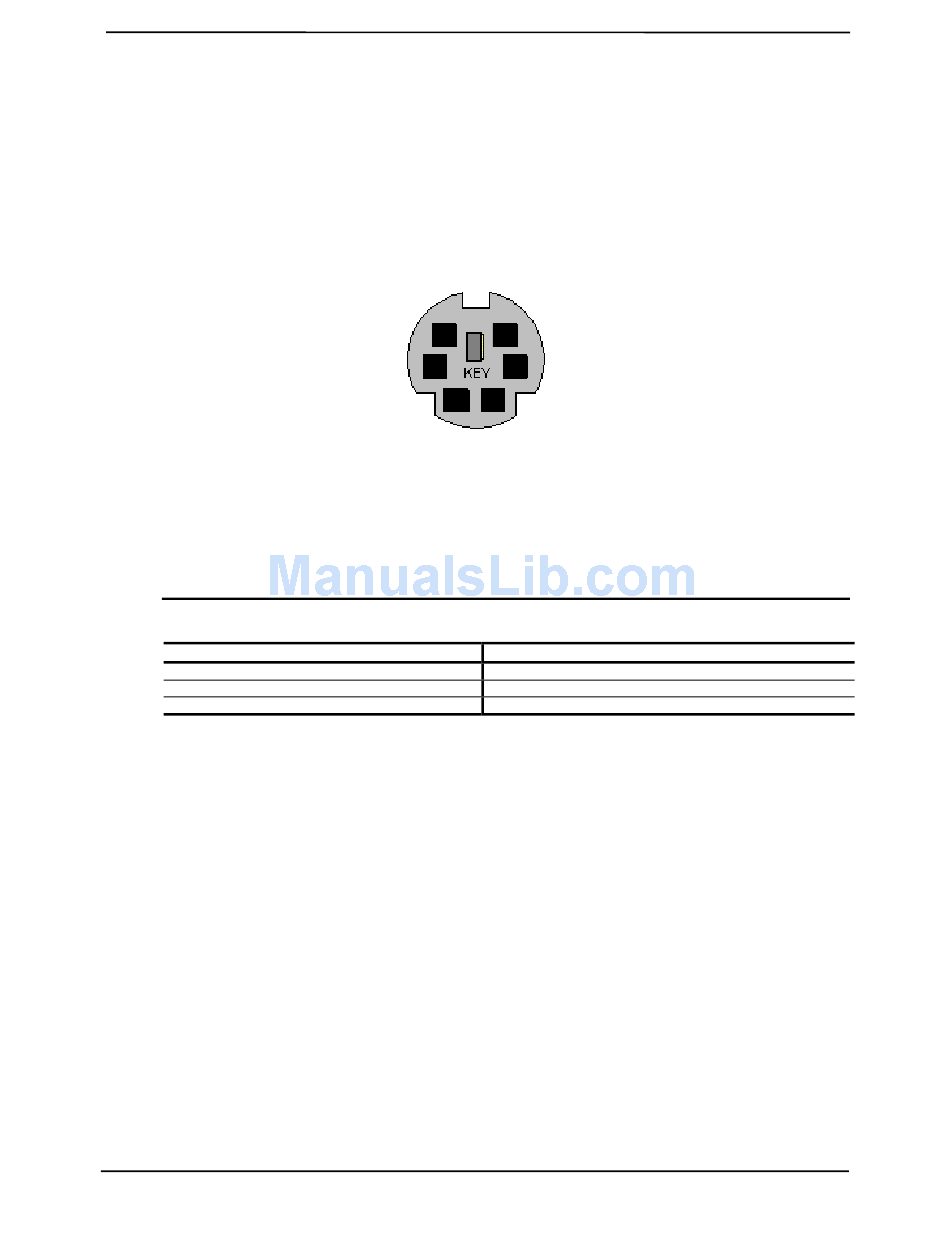

Figure 5-7. Keyboard or Pointing Device Interface Connector
Table 5–14. Keyboard/Pointing Device Connector Pinout
Pin Signal
1 DATA
2 NC
3 GND
6
4
2
(as viewed from rear of chassis)
Table 5-17.
Keyboard/Pointing Device Connector Pinout
Description
Data
Not Connected
Ground
Compaq iPAQ Series of Desktop Personal Computers
Second Edition - February 2001
Technical Reference Guide
5
3
1
Pin Signal
4 + 5 VDC
5 CLK
6 NC
Description
Power
Clock
Not Connected
