Summary of Contents for Hoover WDYN P

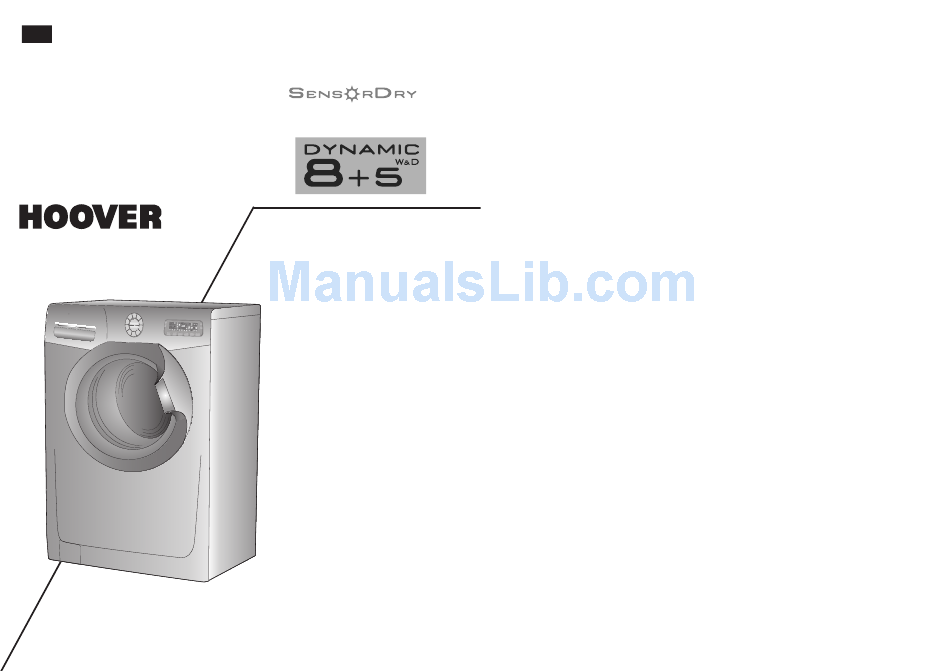

- Page 1 WDYN P User instructions...
-
Page 2: Table Of Contents
Setting up and Installation Control Description Table of Programmes Hoover is also able to offer a vast range of other household appliances: washing machines, dishwashers, washer-dryers, cookers, microwave ovens. Traditional ovens and hobs, Selection refrigerators and freezers. -
Page 3: General Points On Delivery
Do not touch the appliance with wet or damp hands or feet. Check that the machine has not incurred damage during transport. If this is the case, contact your nearest Hoover Centre. Do not use the appliance when bare-footed. WARNING: DURING THE WASHING CYCLE, THE WATER CAN REACH A TEMPERATURE OF 90°C. -
Page 4: Technical Data
WATER PRESSURE min. 50 max. 800 Should the power supply cord of this appliance be damaged, it must be replaced by an authorised SUPPLY VOLTAGE 220-240 Hoover service centre or qualified person in order to avoid a hazard. - Page 5 Fix the sheet of corrugated material on the bottom as shown CHAPTER 5 in picture. SETTING UP INSTALLATION Connect the fill hose to the cold water tap only. The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused. Move the machine near its permanent position without the packaging base.
- Page 6 On/off button if the power supply cord of this appliance is damaged. it must be replaced by an Programme selection buttons authorised Hoover service centre or qualified person in order to avoid a hazard. Spin Speed button Wash Temperature button...
- Page 7 DESCRIPTION OF CONTROL PROGRAMME SELECTION BUTTONS Pressing a programme button the display lights up to show the settings for the programme selected. “Kg MODE” (Function active only on Cotton and Synthetics programmes) N.B. TO SWITCH THE MACHINE OFF PRESS THE ON/OFF Through every wash phase “Kg MODE”...
- Page 8 WASH TEMPERATURE BUTTON The option buttons should be selected before pressing the START button. When a programme is selected on the display is show the If an option is selected but it is not compatible with the recommended wash temperature. selected programme then the symbol first flashes and then The temperature button can be used to decrease or increase goes off.
- Page 9 DRYING SELECTION BUTTON EASY IRON BUTTON After pressing the ON/OFF button, select before the required The Easy Iron function minimizes creases as much as possible washing or drying programme and then press the button to with a uniquely designed anti-crease system that is tailored select the required drying degree;...
- Page 10 “DIGITAL” DISPLAY 4) DOOR LOCKED INDICATOR The “Door Locked” indicator light is illuminated when the door is The display’s indicator system allows you to be constantly fully closed and the machine is ON. hm m informed about the status of the machine: When START is pressed on the machine with the door closed the indicator will flash momentarily and then illuminate.
- Page 11 8) BUTTONS INDICATOR LIGHT 10) DRYING PROGRAMME INDICATORS These light up when the relevant buttons are pressed. The indicators display the type of the drying programme: If an option is selected but it is not compatible with the Automatic Programmes: By selecting one of these 3 selected programme then the symbol first flashes and then automatic programmes, the washer-dryer will calculate the goes off.
-
Page 12: Table Of Programmes
TABLE OF PROGRAMMES CHAPTER 7 PROGRAM FOR: RECOMMENDED CHARGE DETERGENT PROGRAMME WEIGHT TEMP. TEMP. SELECTION °C °C BUTTONS: Resistant fabrics Up to: 40° Cotton, linen 90° Mixed fabrics and synthetics Up to: 40° Cotton, mixed fabrics, synthetics 60° Up to: Please read these notes Very delicate fabrics 40°... -
Page 13: Selection
SPECIAL “RINSE” PROGRAMME SPORTS This programme carries out three rinses with a intermediate Hoover has given sports items their own wash care spin (which can be reduced or excluded by using the correct programme. button). It can be used for rinsing any type of fabric, eg. use The washing machine has a unique Sportswear programme. -
Page 14: Detergent Drawer
RAPID PROGRAMME CHAPTER 9 The Rapid programme allows a washing cycle to be completed in just 14 minutes! This programme is particularly suited to slightly dirty cottons and mixed fabrics. DETERGENT DRAWER Using the Wash Time button on the Rapid cycle will enable you to select either a 14, 30 or 44 minute wash cycle. -
Page 15: The Product
CHAPTER 10 CHAPTER 11 THE PRODUCT CUSTOMER AWARENESS IMPORTANT: A guide environmentally friendly and economic use of your When washing heavy rugs, bed spreads and other heavy appliance. articles, it is advisable not to spin. To be machine-washed, woollen garments and other articles in wool must bear the “Machine Washable Label”. -
Page 16: Washing
WASHING Ensure that the water inlet tap is turned on. And that the discharge tube is in place. VARIABLE CAPACITY PROGRAMME SELECTION This washing machine automatically adapts the level of the water Switch on the appliance by the ON/OFF button to the type and quantity of washing. -
Page 17: Drying Cycle
CHAPTER 12 IMPORTANT NEVER OPEN THE DOOR AFTER THE DRYING CYCLE HAS BEGUN - WAIT UNTIL THE COOL DOWN PERIOD DRYING PROVIDED FOR BY THE CYCLE. To minimize the risk of fire in a tumble dryer, the following should be observed: Items that have been spotted or soaked with vegetable or Only dry pre-spun laundry... - Page 18 DOUBLE-SKIN DOOR CHAPTER 13 The appliance door is fitted with a protective shield to prevent contact with the glass door which can reach high temperatures, during the drying cycle. AUTOMATIC WASHING/DRYING WARNING: DO NOT TOUCH DOOR FOR ANY REASON. WARNING: ONLY A MAXIMUM 5 KG OF DRY LAUNDRY CAN BE LOADED OTHERWISE THE DRIED LAUNDRY WILL BE NOT SATISFACTORY.
-
Page 19: Cleaning And Routine Maintenance
If you wish to select a timed drying cycle, press the “drying CHAPTER 14 selection” button until the required time indicator lights up. Press the "Start/Pause" button. CLEANING AND ROUTINE MAINTENANCE At the end of the wash phase the display will shown the drying time remaining. - Page 20 If the fault should persist, contact a Hoover Customer Service Centre. For prompt servicing, give the model of the washing machine, to be found on the label placed on the cabinet inside of the porthole or on the guarantee certificate.
- Page 21 This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste.
