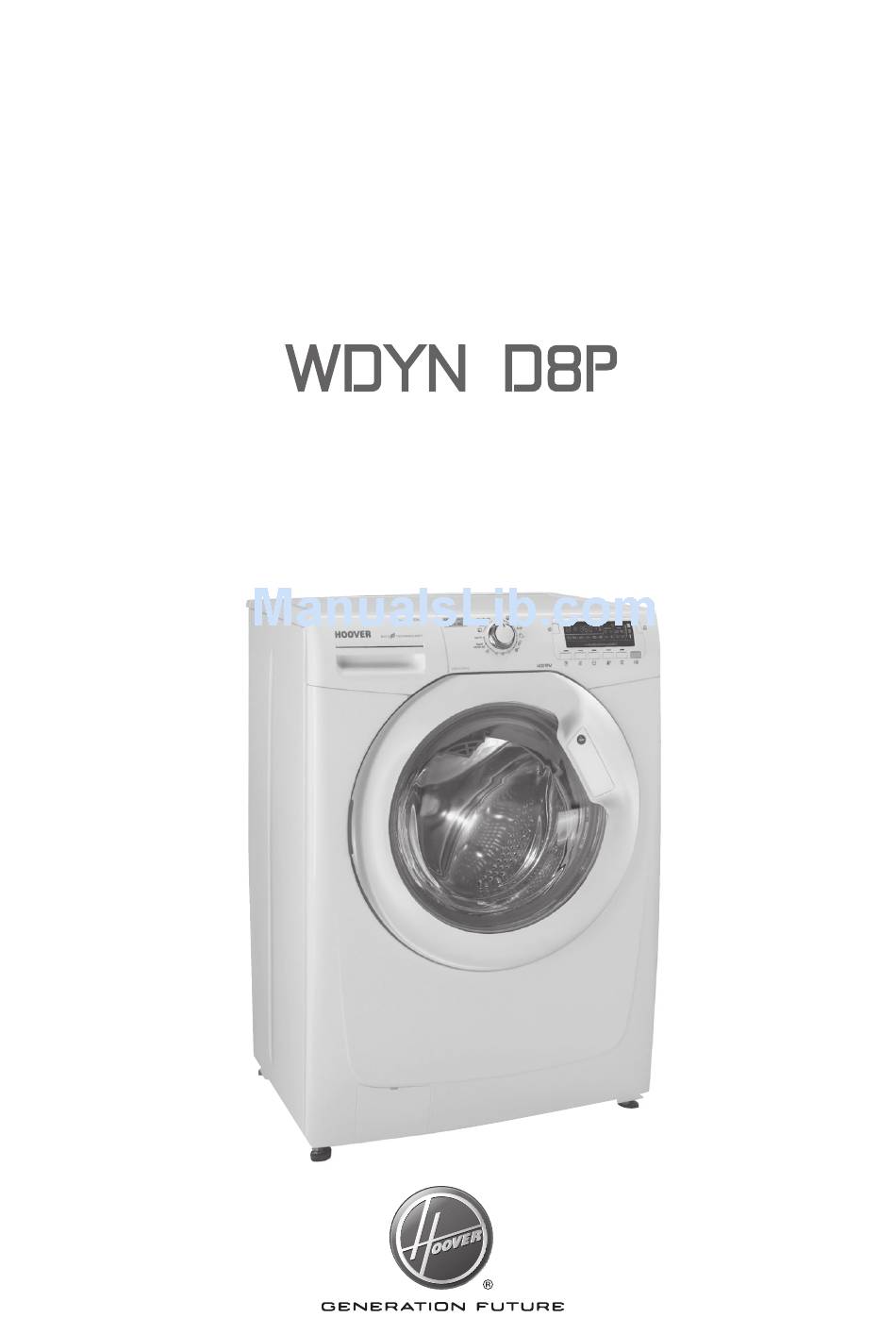

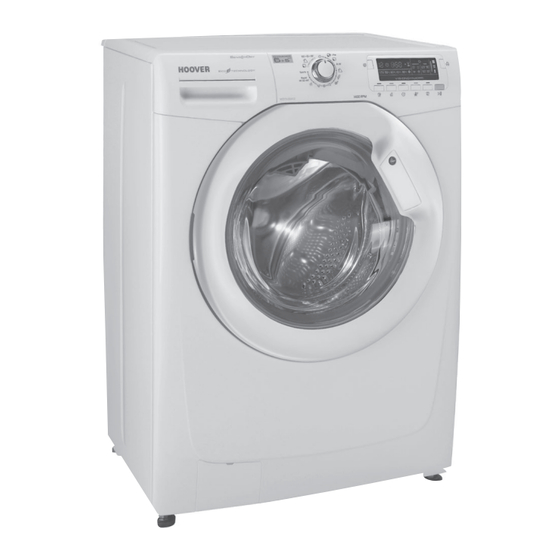

- Page 1 Instruction Book Instructions for installation and use AUTO...
-
Page 2: Table Of Contents
Contents Introduction Delivery Information Guarantee Customer Service Caring for the Environment Warning and Safety Instructions Unpacking the Product Installation Electricity Supply Water Supply Connecting the Cold Water Supply Connecting the Drainage Pipe Levelling the Machine Testing the Installation Description of the Machine The Control Panel Digital Display Wash Options... -
Page 3: Introduction
Serial Number (16 digits): _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Our customer service advisors will require this information whenever you contact Hoover. Please keep all documentation in a safe place for future reference or for any future owners. -
Page 4: Customer Service
Customer Service At Hoover, we aim to make appliances that are reliable and long lasting. However, should your appliance need to be serviced during its working life, no one is more qualified to maintain your appliance than our own Hoover Service engineers. To book... -
Page 5: Caring For The Environment
Together, we share the responsibility to safeguard our environment for future generations. At Hoover, that means continually developing new, intelligent technologies to produce electrical appliances that perform more efficiently and use less electricity and less water. This significantly reduces the carbon footprint from your appliance. -
Page 6: Warning And Safety Instructions
Warning and Safety Instructions This machine is solely for domestic use, i.e. to wash, rinse and spin dry household textiles and garments. Do not touch the appliance when hands or feet are damp or wet. Do not lean on the door when loading the machine or use the door to lift or move the machine. - Page 7 If the appliance is not running properly or breaks down, switch off the power, turn off the tap and do not tamper with the appliance. Contact an authorised serviceman and ask them to use official Hoover spare parts. Warning! The company denies all liability if and when these instructions are not...
-
Page 8: Unpacking The Product
Unpacking the Product Remove the machine from its packaging close to the final location of the machine. Step 1. Remove all outer packaging from the machine. Check there is no damage to the machine before continuing the installation process. Step 2. Carefully cut through the hose-retaining clip at the rear of the machine, taking care not to cut the hose itself. -
Page 9: Installation
Installation Before installing the machine, ensure that the mains plug and water supply valves are easily accessible from your chosen machine location. Make sure there is enough space for the machine. Select a space at least 600mm wide and 850mm high. Also leave enough space to open the door fully so you can load and unload it easily. -
Page 10: Water Supply
Water Supply This machine should only be connected to a cold-water supply. The cold-water pressure should be between 0.5 and 8 bar (0.05-0.8 Mpa). Do not connect the machine to a single outlet instantaneous water heater. Before connecting the fill hose, check that the water is running from the water supply tap to be used. -
Page 11: Connecting The Cold Water Supply
Connecting the Cold Water Supply Only one hose is required to install this machine to a cold water supply. Cold fill is an energy efficient system. Only the water required to wash the laundry is heated. There is no loss of heat in the pipeline from the hot water tank or the boiler. If your previous machine installation was hot and cold fill ensure that the hot tap is firmly closed to prevent leakage. -
Page 12: Connecting The Drainage Pipe
Connecting the drainage pipe This machine must be connected in accordance with the water supply regulations. Water bylaws prohibit connection to a surface water drain. Decide which plumbing option suits you best then follow the instructions below: Option 1 - Waste pipe connection (waste trap) Fit the hooked end support to the outlet pipe and position it at least 800mm off the floor. -
Page 13: Levelling The Machine
Levelling The Machine Your machine is heavy so care must be taken when moving it. We recommend that two people move the machine to avoid strain and possible injury. Take care not to damage flooring when moving the machine and do not drag or lift the machine by its door. - Page 14 Step 5. Switch off the machine at the end of the cycle by turning the Programme Selector to the OFF position. Step 6. Select the spin programme and press the Start Pause button to start the machine. If the machine takes longer than one minute to empty check the drain hose for kinks.
-
Page 15: Description Of The Machine
Description of the Machine The Hoover Washer Dryer details are indicated below: Control Detergent Panel Dispenser Door Handle Porthole Door Adjustable Feet Filter... -
Page 16: The Control Panel
The Control Panel Door Lock Indicator Programme Digital Wash Time Spin Speed Selector Selector Display Selector All in One Cottons 20° All Delicate Coloureds All Baby Synthetics 120’ 90’ Wash Dry 59’ Delicate & 60’ 30’ Rapid Low Dry 14’-30’-44’ High Dry Sports &... -
Page 17: Digital Display
Digital Display The easy-to-use Digital Display gives you total control of your wash cycle, whether it is adjusting the wash length using our Wash Time Selector, delaying the start of your wash, or adjusting the temperature and spin speed of your selected programme. The simplicity of the Digital Display understates the advanced technology, which clearly displays all the wash cycle information, putting you in control. -
Page 18: Delay Start
Drying Programme Indicators Hoover washer dryers incorporate an Automatic Sensor Drying function which takes the guesswork out of setting the drying time. You simply select the degree of dryness you require and the dryer automatically switches off when that level is reached. For added flexibility there are 3 Sensor Drying levels to choose from:... -
Page 19: Wash Options
Wash Options The following options should be chosen once the required programme has been selected and BEFORE pressing the Start Pause button. The indicator light on each option button will illuminate if that option has been selected. Night & Day Press this button (available for all the washing programmes) to reduce the intermediate spin speed to 400 rpm, where applicable;... -
Page 20: Spin Speed
Spin Speed The spin cycle is used to remove as much water as possible from the laundry without damaging your clothes. The recommended spin speed for each programme is already set to the highest level for that chosen programme. By pressing the Spin Speed button you can reduce the spin speed in 100rpm intervals. -
Page 21: Dry Options
DRY OPTIONS Once the washing cycle has finished, remove some of the clothes if necessary to reduce the load size to the maximum drying weight (see Programme Guide pg.26). Use the programme dial to select the heat level required. High Dry should be used for cottons or Low Dry for synthetics. -
Page 22: Automatic Features
Automatic Features KG Mode (Half Load) Available on the Cottons and Synthetics cycles, the intelligent sensor adjusts the water level and programme length throughout each phase of the cycle according to how much laundry you load into the machine. The KG Mode indicator will light up when the intelligent sensor is weighing the laundry. -
Page 23: Programme Descriptions
Programme Descriptions For handling the various types of fabric and their level of dirtiness in your laundry the washing machine has different programme groups according to type of wash, temperature, spin speed and duration (see Programme Guide). Once the programme is selected, the intelligent sensor will weigh the laundry using the KG Mode and adjust the critical elements of the wash cycle depending on the weight of the laundry to ensure perfect results (available on Cotton and Synthetic cycle). - Page 24 Delicate The cycle will consist of alternate periods of activity and pauses. This is particularly suitable for washing very delicate fabrics, as it creates a hand-washing effect. Washing and rinsing are carried out using a high water level to provide the best results. Rapid The Rapid programme allows a washing cycle to be completed in just 14 minutes! This programme is particularly suited to slightly dirty cottons and mixed fabrics.
- Page 25 High Dry High temperature drying programme for Cottons and linen items, always refer to the care label. Low Dry Low temperature drying programme for synthetics and mixed fibres, always refer to the care label. Wash & Dry 59’ When you only have a few items to wash and dry in a hurry, this 59 minute cycle is the ideal time saver! Suitable for a light 1.5kg load size (e.g.
-
Page 26: Programme Guide
** Information for the test laboratories Programme Guide (see page 25) Programme Programme Fabric Type Fabric Type Water Water Water Water Spin Spin Temp Temp Temp Temp Speed Speed Load Load Load Recommended Recommended Size Size (C°) (C°) (C°) (C°) (RPM) (RPM) (kg) - Page 27 1) Using the Wash Time button on the Rapid cycle will enable you to select either a 14, 30 or 44 minute wash cycle. Detergent Automatic Drying Cycle Length of Programme Short Med. Long High Heat Heat available 1:42 2:17 2:55 2:01 2:36...
-
Page 28: Detergent
Detergent Recommendations on the use of detergent at various temperatures. When washing heavily soiled whites, we recommend using cotton programs of 60°C or above and a normal washing powder (heavy duty) that contains bleaching agents that at medium/high temperatures provide excellent results. For washes between 40°C and 60°C the type of detergent used needs to be appropriate for the type of fabric and level of soiling. -
Page 29: Laundry
Dispensing instructions The detergent drawer is split into 3 compartments: The first, labelled "1", is for detergent ● utilised during Prewash. The second, labelled "2", is for detergent ● utilised during the main wash. The third, labelled is for special additives ●... -
Page 30: Washing Advice
Washing Advice The following tips are designed to assist in getting the best results from your machine whilst using it in the most environmentally friendly and economical way. It is also important to understand the items to avoid in your laundry, to ensure the continued safe and reliable operation of your machine. -
Page 31: Running A Wash Cycle
Running a Wash Cycle This section summarises the main points when completing a wash cycle. For detailed explanations of features, options and details of the machine refer to the relevant section in the instruction manual. Preparing the laundry Select and sort the laundry according to the wash care labels found on each garment. Loading the laundry Open the door. - Page 32 the wash cycle, the KG Mode will weigh the clothes and update the wash time remaining on the display every five seconds until the weight has been determined. Do not try to open the door when the door locked indicator is on, nor open the In some programs in the initial phase of the cycle there are planned spin sequences to dispenser drawer during the wash programme.
-
Page 33: Drying Advice
Drying Advice In addition to the advice for washing your clothes, you should also follow the guideli- nes below when drying clothes. Sort the load before drying We recommend that you sort the laundry by the following methods: By drying care symbols, which are display on the clothing labels: ●... -
Page 34: Running A Dry Cycle
Running a Dry Cycle This section summarises the main points when completing a drying cycle. For detailed explanations of drying programmes, please refer to the relevant section in this manual. Sorting the laundry Once the wash cycle has finished, make sure the laundry does not exceed the recommended drying weight (see Programme Guide for details). - Page 35 Estimated drying times of Sensor Dry programmes Cottons Synthetics / Acrylics Programme Min 1 kg Max 5 kg Min 1 kg Max 4 kg From Up to From Up to Extra Dry 30 mins 230 mins 30 mins 170 mins From Up to From...
-
Page 36: Care And Maintenance
Care and Maintenance The washing machine needs very little maintenance, but regular attention to a few small details will ensure the continued performance of your washing machine. Do not use abrasive cleaners, scouring pads, solvent-based cleaners or polishes; wiping the outside of the machine with a damp cloth will suffice. Cleaning the soap dispenser It is advisable to clean the compartments occasionally to remove detergents and additives. -
Page 37: Maintenance Wash
Step 4. Turn the filter anti-clockwise until it stops in the vertical position. Remove the filter and clean. Step 5. Replace the filter and turn in a clockwise direction until locked in position. Replace the stopper in the hose and close the filter cover. We recommend that the filter be cleaned frequently, at least once a month. -
Page 38: Problem Solving Guide
A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call Hoover Service (tel: 08705 400 600); they may be able to assist you over the telephone. -
Page 39: The Door Will Not Open
Water on the floor around the washing machine... Is the fill hose tightened? If so, replace the rubber washers and re-tighten. ● Is the standpipe or the household drain blocked? If so, clear the blockage yourself ● or call a plumber. Is there clothing or dirt between the door gasket and the door glass? Ensure that ●... - Page 40 Remember, you may be charged for the service call if incorrect installation or misuse causes a problem with your machine. If the following error codes are displayed, switch OFF the machine and contact Hoover Service: 0, 1, 4, 5, 7 and 8.
-
Page 41: Power Failure
Open the door and remove the load. The door can be opened approximately 2 minutes after the power failure. Do not force open the door. Further Problem Solving advice can be found on the After Sales Service pages of our website www.hoover.co.uk... -
Page 42: After Sales Service
After Sales Service Customer Service At Hoover, we aim to make appliances that are reliable and long lasting. However, should your appliance need to be serviced during its working life, no one is more qualified to maintain your appliance than our own Hoover Service engineers. To book... - Page 43 A number of accessories can also be purchased using the above contact details. Brochures At Hoover, we produce a range of home appliances including vacuum cleaners, cooling appliances, washing machines, tumble dryers, dishwashers, cookers and built-in appliances. If you would like a brochure for any of our product ranges please call our head office...
- Page 48 ® Note: Hoover policy is one of continuous development and accordingly we reserve the right to alter specification without notice. The manufacturer declines all responsibility for errors printed in this instruction manual. Hoover Ltd. Pentrebach, Merthyr Tydfil, Mid Glamorgan, CF48 4TU...
