6.2 Serial IR receiver

44 IR Remote control
For the Barix Exstreamer 200 you can skip this section as
the IR receiver is built into the front of the device.
The use of the serial IR receiver makes sense only if the
device will be placed hidden (behind a wall, above the
ceiling etc.)

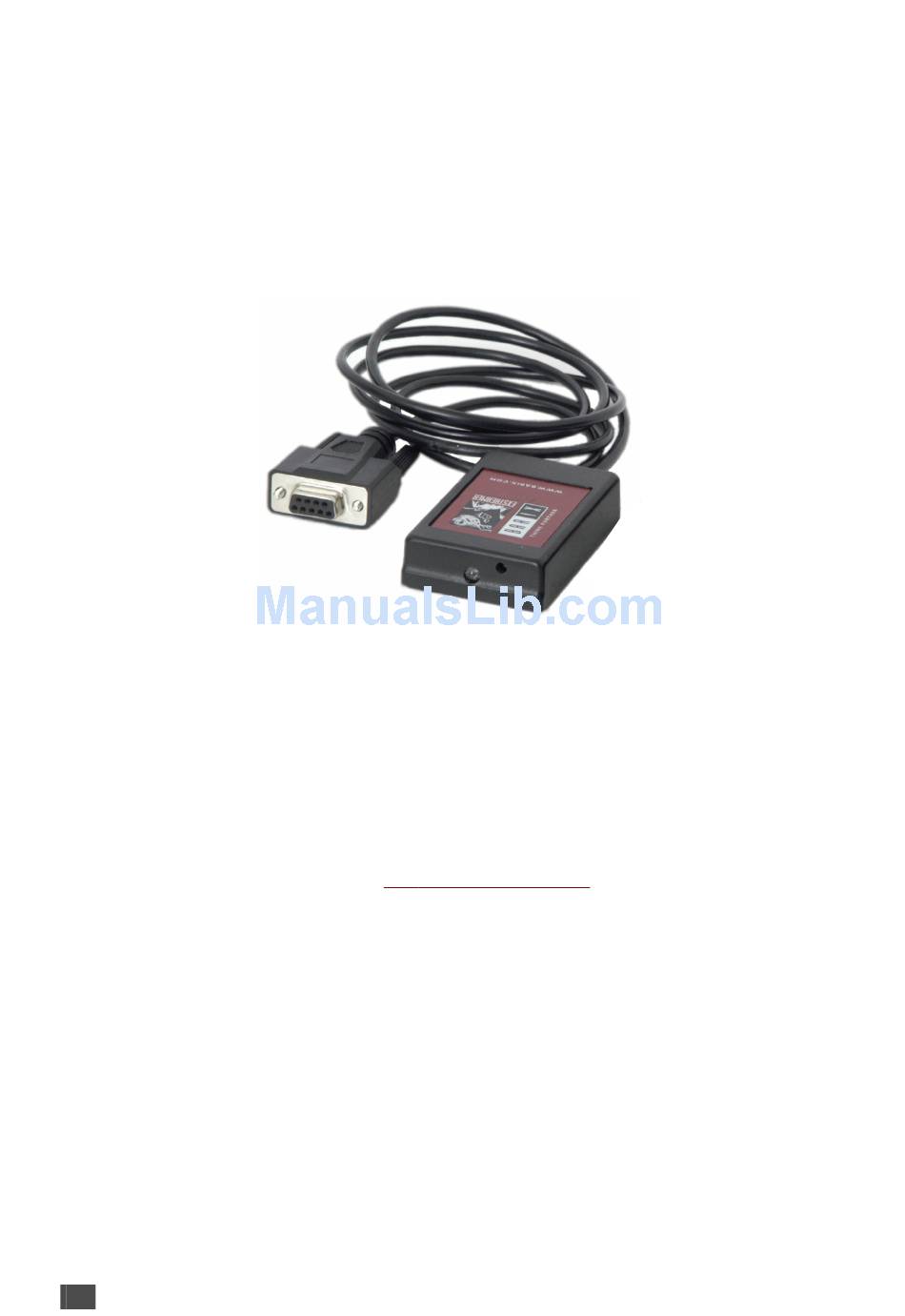

Plug the serial connector of the IR Serial receiver into the
serial port of the Barix Exstreamer. Make sure you have
line of sight with the IR receiver from where you want to
use the IR remote control.
On power up the red LED will be on until the Barix
Exstreamer has set the network and announced the IP
Address. Configure the IR input for the "Serial Dongle"
(see chapter 3.6 Advanced settings
Note: On the Exstreamer 100 the old Serial Dongle
(blue LED, produced in 2003) will not work. Use a new
Dongle instead (red LED, produced in 2006)
)
