Ergotron Neo-Flex Laptop Cart Assembly Instructions Manual

Ergotron Neo-Flex Laptop Cart Assembly Instructions Manual

Hide thumbs Also See for Neo-Flex Laptop Cart:

Advertisement

Quick Links

Important!
You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on the
product before attempting adjustments. This product should move smoothly and easily through the full range of motion and
stay where you set it. If movements are too easy or diffi cult or if product does not stay in desired positions, follow the adjustment
instructions to create smooth and easy movements. Depending on your product and the adjustment, it may take many turns to
notice a diff erence. Any time equipment is added or removed from this product, resulting in a change in the weight of the mounted
load, you should repeat these adjustment steps to ensure safe and optimum operation.
888-24-125-W-02 rev.J • 03/13
20"
(508mm)

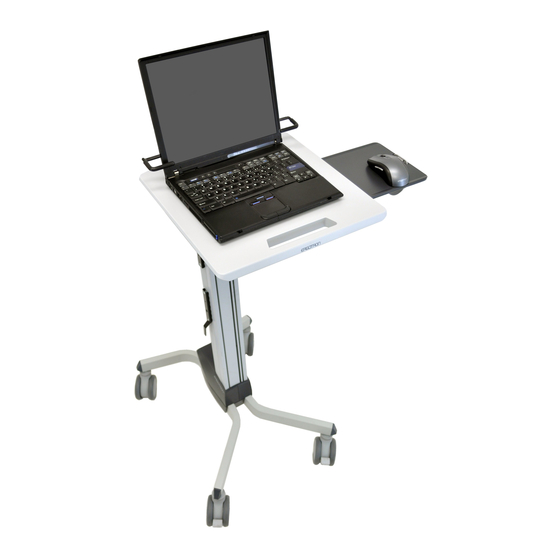

Neo-Flex Laptop Cart
3-15 lbs
12.5"-18"
(318-460 mm)
(1.36-6.8 kg)

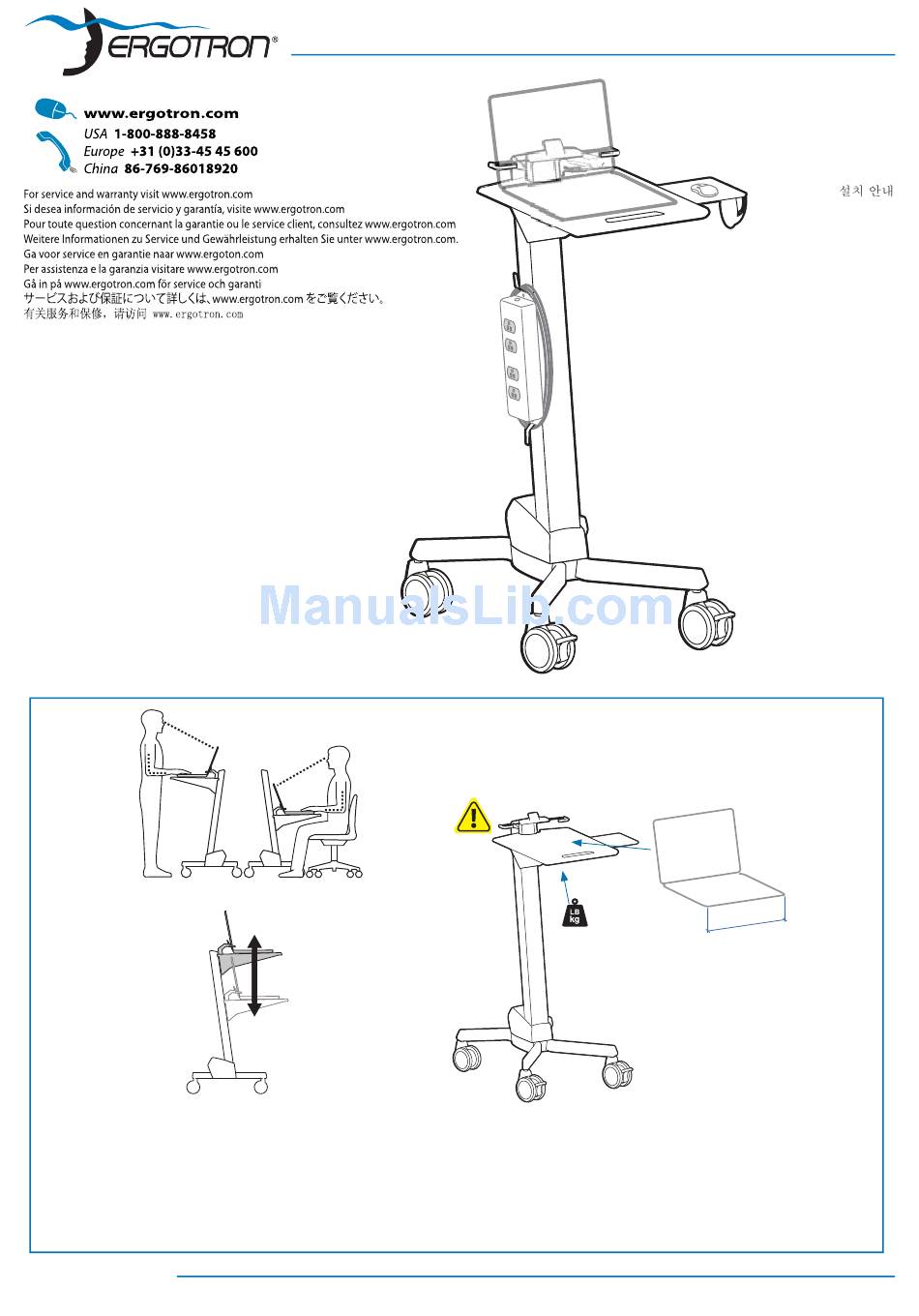

ASSEMBLY INSTRUCTIONS
Instrucciones de instalación
Notice d'assemblage
Montageanleitungen
Installatie instructies
Manuali d'Istruzione
1 of 9
