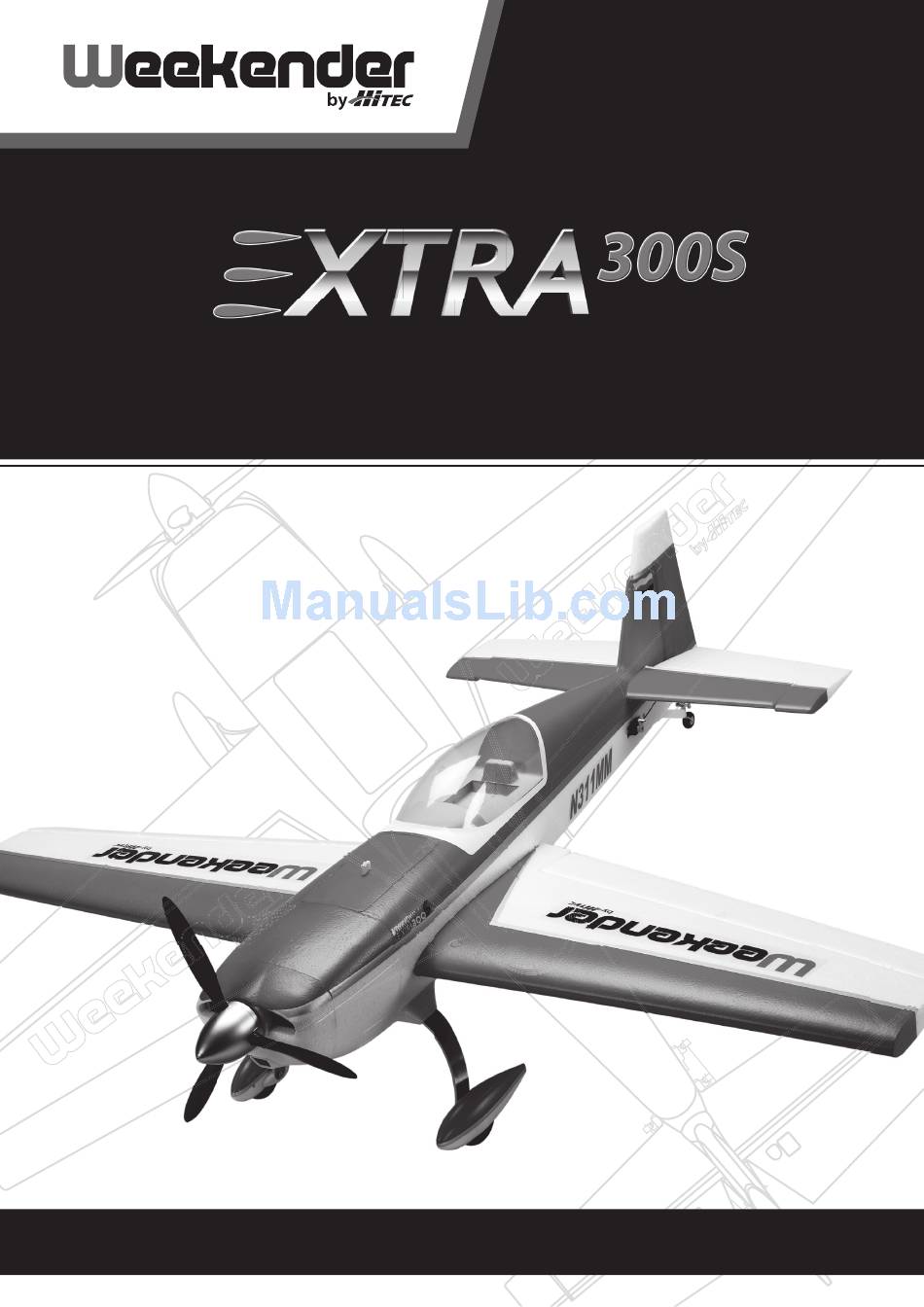

- Page 1 OPERATION MANUAL Ver 1.0 www.hitecrcd.com...
-
Page 2: Table Of Contents
table of contentS Section 1 Introduction ..................................3 Warnings and Safety Instructions ..........................3 Features and Specifications ............................4 Items Required to Ready This Model for Flight .......................4 Parts Layout and Listing ..............................4 Section 2 Assembly Instructions ..............................5 Tools Required for Assembly ............................5 Step 1: Main Landing Gear Assembly ........................5 Step 2: Horizontal Stabilizer Assembly .........................5 Step 3: Vertical Stabilizer Assembly ........................5... -
Page 3: Introduction
This section will provide more detailed explanations. The Weekender Extra 300S is a radio control model plane designed for novice pilots over the age of 14. Improp- er assembly or user negligence can lead to serious injury and/or property damage to yourself or other persons. -
Page 4: Features And Specifications
8 Minute + runtimes when used with recommended battery ITEMS REQuIRED TO READY THIS MODEL FOR FLIGHT The Weekender Extra 300S is a Plug and Play (P2GO) type model that requires additional items for operation. The items listed below are needed to fl y. •... -
Page 5: Assembly Instructions
Before Assembling the Extra 300S Keep in mind when assembling and fl ying the Extra 300S, that radio control model airplanes may cause injury or property damage when improperly fl own or mishandled. Always follow the warnings written in the instruc- tion manual. -
Page 6: Step 5: Attaching The Rudder
ASSEMBLY INSTRuCTIONS (cont.) SteP 5 SteP 6 Step 5: attaching the Rudder Step 6: connecting the Rudder control arm linkage Holding the top of the vertical stabilizer, snap the Take the remaining control linkage and slide the Z bend rudder into place ensuring that it moves freely on through the middle hole of the rudder control horn. -
Page 7: Step 9: Propeller Hub And Spinner Assembly
ASSEMBLY INSTRuCTIONS (cont.) SteP 9 Step 9: Propeller Hub and Spinner assembly Take the propeller hub and slide it through the base of the spinner assembly, then slide the propeller on the hub and spinner base. Install the washer and nut, do not tighten. Slide this assembly onto the motor shaft and tighten the nut. Place the spinner over the propeller and attach with the supplied screw. -
Page 8: Step 12: Balancing Your Model
ASSEMBLY INSTRuCTIONS (cont.) Step 12: balancing Your Model SteP 12 Check the center of gravity (CG) on your model by balancing it on your fi ngers. The CG should be about 3 ~ 3.4 inches (76 ~ 86 mm) behind the leading edge of the model as shown below. -
Page 9: Spare Parts
Section 4 SPARE PARTS 61020 61021 61022 Fuselage Main Wings Horizontal Stabilizer 61023 61024 61025 Vertical Stabilizer Cowling Main Landing Gear 61026 61027 61028 Wheel Covers Main Wheels Fixing Screws for Main Wheels 61029 61030 61031 Tail Landing Gear Spinner Propeller Connecting Shaft 61032 61033... -
Page 10: Service And Support
Hitec RCD uSA, Inc. or its authorized agents. Hitec RCD uSA, Inc. is not responsible for loss of use of the Weekender by Hitec model, or other incidental or conse- quential damages. under no circumstances shall the Manufacturer or any of its representatives be held liable for injury to persons or property damage resulting from the assembly of the product or from the use of the final user assembled product. - Page 11 NOTES...
- Page 12 www.hitecrcd.com...
