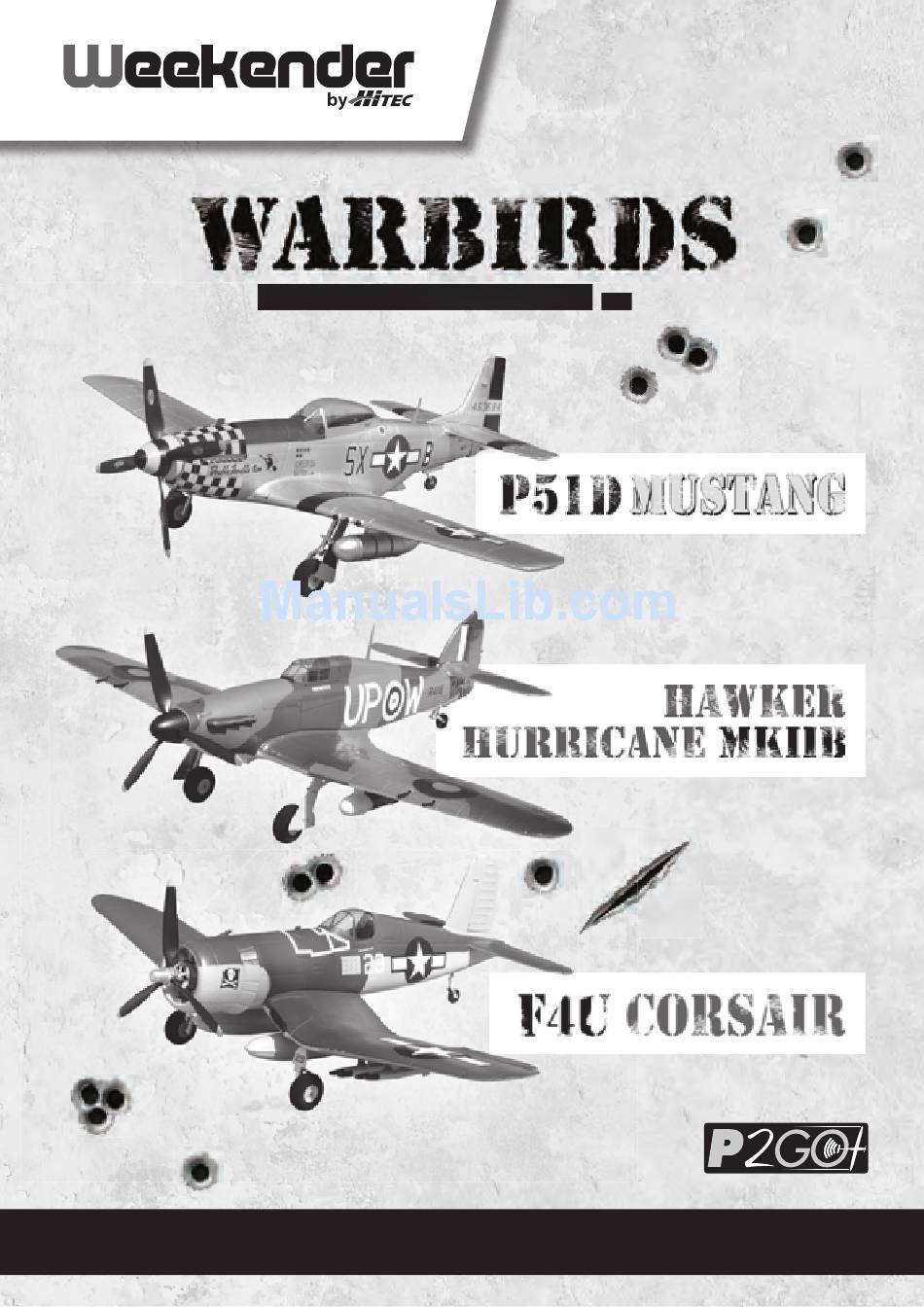

- Page 1 OPERATION MANUAL OPERATION MANUAL Ver 1.0 Ver 1.0 www.hitecrcd.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Warnings and Safety Instructions ..........................3 P51D MUSTANG Features and Speci cations ............................4 Items Required to Ready This Model for Flight .......................4 Parts Layout and Listing ..............................4 Assembly Instructions ..............................5 Spare Parts ....................................6 F4U CORSAIR Features and Speci cations ............................7 Items Required to Ready This Model for Flight .......................7... - Page 3 INTRODUCTION Thank you for purchasing a radio controlled warbird model from Weekender by Hitec. Featuring assembled airframes with pre-installed servos, brushless motors and e cient speed controls, these sporty military classics assemble within minutes to provide high adrenaline excitement for all beginner to intermediate pilots. Each has four channel control for ailerons, elevator, throttle and rudder and a realistic military paint scheme that will have you harkening back to the glory days of World War II.
-
Page 4: P51D Mustang
G. Screws Package Before Assembling the P51D Mustang Keep in mind when assembling and ying the P51D Mustang, that radio control model airplanes may cause injury or property damage when improperly own or mishandled. Always follow the warnings written in the instruction manual. -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS P51D MUSTANG (cont.) Tools Required for Assembly: #0 and #1 Phillips Head Screwdrivers STEP 1 STEP 2 Step 1: Landing Gear Assembly Step 2: Attach the Main Wing Slide the landing gear into the slots of the main wing Attach the main wing to the fuselage by sliding the tab into the rear making sure they are in the correct position. -
Page 6: Spare Parts
ASSEMBLY INSTRUCTIONS P51D MUSTANG (cont.) Step 7: Check the Center of Gravity (CG) STEP 6 STEP 7 Check the Center of Gravity on your model by balancing it on your ngers. The CG should be about 2 1/2 ~ 2 7/8... -
Page 7: F4U Corsair
F4U CORSAIR FEATURES AND SPECIFICATIONS Features Speci cations • Realistic Military Paint Scheme • Wingspan: 29.5 in. • Semi-Assembled Airframe Finishes in Minutes • Weight: 14.8 oz. • Pre-installed Servos, Brushless Motor and ESC • Length: 24 in. • Four Channel Control: •... -
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS F4U CORSAIR Tools Required for Assembly #0 and #1 Phillips Head Screwdrivers STEP 1 STEP 2 Step 1: Landing Gear Assembly. Step 2: Attach the Main Wing. Slide the landing gear into the slot of the main wing mak- Attach the main wing to the fuselage by sliding the tabs into ing sure they are in the correct position. - Page 9 ASSEMBLY INSTRUCTIONS F4U CORSAIR (cont.) STEP 6 Step 6: Attach the Auxiliary Fuel Tanks To attach the auxiliary fuel tanks to the wings apply a small amount of glue and position them in place on the wings. STEP 8 STEP 7 Step 7: Installing the Receiver and Battery.
-
Page 10: Spare Parts
SPARE PARTS F4U CORSAIR 59019 59020 59021 Fuselage Main Wing Horizontal Stabilizer 59022 59025 59026 Vertical Stabilizer Spinner Propeller 59027 59023 59037 * 59038 ** Controlling Linkages Landing Gear *WS9 9g Servo - 150mm Lead (tail) **WS9 9g Servo - 300mm Lead (wing) 59040 59039 WBL-1200 Brushless Motor... -
Page 11: Hawker Hurricane Mkiib
HAWKER HURRICANE MKIIB FEATURES AND SPECIFICATIONS Features Speci cations • Realistic Military Paint Scheme • Wingspan: 29.5 in. • Semi-Assembled Airframe Finishes in Minutes • Weight: 14.9 oz. • Pre-installed Servos, Brushless Motor and ESC • Length: 24.5 in. • Four Channel Control: •... -
Page 12: Assembly Instructions
ASSEMBLY INSTRUCTIONS HAWKER HURRICANE MKIIB Tools Required for Assembly #0 and #1 Phillips Head Screwdrivers STEP 1 STEP 2 Step 1: Landing Gear Assembly. Step 2: Attach the Main Wing. Slide the landing gear into the slot of the main wing making sure they are in the Attach the main wing to the fuselage by correct position. -
Page 13: Spare Parts
ASSEMBLY INSTRUCTIONS HAWKER HURRICANE MKIIB (cont.) STEP 5 STEP 7 STEP 6 Step 6: Installing the Receiver and Battery Step 6: Attaching the Antenna. Install the receiver into the fuselage and Insert the antenna into the mounting Step 8: Check the Center of Gravity (CG) plug in the servo leads. -
Page 14: Preparing For Flight
PREPARING FOR FLIGHT SPEED CONTROL OPERATION The ESC is set for optimal performance at the factory and should not be changed. Before connecting the battery, make sure the throttle is in the lowest (o ) position. If the throttle is not in the lowest, o position, the speed control will not initialize. -
Page 15: Service And Support
Further- more, no liability shall be attached to Weekender by Hitec or Hitec RCD USA, Inc. from the use of the nal assembled product because: the product operates and is controlled by way of remote radio frequency;... - Page 16 www.hitecrcd.com...
