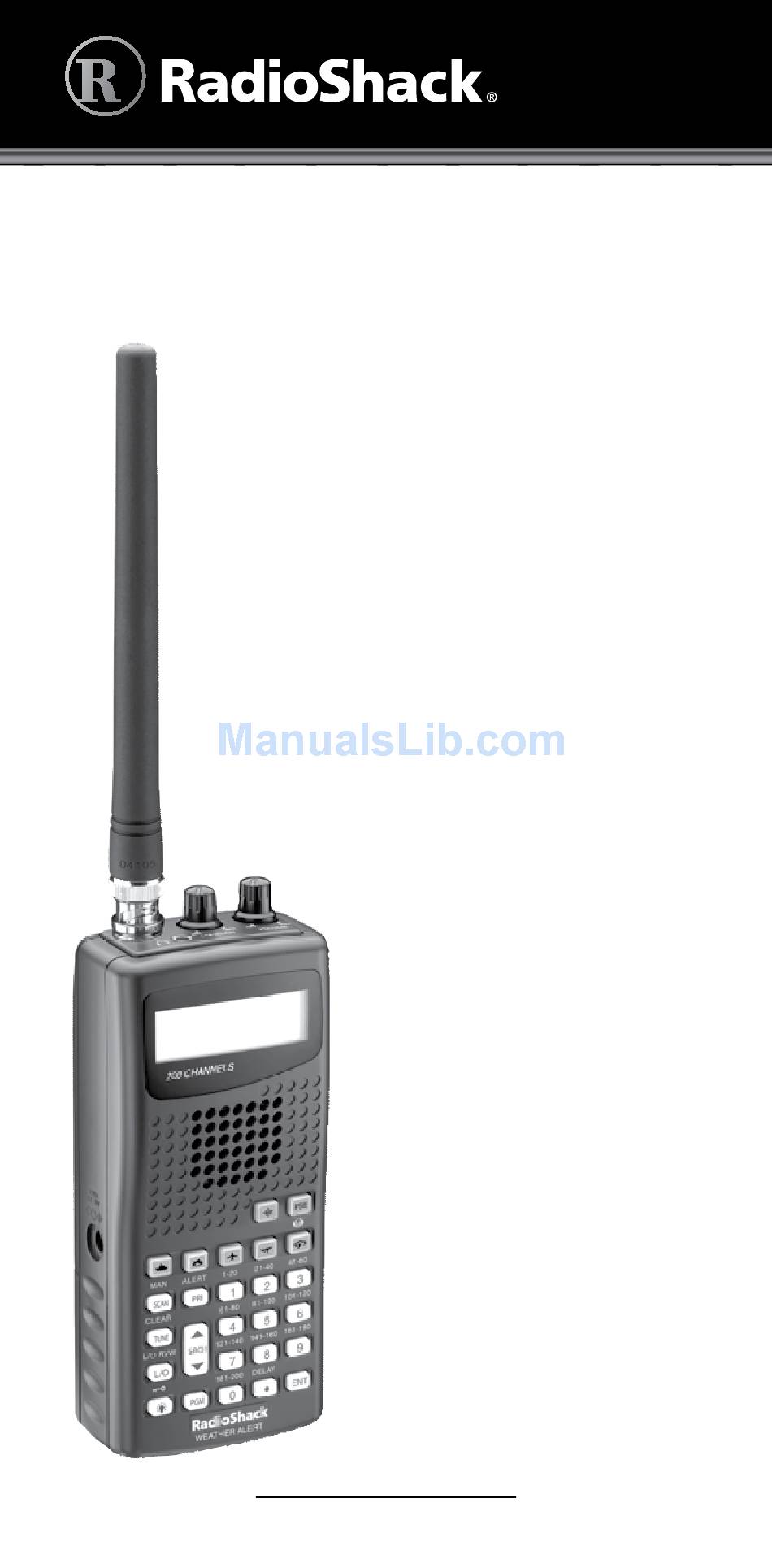

User's Guide
Handheld Radio Scanner
Thank you for purchasing your
Handheld Radio Scanner from
RadioShack. Please read this user's
guide before installing, setting up,
and using your new scanner
www.radioshack.com
20-404/PRO-404
Package Contents
Scanner
Antenna
Belt Clip
User's Guide
Quick Start Guide
Alkaline Battery Holder
Rechargeable Battery
Holder
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Radio Shack PRO-404
Summary of Contents for Radio Shack PRO-404
-
Page 1: Package Contents
User’s Guide 20-404/PRO-404 Handheld Radio Scanner Thank you for purchasing your Handheld Radio Scanner from RadioShack. Please read this user’s guide before installing, setting up, and using your new scanner Package Contents Scanner Antenna Belt Clip User’s Guide Quick Start Guide Alkaline Battery Holder Rechargeable Battery Holder... -
Page 2: Table Of Contents
Contents Monitoring a Stored Channel ......25 Clearing a Stored Channel ......25 Features ........... 4 Listening to the Marine Bank ......25 Understanding Your Scanner ......5 Weather Features ........26 Channel Storage Banks ........6 Listening to a Weather Channel ......26 Service Banks ..........6 Weather Alerts ..........26 Preprogrammed Service Bank Frequencies ..6 Receiving All Weather Alerts ......26 Marine Service Bank ........6... -
Page 3: Understanding Scanner
Features Key Lock – lock the scanner’s keys to help prevent accidentally changing the scanner’s programming. Your new PRO-404 Handheld Scanner lets you scan Liquid-Crystal Display – easy to view and change conventional transmissions and is preprogrammed with programming information. search banks of the most common frequencies used Flexible Antenna with BNC Connector – provides... -
Page 4: Channel Storage Banks
which is grouped with other channels in a channel- Channel Frequency Channel Frequency storage bank. You can then scan the channel-storage (MHz) (MHz) banks to see if there is activity on the frequencies stored 156.5500 156.4750 there. Each time the scanner finds an active frequency, it stays on that channel until the transmission ends. -
Page 5: Fire/Police Service Bank
Fire/Police Service Bank Aircraft Service Bank Group Frequency Range (MHz) Step (kHz) Group Frequency Range (MHz) Step (kHz) 33.420-33.980 108.000-118.000 12.5 37.020-37.420 118.0125-136.9875 12.5 39.020-39.980 42.020-42.940 Ham Amateur Radio Service Bank 44.620-45.860 Group Frequency Range (MHz) Step (kHz) 45.880 29.000-29.700 45.900-46.060 50.000-54.000 46.080-46.500 144.000-148.000 153.770-154.130 420.000-450.000 12.5 154.145-154.445 154.650-154.950 155.010-155.370 Weather Channels 155.415-155.700... -
Page 6: Understanding The Keypad
Understanding the Keypad (Marine) (Signal Stalker II) PSE (Pause) Search the preprogrammed marine bank. Activate the Signal Stop and restart Stalker II function. a search or tune. (Fire Department/Police Department) Search the preprogrammed fire/police bank. (Aircraft) Search the preprogrammed aircraft bank. (HAM) Search the preprogrammed amateur radio bank. (Weather / Skywarn) Search the seven preprogrammed weather channels. -
Page 7: Understanding The Display
Understanding the Display Row 1 Row 2 Row 1 Row 3 – Signal Stalker II search is active. Row 4 BANK – Appears with numbers (1–10) to indicate the scan bank. The bar under the bank number shows Additional Display Messages banks that are turned on for scanning. ALL CH L-out –... -
Page 8: Setup
Setup Power Sources You can power your scanner from one of three sources: Rechargeable batteries (yellow • Rechargeable or non-rechargeable batteries (not holder) supplied). • Standard AC power using an optional AC adapter (not supplied). • Vehicle power using an optional DC adapter (not Alkaline or non- supplied). -
Page 9: Charging Rechargeable Batteries
• Always turn off the scanner when not using it. resources. Call 1-800-THE-SHACK (1-800-843-7422) for more information. • Remove old or weak batteries. If you will not use the scanner with batteries for a month, remove the Using External Power batteries. -
Page 10: Connecting The Antenna
Connecting the Antenna Listening Safely Do not wear headphones, earphones, or earbuds while To attach the supplied flexible operating a motor vehicle or riding a bicycle. This can antenna: create a traffic hazard and could be illegal in some 1. Align the slots around the areas. -
Page 11: Basic Operation
Basic Operation Notes: • If you made a mistake entering the frequency, Turning on the Scanner and Setting Error appears and the scanner beeps three times when you press ENT. Start again from Step 2. Squelch • Your scanner automatically rounds the entered 1. -
Page 12: Service Bank Search
Service Bank Search • When the scanner is in the Police/Fire, Aircraft, or Ham Service Bank, press to search for activity on Your scanner contains groups of preset frequencies the corresponding bank. called Service Banks. You can search for marine, fire/ •... -
Page 13: Scanning The Stored Channels
Scanning the Stored Channels Monitoring a Stored Channel Press SCAN/MAN until SCAN appears to continuously You can continuously monitor a specific channel without scan through all channels with stored frequencies. scanning. This could be useful if you hear a transmission on a channel and do not want to miss any details, even If the scanner finds an active frequency, it stops and though there might be periods of silence. -
Page 14: Weather Features
Weather Features 4. Press ENT to store the priority channel. The display flashes twice. Press TUNE/CLEAR to cancel. The FCC (Federal Communications Commission) has . Press PRI/ALERT during scanning or searching to allocated channels for use by the National Oceanic turn on the priority feature. -
Page 15: Skywarn
. Repeat steps 3-4 for all the FIPS codes that you 1. Before using this feature, you must program wish to store. the Skywarn frequency into channel 200 (see “Programming Known Frequencies into Channels” on . Press to exit FIPS code entry mode. The scanner page 20). -
Page 16: Reviewing And Removing Lock-Outs
To manually lock-out a channel, select the channel then Removing Lock-outs from All Frequencies in a Service press L/O. appears in the display. Bank 1. Hold down L/O L/O RVW for about two seconds Notes: during a Service Bank or Signal Stalker II search. •... -
Page 17: Using The Display Backlight
1 to turn on the key tone or press 2 to turn it off. scanner receives data from a scanner other than a PRO-404. If this happens when the scanner is receiving Using the Key Lock data from another PRO-404, turn off the scanner and turn it on again. -
Page 18: Troubleshooting
1. Turn off the scanner, then turn it on again. While scanning, the scanner locks on frequencies WELCOME SCAnnInG rECEIVEr appears. that have an unclear transmission. 2. Press 0, then press 1 while the welcome message • Some frequencies programmed into the scanner is on the screen. InItIAL appears for about two might be the same as birdie frequencies. -
Page 19: Scanning Legally
Care • Connect the equipment into an outlet on a circuit different from that to which the receiver is Your scanner is not waterproof. Do not expose it to rain, connected. moisture, or extremely high humidity. If the scanner gets This device complies with part 15 of the FCC Rules. -
Page 20: Limited Warranty
Limited Warranty Selectivity ±8 kHz ................ –6 dB RadioShack warrants this product against defects in materials and ±17 kHz ..............–50 dB workmanship under normal use by the original purchaser for one (1) year after the date of purchase from a RadioShack-owned store Search Speed ........ - Page 21 Protect the environment by recycling your used electronics. Go to E-CyclingCentral.com to find an electronic recycling center near you. ©2009. RadioShack Corporation. All rights reserved. RadioShack and RadioShack.com are trademarks used by RadioShack Corporation. 03A09 GR-08D-4140 Printed in China 20-404/PRO-404...
