Duratrax Evader EXB Assembly And Operation Manual page 15

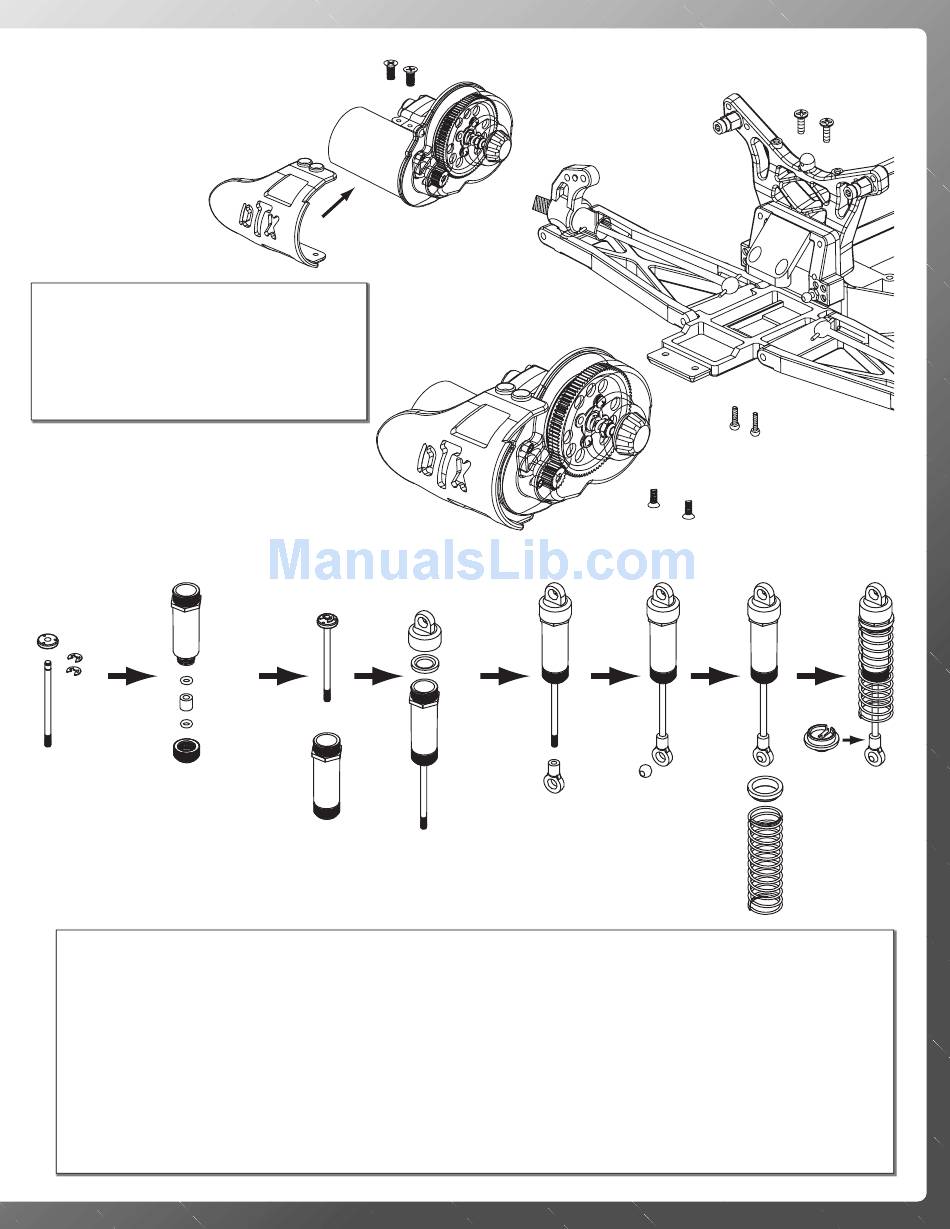

Transmission Installation
1. Install the motor guard (3) to the top of the transmission,
using two 4-40x1/4" F/H screws (A).
2. Install the transmission onto the rear chassis plate
using two 3x10mm screws (C), and two more 3x10mm
screws (C) to secure it to the transmission brace.
3. Secure the bottom of the motor guard to the rear holes
in the chassis plate using two 3x6mm F/H screws (N).
75 (Front)
76 (Rear)
4
S
114
35
68 (Front)
69 (Rear)
114
33
1. Install a 2.5mm e-clip (S) in the groove on the shock shafts (68,69) closest to the center of the shaft.
2. Place the shock piston (4) on top of the 2.5mm e-clip.
3. Secure the shock piston in place with a 2.5mm e-clip in the groove closest to the end of the shaft.
4. Install a shock O-ring (114), a shock seal spacer (35), and another shock O-ring (114) into the shock seal holder in the bottom of the shock body
(75,76). Install a shock seal retainer spacer (55), and secure all of the parts in the shock seal holder using the shock seal retainer (33).
5. Install the shock shaft assembly into the shock body.
6. Fill the shock with fl uid. Install the shock cap spacer (54), the shock diaphram (34) and the shock cap (77).
7. While tightening the shock cap down, work the shock shaft and piston up and down to help remove any air and excess oil that may be trapped in
the shock.
8. Thread the shock ball end (31) onto the end of the shock shaft. Note: To hold the shock shaft, use needle nose pliers with a piece of cloth (to
protect the shaft).
9. Install the shock ball (106) in the shock end.
10. Install the upper spring clamp (122) and spring (70,71).
11. Secure the shock spring in place with the lower spring clamp (31).
A
A
3
Shock Assembly
77
34
31
15
C
C
C
N
N
31
122
106
70 (Front)
71 (Rear)
C
