Duratrax Evader EXB Assembly And Operation Manual page 12

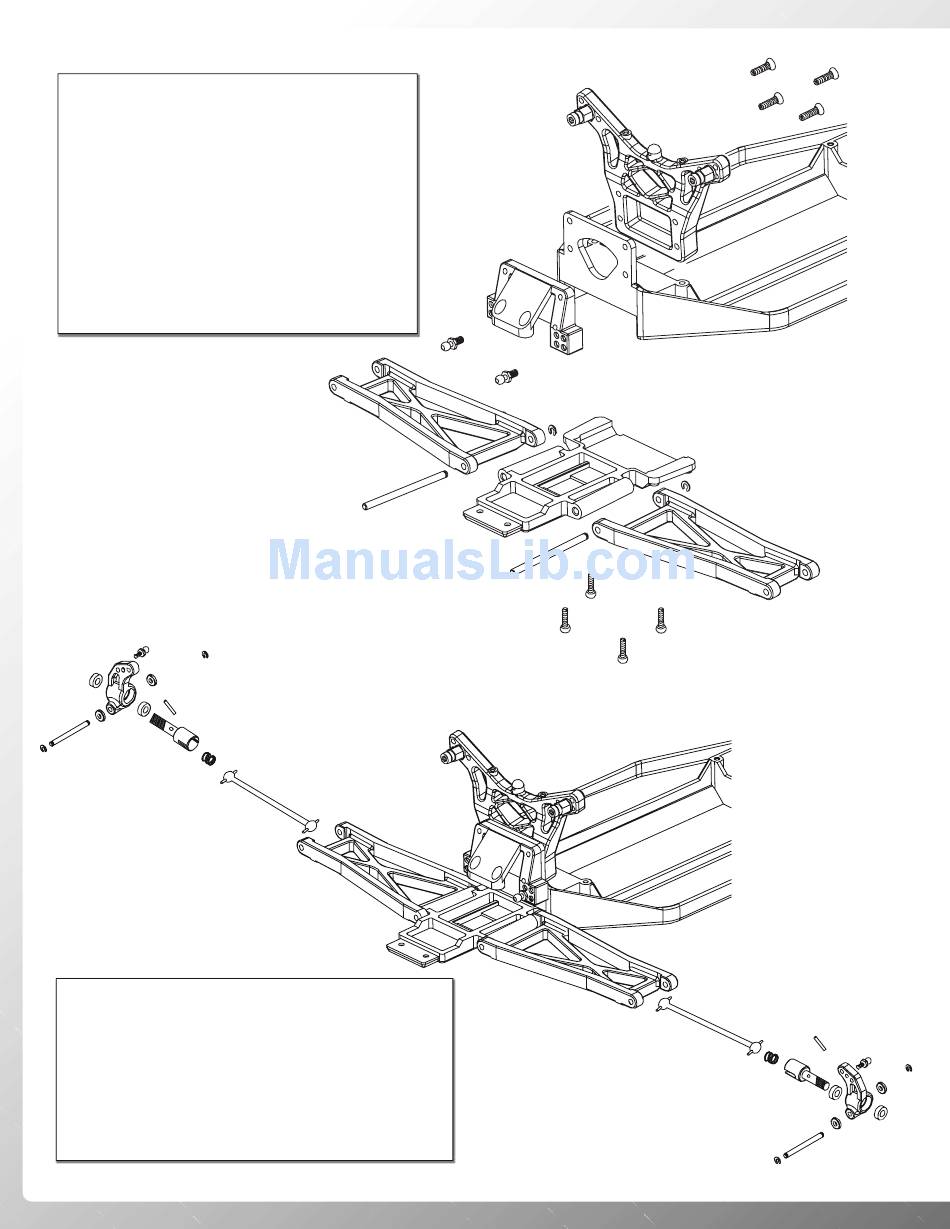

Rear Shock Tower, Rear Transmission Plate,
Rear Bulkhead, Rear Suspension Arm
1. Attach the rear chassis plate (41) to the chassis (1) using
four 3x10mm round head screws (C).
2. Attach the rear suspension arms (36,37) to the rear chassis
plate using the inner rear hinge pins (97).
3. Secure the front of the inner rear hinge pins in place using
two 2.5mm e-clips (S).
4. Install the rear shock tower (40) and transmission brace (42)
onto the chassis using four 3x12mm round head screws (V).
Note: Make sure the screws pass through the shock
tower, chassis and into the transmission brace.
5. Install two long ball studs (30) into the appropriate holes
in the transmission brace. Note: The stock setting is the
lower inner holes. Make sure that the ball studs are in
the same hole location on both sides.
