Duratrax Evader EXB Assembly And Operation Manual page 13

Spring
Pin Hole
22
11
X
X
10

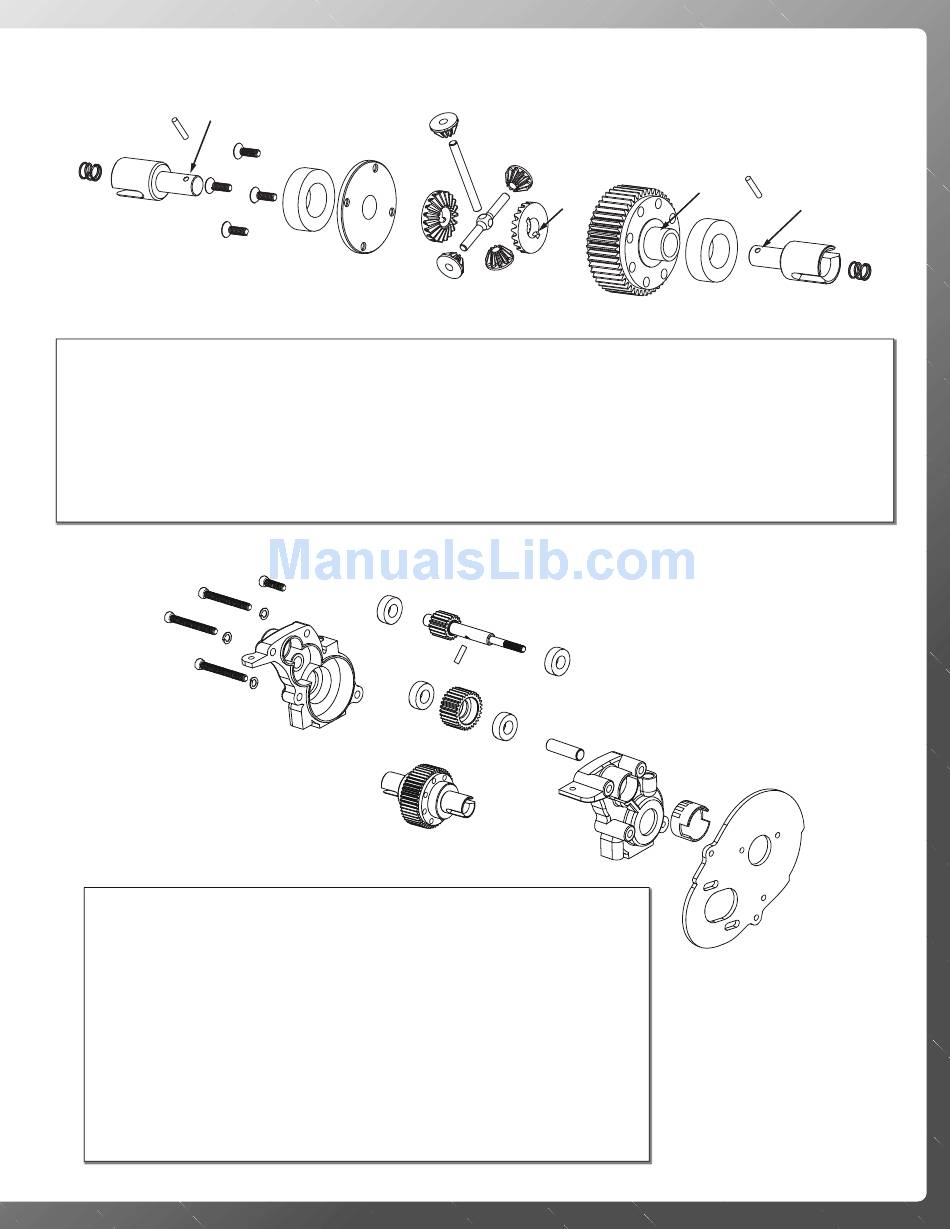

1. Place one 10x16mm bushing (110) on the bushing mounts on the diff gear case (18) and another on the diff gear case cover (12).
2. Install the outdrives (10) through the diff gear case and the gear cover. Install the spring pins (11) into the spring pin holes.
3. Align the keyed section of the large planetary gears (13) on the spring pins that you just installed in the outdrives.
4. Center the diff cross pin B (19) through the opening in the diff cross pin A (15) and install a small planetary gear (14) onto both ends of both diff
cross pins.
5. Place the planetary gear and diff shaft assembly into the diff gear case.
6. Place a small amount of grease on each of the planetary gears. Rotate the gears to spread the grease evenly. There should be enough to evenly
coat each tooth of all the gears. Add or remove grease as needed.
7. Place the diff gear case cover onto the diff gear case and secure it with the four 2.5x5.25mm fl at head screws (X).
8. Install one dogbone spring into each open end of the outdrives.
G
G
P
G
Note: When installing the bushings, make sure they are fully seated. If the bushings are not
fully seated the gearbox halves may not fi t together properly and cause binding.
1. Install a 5x10mm bushing (108) into the upper hole of the left gearbox half (20).
2. Install the top shaft (83) into the 5x10mm bushing that was just installed on the left gearbox half.
3. Install a 5x11mm bushing (109) into each side of the idler gear (17).
4. Install the idler gear shaft (89) into the idler gear bushings.
5. Install the idler gear into the left gearbox half.
6. Install the assembled differential into the bottom hole in the left gearbox half.
7. Assemble the two gearbox halves. Make sure they are seated properly.
8. Secure the two halves with the 3x12mm round head screw (D).
9. Install the 2x10mm spring pin (116) into the top shaft.
10. Install the gearbox dust cover (7) onto the right side gear box half (21).
11. Install the motor plate (96) on the side of the gearbox and attach it with three 3x25mm round
head screws (G) and 3mm spring washers (P).
