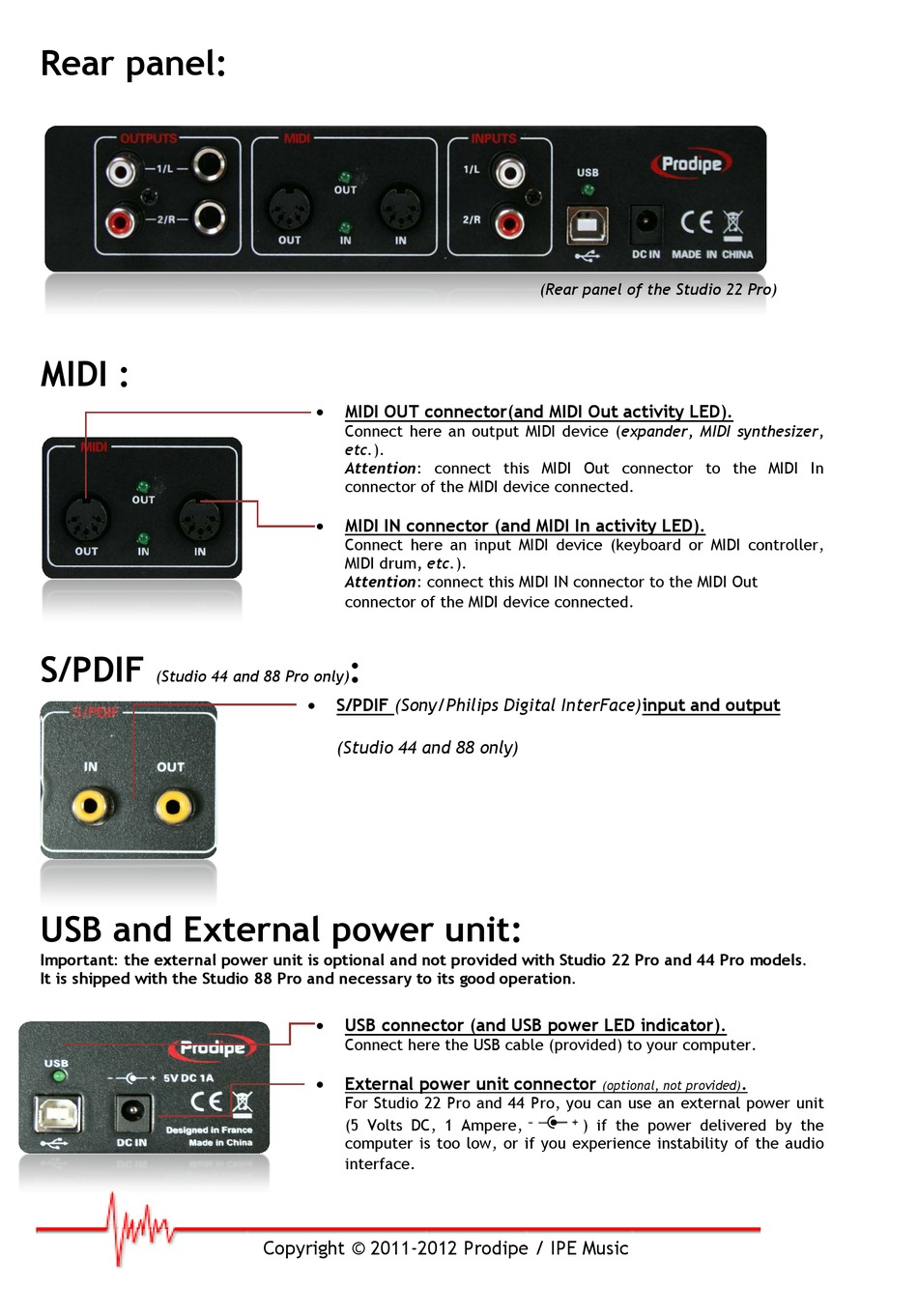

Rear panel:

MIDI :

S/PDIF

(Studio 44 and 88 Pro only)

USB and External power unit:

Important: the external power unit is optional and not provided with Studio 22 Pro and 44 Pro models.
It is shipped with the Studio 88 Pro and necessary to its good operation.

MIDI OUT connector(and MIDI Out activity LED).
Connect here an output MIDI device (expander, MIDI synthesizer,
etc.).
Attention: connect this MIDI Out connector to the MIDI In
connector of the MIDI device connected.

MIDI IN connector (and MIDI In activity LED).
Connect here an input MIDI device (keyboard or MIDI controller,
MIDI drum, etc.).
Attention: connect this MIDI IN connector to the MIDI Out
connector of the MIDI device connected.
:

S/PDIF (Sony/Philips Digital InterFace)input and output
(Studio 44 and 88 only)

USB connector (and USB power LED indicator).
Connect here the USB cable (provided) to your computer.

External power unit connector
For Studio 22 Pro and 44 Pro, you can use an external power unit
(5 Volts DC, 1 Ampere,
computer is too low, or if you experience instability of the audio
interface.
Copyright © 2011-2012 Prodipe / IPE Music
(Rear panel of the Studio 22 Pro)
(optional, not provided)
) if the power delivered by the
.
