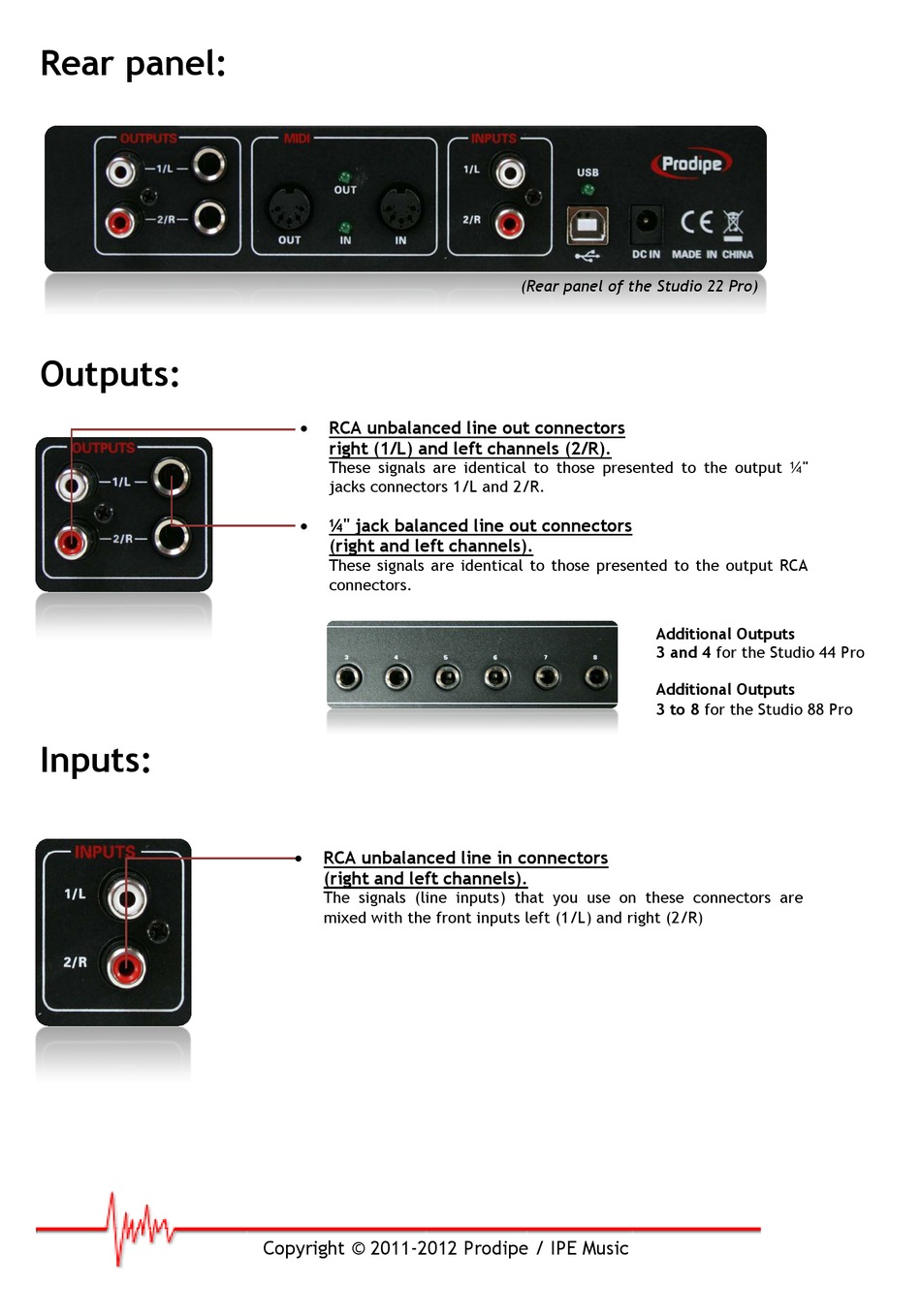

Rear panel:

Outputs:
Inputs:

RCA unbalanced line out connectors
right (1/L) and left channels (2/R).
These signals are identical to those presented to the output ¼"
jacks connectors 1/L and 2/R.

¼" jack balanced line out connectors
(right and left channels).
These signals are identical to those presented to the output RCA
connectors.

RCA unbalanced line in connectors
(right and left channels).
The signals (line inputs) that you use on these connectors are
mixed with the front inputs left (1/L) and right (2/R)
Copyright © 2011-2012 Prodipe / IPE Music
(Rear panel of the Studio 22 Pro)
Additional Outputs
3 and 4 for the Studio 44 Pro
Additional Outputs
3 to 8 for the Studio 88 Pro
