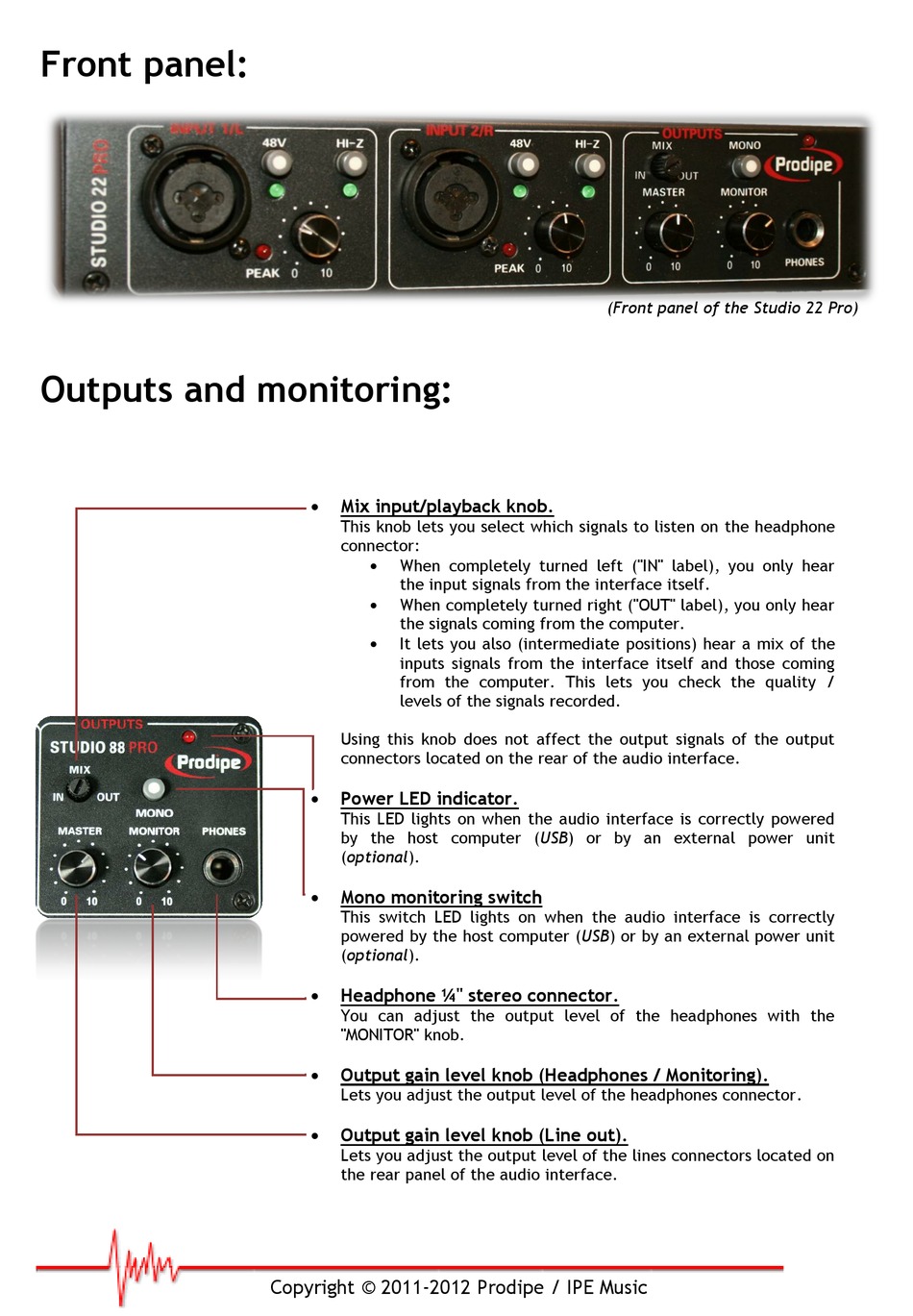

Front panel:

Outputs and monitoring:


Mix input/playback knob.
This knob lets you select which signals to listen on the headphone
connector:

When completely turned left ("IN" label), you only hear
the input signals from the interface itself.

When completely turned right ("OUT" label), you only hear
the signals coming from the computer.

It lets you also (intermediate positions) hear a mix of the
inputs signals from the interface itself and those coming
from the computer. This lets you check the quality /
levels of the signals recorded.
Using this knob does not affect the output signals of the output
connectors located on the rear of the audio interface.

Power LED indicator.
This LED lights on when the audio interface is correctly powered
by the host computer (USB) or by an external power unit
(optional).

Mono monitoring switch
This switch LED lights on when the audio interface is correctly
powered by the host computer (USB) or by an external power unit
(optional).

Headphone ¼" stereo connector.
You can adjust the output level of the headphones with the
"MONITOR" knob.

Output gain level knob (Headphones / Monitoring).
Lets you adjust the output level of the headphones connector.

Output gain level knob (Line out).
Lets you adjust the output level of the lines connectors located on
the rear panel of the audio interface.
Copyright © 2011-2012 Prodipe / IPE Music
(Front panel of the Studio 22 Pro)
