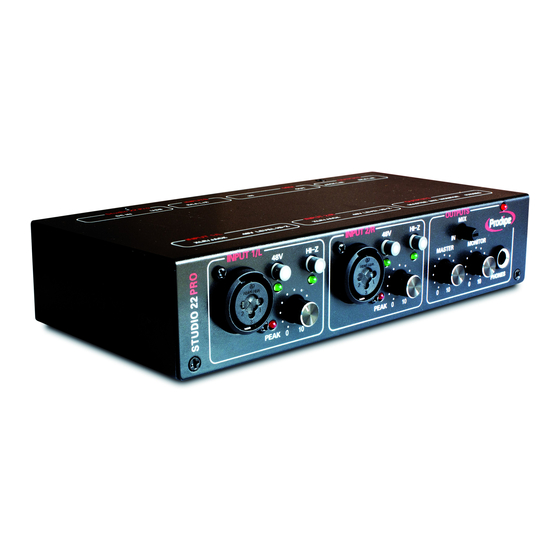

Prodipe Studio 22 Pro USB User Manual

High quality 2in/2out midi usb audio interfaces
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User's manual
Studio 22 Pro USB
Copyright © 2011 Prodipe / IPE Music

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Studio 22 Pro USB and is the answer not in the manual?

Questions and answers

Related Manuals for Prodipe Studio 22 Pro USB

Summary of Contents for Prodipe Studio 22 Pro USB

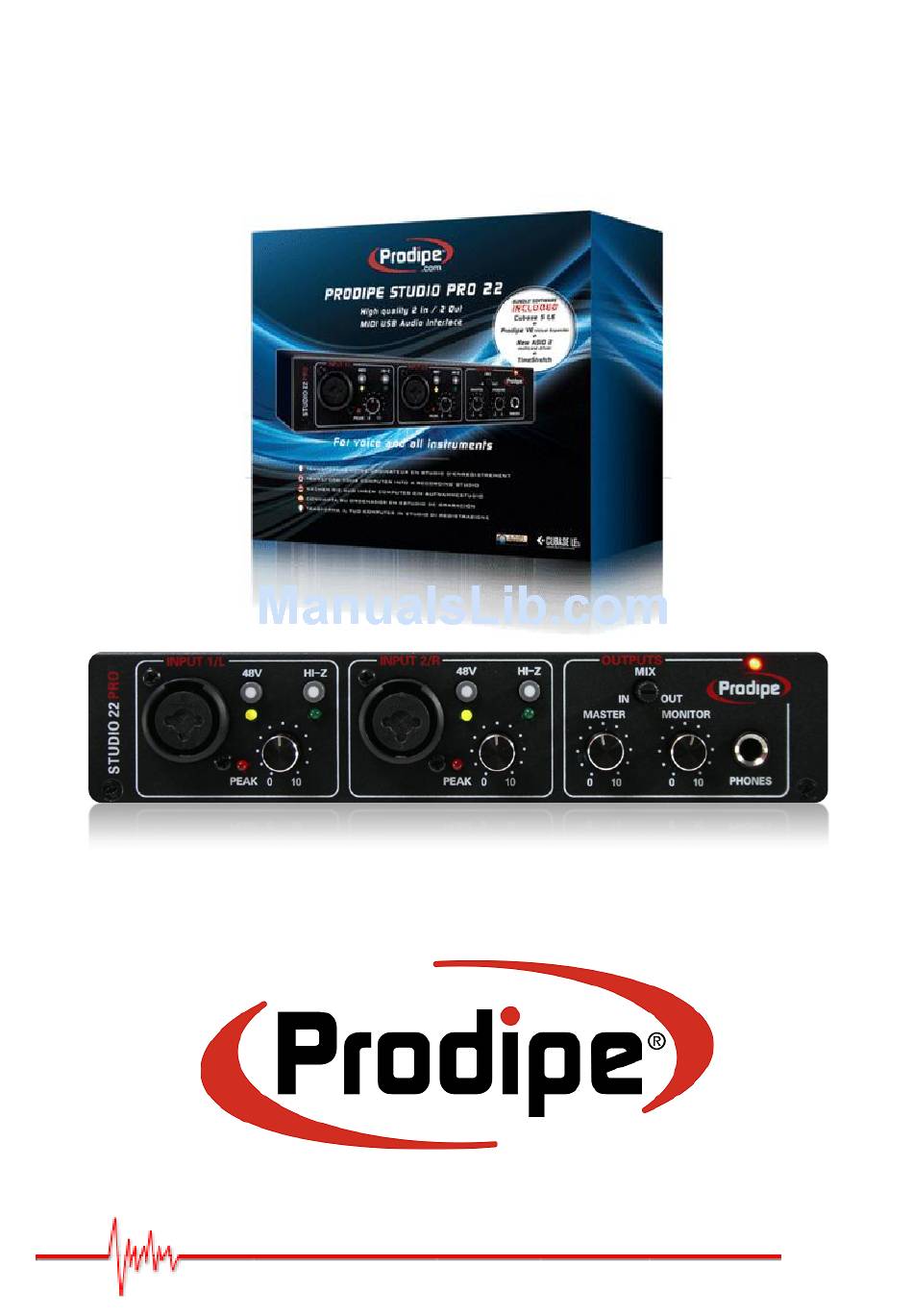

  • Page 1 User's manual Studio 22 Pro USB Copyright © 2011 Prodipe / IPE Music...

  • Page 2: Safety Precautions

    WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. CAUTION: The appliance should not be exposed to drips or splashes of water. Objects filled with liquids, such as vases, should not be placed on the appliance Copyright © 2011 Prodipe / IPE Music...

  • Page 3: Box Content

    Box content:  USB audio Interface Prodipe Studio 22 Pro  USB cable  DVD-ROM with installation software's and ASIO 2 Prodipe's driver. Front panel: Inputs:  "Combo" input microphone/instrument jack 6,35 mm and XLR. This connector lets you use jack ¼" mono unbalanced connectors...
  • Page 4 You can adjust the output level of the headphones with the "MONITOR" knob.  Power LED indicator. This LED lights on when the audio interface is correctly powered by the host computer (USB) or by an external power unit (optional). Copyright © 2011 Prodipe / IPE Music...

  • Page 5: Rear Panel

    These signals are identical to those presented to the output RCA connectors. Inputs:  RCA unbalanced line in connectors (right and left channels). The signals (line inputs) that you use on these connectors are mixed with the front inputs. Copyright © 2011 Prodipe / IPE Music...
  • Page 6 (optional, not provided) You can use an external power unit (5 Volts DC, 1 Ampere, ) if the power delivered by the computer is too low, or if you experience instability of the audio interface. Copyright © 2011 Prodipe / IPE Music...

  • Page 7: Technical Specifications

     Windows XP, Vista, Seven or higher and MAC OS X compatible (no driver needed) Shipped with the "Prodipe ASIO 2" driver for Windows including the "Audio Merge" function (lets you use several Prodipe audio interfaces concurrently in your ASIO 2 compatible applications) ASIO 2 latency less than 2ms on input and output Copyright ©...
  • Page 8 IPE Music 20, rue Clément ADER Z.A. Les Gloriets 85340 OLONNE SUR MER France www.prodipe.com Copyright © 2011 Prodipe / IPE Music...
