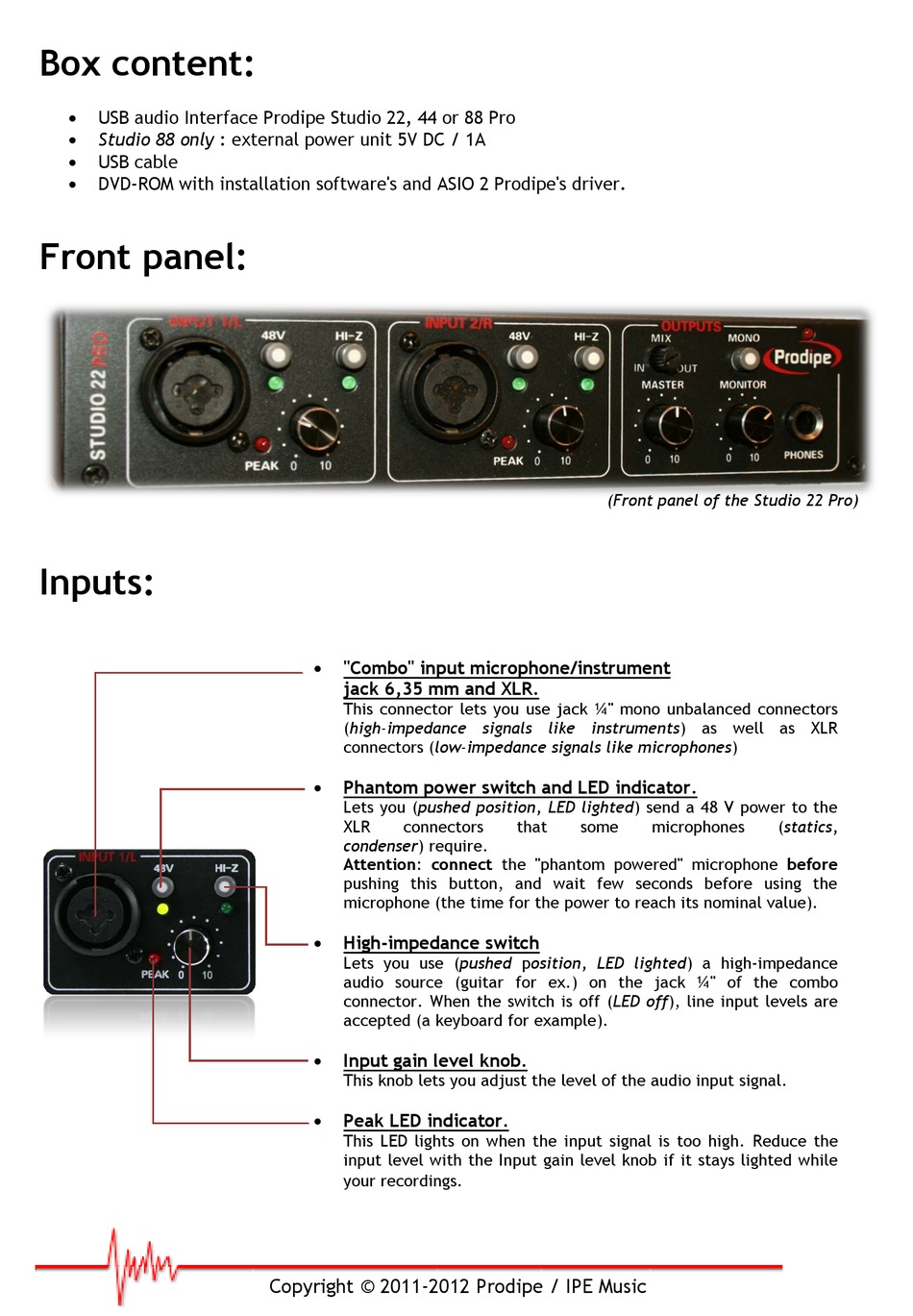

Box content:


USB audio Interface Prodipe Studio 22, 44 or 88 Pro

Studio 88 only : external power unit 5V DC / 1A

USB cable

DVD-ROM with installation software's and ASIO 2 Prodipe's driver.

Front panel:

Inputs:


"Combo" input microphone/instrument
jack 6,35 mm and XLR.
This connector lets you use jack ¼" mono unbalanced connectors
(high-impedance signals like instruments) as well as XLR
connectors (low-impedance signals like microphones)

Phantom power switch and LED indicator.
Lets you (pushed position, LED lighted) send a 48 V power to the
XLR connectors
condenser) require.
Attention: connect the "phantom powered" microphone before
pushing this button, and wait few seconds before using the
microphone (the time for the power to reach its nominal value).

High-impedance switch
Lets you use (pushed position, LED lighted) a high-impedance
audio source (guitar for ex.) on the jack ¼" of the combo
connector. When the switch is off (LED off), line input levels are
accepted (a keyboard for example).

Input gain level knob.
This knob lets you adjust the level of the audio input signal.

Peak LED indicator.
This LED lights on when the input signal is too high. Reduce the
input level with the Input gain level knob if it stays lighted while
your recordings.
Copyright © 2011-2012 Prodipe / IPE Music
(Front panel of the Studio 22 Pro)
that some microphones (statics,
