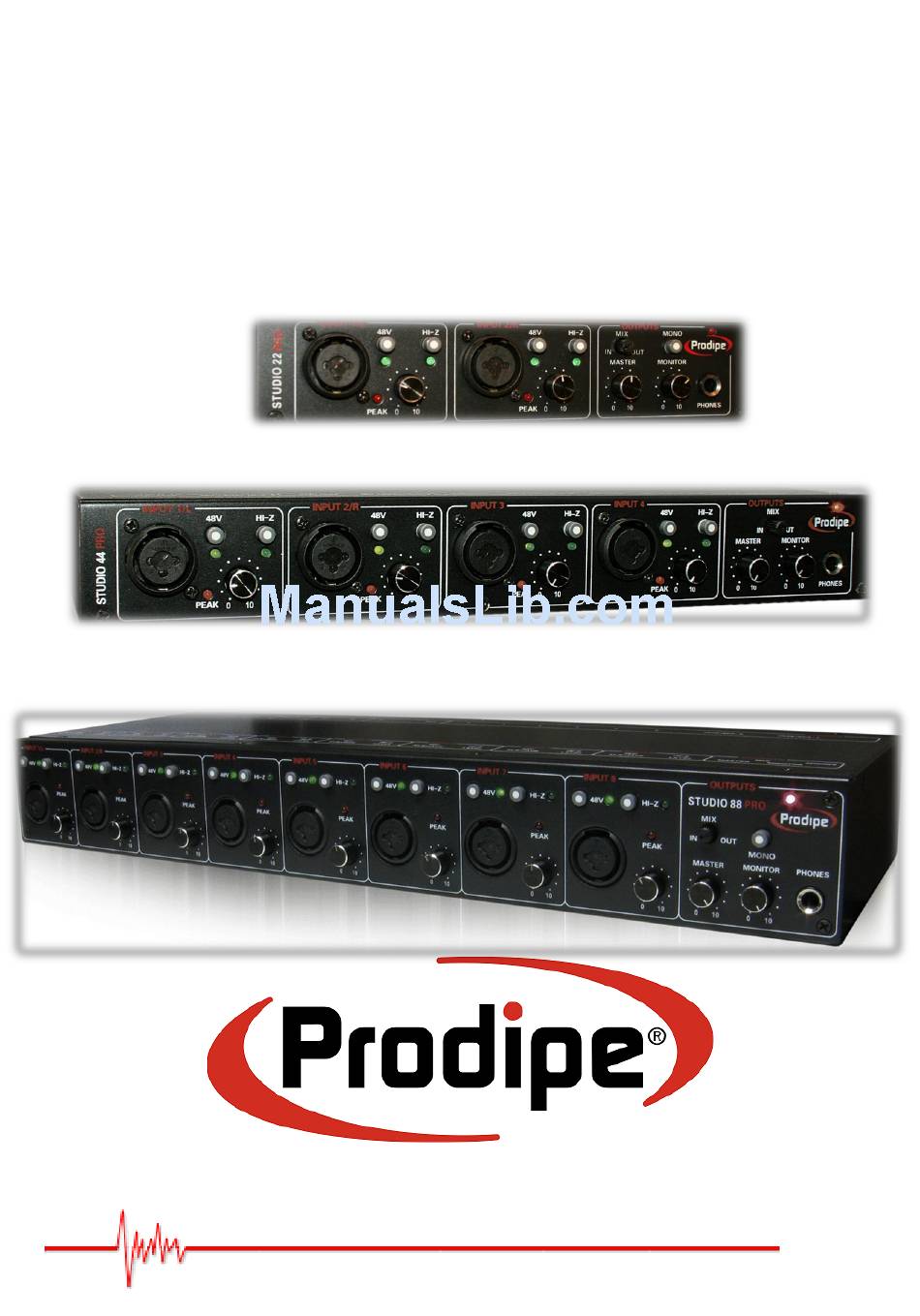

- Page 1 User's manual Studio 22, 44 & 88 Pro USB Copyright © 2011-2012 Prodipe / IPE Music...
-
Page 2: Safety Precautions
WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. CAUTION: The appliance should not be exposed to drips or splashes of water. Objects filled with liquids, such as vases, should not be placed on the appliance Copyright © 2011-2012 Prodipe / IPE Music... -
Page 3: Box Content
Box content: USB audio Interface Prodipe Studio 22, 44 or 88 Pro Studio 88 only : external power unit 5V DC / 1A USB cable DVD-ROM with installation software's and ASIO 2 Prodipe's driver. Front panel:... - Page 4 Front panel: (Front panel of the Studio 22 Pro) Outputs and monitoring: Mix input/playback knob. This knob lets you select which signals to listen on the headphone connector: When completely turned left ("IN" label), you only hear the input signals from the interface itself.
-
Page 5: Rear Panel
Rear panel: (Rear panel of the Studio 22 Pro) Outputs: RCA unbalanced line out connectors right (1/L) and left channels (2/R). These signals are identical to those presented to the output ¼" jacks connectors 1/L and 2/R. ¼" jack balanced line out connectors (right and left channels). - Page 6 (Studio 44 and 88 only) USB and External power unit: Important: the external power unit is optional and not provided with Studio 22 Pro and 44 Pro models. It is shipped with the Studio 88 Pro and necessary to its good operation.
-
Page 7: Technical Specifications
Windows XP, Vista, Seven or higher and MAC OS X compatible (no driver needed) Shipped with the "Prodipe ASIO 2" driver for Windows including the "Audio Merge" function (lets you use several Prodipe audio interfaces concurrently in your ASIO 2 compatible applications) ASIO 2 latency less than 2ms on input and output Copyright ©... - Page 8 IPE Music 20, rue Clément ADER Z.A. Les Gloriets 85340 OLONNE SUR MER France www.prodipe.com Copyright © 2011-2012 Prodipe / IPE Music...
