Page 1: User Guide
User Guide Value Series Model VS400C, VS600C... - Page 2 For your records The serial number of your UPS is on the rear panel. You should note the serial number in the space provided below. Retain this booklet as a permanent record of your purchase to aid in identification in the event of theft or loss. Model No: Serial No.: Purchase Date:...
-
Page 3: Limited Warranty
LIMITED WARRANTY What the warranty covers: We warrant this product to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, we will at our sole option repair or replace the product with a like product. How long the warranty is effective: For accurate warranty period and conditions, please contact local branch offices or your dealers. - Page 4 Limitation of implied warranties: THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Exclusion of damages: OUR LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT.
- Page 5 Life Support: We do not recommend the use of our UPS products for life support equipment or direct care where failure of a UPS product could cause failure of, or diminished effectiveness of the life support equipment or patient care. *Except as expressly provided for by the UPS “Equipment Protection Policy”...
-
Page 7: Important Safety Instructions
GASES. OBSERVE PROPER PRECAUTIONS. ♦ WHEN REPLACING BATTERIES, USE THE SAME NUMBER AND THE FOLLOWING TYPE BATTERIES: SEALED LEAD-ACID MAINTENANCE FREE (VS400C: 1 X 3.5AH/12V; VS600C: 1 X 3.8AH/12V) ♦ PROPER DISPOSAL OF BATTERIES IS REQUIRED. REFER TO YOUR LOCAL... - Page 8 VS400C/VS600C CAUTION: ♦ THE UPS CONTAINS VOLTAGES WHICH ARE POTENTIALLY HAZARDOUS. REPAIRS SHOULD PERFORMED QUALIFIED SERVICE PERSONNEL. THE UPS HAS ITS OWN INTERNAL ENERGY SOURCE (BATTERY). THE OUTPUT RECEPTACLES MAY BE LIVE EVEN WHEN THE UPS IS NOT CONNECTED TO AN AC SUPPLY.
- Page 9 VS400C/VS600C FEDERAL COMMUNICATIONS COMMISSION (FCC) WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 10: Table Of Contents
VS400C/VS600C TABLE OF CONTENTS INTRODUCTION Overview Frequency Auto-Selection User Replaceable Battery Design Over Voltage and Under Voltage Protection Schedule Shutdown & Startup Data-Line Surge Protection UPS CONTROLS External Views Power On/Off Button Status Indicators Communication Port Data Line Surge Protection... -
Page 11: Overview
VS400C/VS600C INTRODUCTION 1.1 Overview The Value Series of Uninterruptible Power Systems (UPS) was designed to prevent spikes, transients and blackouts from reaching your sensitive equipment. Your equipment include such items computers computerized instruments telecommunication systems. When AC power is present, the UPS filters the power continuously. -
Page 12: Over Voltage And Under Voltage Protection
VS400C/VS600C 1.4 Over Voltage and Under Voltage Protection The UPS will switch to backup mode and provide the power from its internal battery when the input line voltage is too low or too high. 1.5 Schedule Shutdown & Startup Using OPTI-SAFE Xtreme you can locally or remotely control the shutdown and startup of equipment connected to a UPS. -
Page 13: Ups Controls

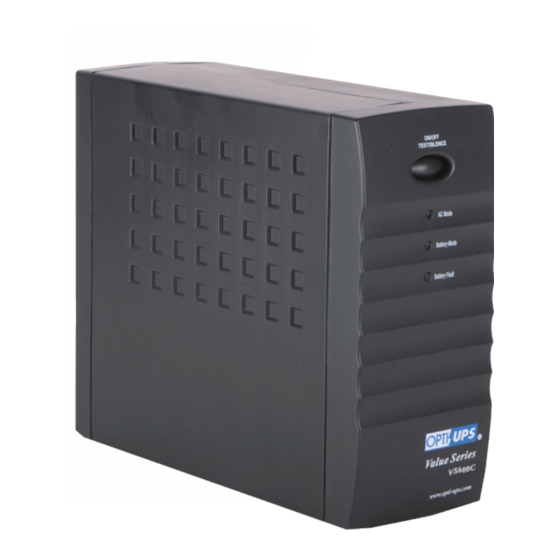

VS400C/VS600C UPS CONTROLS External Views Power On/Off/Test/Silence Button: The On/Off/Test/Silence Button has four functions: When the UPS is off and AC power is present, press this button for more than 3 seconds to turn on the UPS. The UPS can be turned on even when AC power is not present. -
Page 14: Status Indicators
VS400C/VS600C When this Green LED is lit, the UPS is in normal mode, AC Mode and providing power to your equipment. The UPS will continue to filter and provide surge protection. When this Yellow LED is lit, the UPS is providing power Battery Mode from its battery. -
Page 15: Installation And Operation
VS400C/VS600C 3. INSTALLATION AND OPERATION Before installation, please read and understand the following instructions: 3.1 Unpacking and Inspection Examine the packing carton for damage and accessory in the box. Notify the carrier immediately if damage is observed. * UPS *1... -
Page 16: Powering Up Your Ups
VS400C/VS600C Computer Co ViewSonic G810 Pentium Pro 200MHz 120V 2.7A 120V 2.0A 50 / 60 Hz 50/60 Hz SN: Q771515388 SN: 123456 Multiply the voltage and current of each piece of equipment (VA requirements); for example, 120V x 2.7A = 324VA, 120V x 2.0A = 240VA. -
Page 17: Connecting Your Equipment To The Ups
VS400C/VS600C 3.5 Connecting Your Equipment to the UPS For all UPS models except the 2x0V versions: connect the power cord(s) of your computer equipment to the output receptacle(s) of the UPS. Switch on the computer equipment. For 2x0V versions, as shown in the illustration below: connect the input power cord of your computer equipment to the inlet of the UPS and the wall socket. -
Page 18: Storage Instructions
VS400C/VS600C Note: Backup all unsaved files before you perform the following functional test. To test the backup function, you may unplug the power cord of the UPS. During this test, observe that your equipment operates properly and without interruption. If you leave your UPS on continuously, it is a good idea to perform a backup function test at least once a month. -
Page 19: Specifications
VS400C/VS600C 4. SPECIFICATIONS 4.1 Electrical Specifications Product Name Frequency (Hz) Voltage (V) Capacity VA / W 100 / 110 / 120 VS400C 50/60 400VA / 225W 220 / 230 / 240 100 / 110 / 120 VS600C 50/60 600VA / 345W... -
Page 20: Mechanical Specifications
VS400C/VS600C Audible Alarm: Battery discharge at power failure Beep every 4 seconds Beep every second Battery approaches final discharge Continuous buzzer Overload 4.2 Mechanical Specifications: Product Name Dimensions Weight (Kg) W × D × H (mm) Gross 200*77*175 VS400C VS600C 200*77*175 4.3 Environmental Specifications:... -
Page 21: Troubleshooting
VS400C/VS600C 5. TROUBLESHOOTING If the UPS fails to operate properly, please review the following steps before calling the repair center: Is the UPS plugged into a proper working outlet? Is the line voltage within the rating specified? Does the circuit breaker on the rear panel need to be reset? 5.1 Troubleshooting Chart... -
Page 22: User Replaceable Battery
CAUTION: Do not open or mutilate batteries. They contain an electrolyte which is toxic and harmful to the skin and eyes. CAUTION: When replacing batteries, use the same number and the following type batteries: sealed Lead-Acid Maintenance Free (VS400C: 1x 12V3.5AH; VS600C: 1 x 12V/3.8AH) - Page 23 VS400C/VS600C 6.2 Battery Replacement Procedure for VS400C/ VS600C Changing the batteries in your UPS is a safe and easy procedure. Since the battery is isolated from the AC input you may leave your UPS and computer or other equipment on during the following procedure.
- Page 24 VS400C/VS600C Fuse Replacement Procedure 1. Use a slotted screwdriver to take out the fuse socket. 2. Take out the broken fuse from the fuse socket. 3. Throw away the broken fuse. 4. Use the slotted screwdriver to push out the spare fuse.
