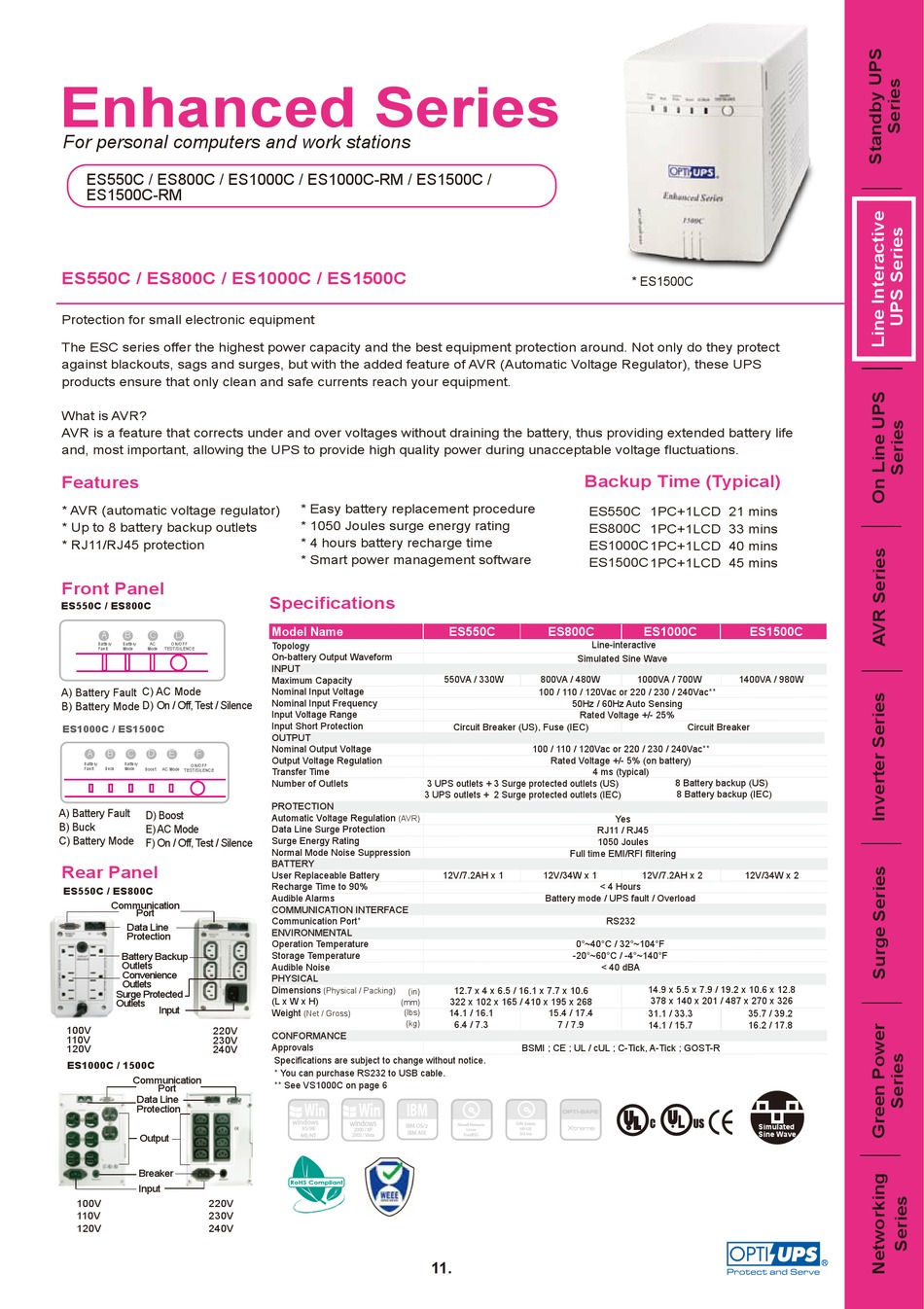

OPTI-UPS ES1000C-RM Specification Sheet

Enhanced Series
For personal computers and work stations
ES550C / ES800C / ES1000C / ES1000C-RM / ES1500C /
ES1500C-RM
ES550C / ES800C / ES1000C / ES1500C
Protection for small electronic equipment
The ESC series offer the highest power capacity and the best equipment protection around. Not only do they protect
against blackouts, sags and surges, but with the added feature of AVR (Automatic Voltage Regulator), these UPS
products ensure that only clean and safe currents reach your equipment.
What is AVR?
AVR is a feature that corrects under and over voltages without draining the battery, thus providing extended battery life
and, most important, allowing the UPS to provide high quality power during unacceptable voltage fluctuations.
Features
* AVR (automatic voltage regulator)
* Up to 8 battery backup outlets
* RJ11/RJ45 protection

Front Panel

ES550C / ES800C
A B C D
Battery Battery AC ON/OFF
Fault Mode Mode TEST/SILENCE
C) AC Mode
A) Battery Fault
D) On / Off, Test / Silence
B) Battery Mode
ES1000C / ES1500C
A B C D E F
Battery Battery
ON/OFF
Fault Buck Mode Boost
AC Mode TEST/SILENCE
A) Battery Fault
D) Boost
B) Buck
E) AC Mode
C) Battery Mode
F) On / Off, Test / Silence

Rear Panel

ES550C / ES800C
Communication
Port
Data Line
Protection
Battery Backup
Outlets
Convenience
Outlets
Surge Protected
Outlets
Input
100V 220V
110V
230V
120V
240V
ES1000C / 1500C
Communication
Port
Data Line
Protection
Output
Breaker
Input
100V 220V
110V 230V
120V 240V
* Easy battery replacement procedure
* 1050 Joules surge energy rating
* 4 hours battery recharge time
* Smart power management software

Specifications

Model Name
Topology
On-battery Output Waveform
INPUT
550VA / 330W
Maximum Capacity
Nominal Input Voltage
Nominal Input Frequency
Input Voltage Range
Input Short Protection
OUTPUT
Nominal Output Voltage
Output Voltage Regulation
Transfer Time
3 UPS outlets + 3 Surge protected outlets (US)
Number of Outlets
3 UPS outlets + 2 Surge protected outlets (IEC)
PROTECTION
Automatic Voltage Regulation
(AVR)
Data Line Surge Protection
Surge Energy Rating
Normal Mode Noise Suppression
BATTERY
User Replaceable Battery 12V/7.2AH x 1
Recharge Time to 90%
Audible Alarms
COMMUNICATION INTERFACE
Communication Port*
ENVIRONMENTAL
Operation Temperature
Storage Temperature
Audible Noise
PHYSICAL
Dimensions
(Physical / Packing)
(in)
(L x W x H)
(mm)
Weight
(Net / Gross) (lbs)
(kg)
CONFORMANCE
Approvals
Specifications are subject to change without notice.
* You can purchase RS232 to USB cable.
** See VS1000C on page 6
IBM
Win
windows
windows
IBM OS/2
95/98
2000 / XP
IBM AIX
2003 / Vista
ME/NT
11.
Backup Time (Typical)
ES550C
ES800C
ES1000C
ES1500C
ES550C ES800C
Line-interactive
Simulated Sine Wave
800VA / 480W
100 / 110 / 120Vac or 220 / 230 / 240Vac**
50Hz / 60Hz Auto Sensing
Rated Voltage +/- 25%
Circuit Breaker (US), Fuse (IEC)
100 / 110 / 120Vac or 220 / 230 / 240Vac**
Rated Voltage +/- 5% (on battery)
4 ms (typical)
Yes
RJ11 / RJ45
1050 Joules
Full time EMI/RFI filtering
12V/34W x 1
< 4 Hours
Battery mode / UPS fault / Overload
RS232
0°~40°C / 32°~104°F
-20°~60°C / -4°~140°F
< 40 dBA
12.7 x 4 x 6.5 / 16.1 x 7.7 x 10.6
322 x 102 x 165 / 410 x 195 x 268
14.1 / 16.1 15.4 / 17.4
6.4 / 7.3 7 / 7.9
BSMI ; CE ; UL / cUL ; C-Tick, A-Tick ; GOST-R
SUN Solaris
Novell Netware
HP-UX
Linux
SGI Irix
FreeBSD
* ES1500C
1PC+1LCD 21 mins
1PC+1LCD 33 mins
1PC+1LCD 40 mins
1PC+1LCD 45 mins
ES1000C ES1500C
1000VA / 700W 1400VA / 980W
Circuit Breaker
8 Battery backup (US)
8 Battery backup (IEC)
12V/7.2AH x 2 12V/34W x 2
14.9 x 5.5 x 7.9 / 19.2 x 10.6 x 12.8
378 x 140 x 201 / 487 x 270 x 326
31.1 / 33.3 35.7 / 39.2
14.1 / 15.7 16.2 / 17.8
Simulated
Sine Wave
