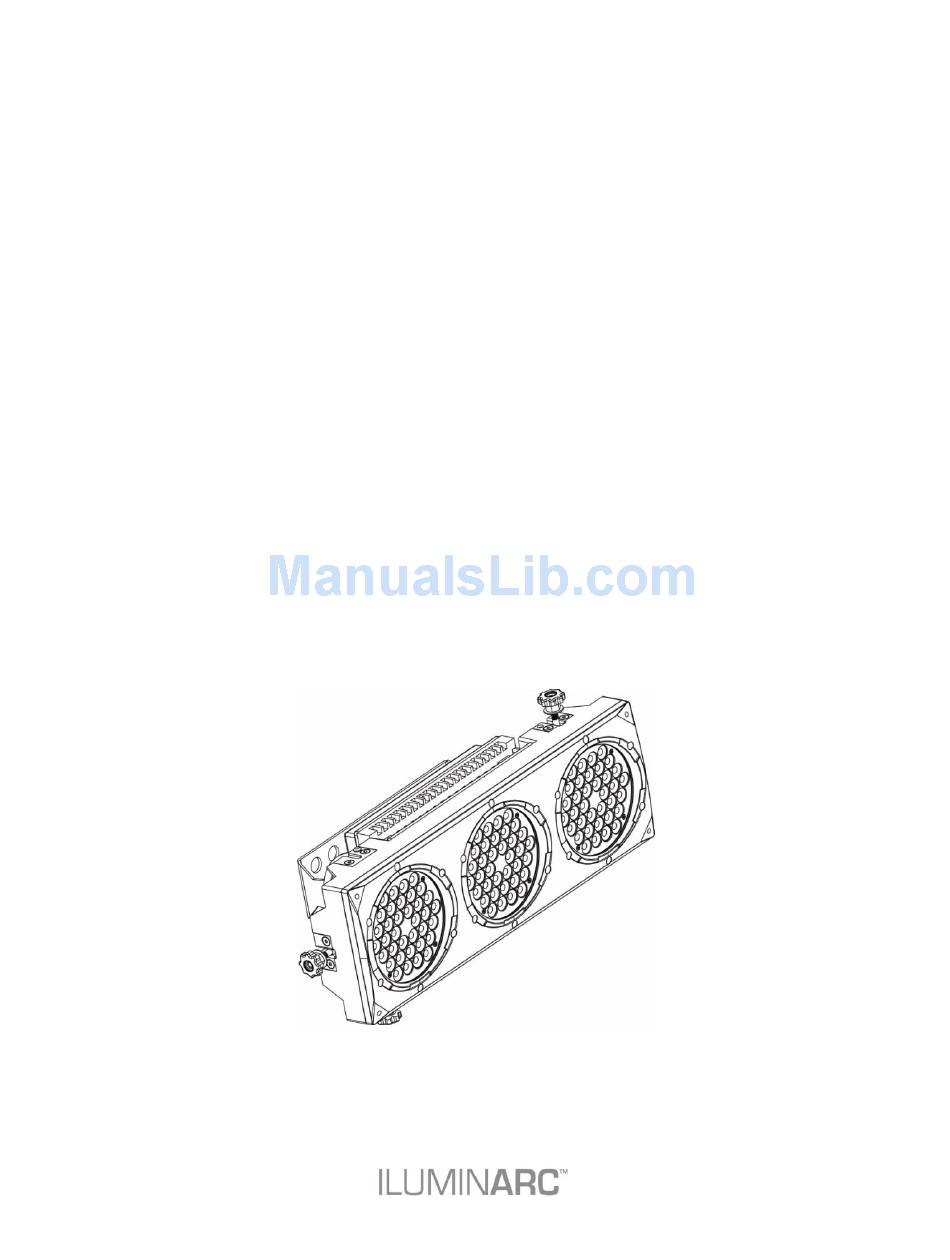

- Page 1 Ilumipanel 36X3 IP Optic RGB USER MANUAL www.ILUMINARC.com (954) 923-3680...
-
Page 2: Table Of Contents
DMX Primer ....................................25 General Maintenance ................................26 Returns Procedure ..................................26 Claims......................................26 Ilumipanel 36X3 Optic RGB Service Maintenance Guide ....................... 27 Blow-out Diagram: Parts/Assembly ............................28 Technical Specifications ................................30 Ilumipod 36X3 IP Optic RGB User Manual 5/21/2009 11:44 AM... -
Page 3: Before You Begin
1. B EFORE EGIN What is included 1 x Ilumipanel 36X3 IP Optic RGB 1 x Power cable with plug 1 x IP66 power extension cable 1 x IP66 signal extension cable 1 x DMX input cable adapter ... -
Page 4: Safety Instructions
After prolonged periods of operation, the fixture chassis may reach high temperatures. Use caution when handling this fixture. Note! Please refer to local code and regulation for proper installation of this fixture. Ilumipod 36X3 IP Optic RGB User Manual 5/21/2009 11:44 AM... -
Page 5: Introduction
High-power, 1W (350mA) LEDs Ingress Protection: IP66 Interlock multiple units to create blinder, wall or strip light effects Additional power output: max 12 units @ 120V LCD display with password protection Ilumipod 36X3 IP Optic RGB User Manual 5/21/2009 11:44 AM... -
Page 6: Dmx Channel Summary
DMX Channel Summary The Ilumipanel 36X3 IP Optic RGB has a total of 5 DMX channel configurations, referred to as “Personalities” in this manual and in the fixture onboard control board. The 5 personalities are [STAGE 1, STAGE2, PIXEL, ARC1, ARC 1+D]. - Page 7 Block 1 Blue Block 2 Red Block 2 Green Block 2 Blue Block 3 Red Block 3 Green Block 3 Blue HANNEL ESCRIPTION Green Blue 1+D] HANNEL ESCRIPTION Dimmer Green Blue Ilumipod 36X3 IP Optic RGB User Manual 5/21/2009 11:44 AM...
-
Page 8: Product Overview
Product Overview DMX out Power in Power out DMX in Power Link Out Safety attachment Ilumipod 36X3 IP Optic RGB User Manual 5/21/2009 11:44 AM... -
Page 9: Setup
0% to 100% switch. This fixture is designed for power linking from one Ilumipanel 36X3 IP Optic RGB to another Ilumipanel 36X3 IP Optic RGB fixture. Each fixture ships with IP66 proprietary power input cables. -
Page 10: Mounting
10 times the weight of the fixture. Verify the structure can hold 10 times the weight of all to-be installed fixtures. Note! Clamp is sold separately. Ilumipod 36X3 IP Optic RGB User Manual 5/21/2009 11:44 AM... -
Page 11: Stacking
Stacking The Ilumipanel 36X3 IP Optic RGB can be stacked vertically and horizontally to create a large flood array. Stack them horizontally to create a high power linear wash effect. Power Link Out The interlocking connectors provide an easy, fast, and secure... -
Page 12: Fixture Linking
Test cables with an ohm meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other. Ilumipod 36X3 IP Optic RGB User Manual 5/21/2009 11:44 AM... -
Page 13: 3-Pin To 5-Pin Conversion Chart
Secondarily, the fixtures that follow may also require a slave setting. Please consult the “Operating Instructions” section in this manual for complete instructions for this type of setup and configuration. Ilumipod 36X3 IP Optic RGB User Manual 5/21/2009 11:44 AM... -
Page 14: Operating Instructions
NSTRUCTIONS Control Options The Ilumipanel 36X3 IP Optic RGB is addressable in the DMX range of 001 to 512. In its simplest control form, this allows for the control of up to 42 fixtures in the 12-channel “STAG” personality; however, a secondary ID address system exists for use in a limited DMX universe and architectural environments. -
Page 15: Setting The Dmx Address
The Ilumipanel 36X3 IP Optic RGB uses up to 12 channels of DMX. If this is your first time using DMX, we recommend reading the DMX Primer in the Appendix Section. -
Page 16: Menu Map
UP, DOWN, UP, DOWN, UP, UP, DOWN, DOWN Manual Power ON/OFF The Ilumipanel 36X3 IP Optic RGB can be turned on and off using the control panel. OWER CTION When {MENU} is displayed in the LCD panel, hold down the (EXIT) button for 3 Turn OFF seconds to turn off the fixture. -
Page 17: Dmx512 Channel Values
DMX512 Channel Values The Ilumipanel 36X3 Optic RGB has 5 DMX512 channel configurations [STAGE 1, STAGE 2, PIXEL, ARC1, ARC1+D]. Both [STAGE 1] & [STAGE 2] have 2 DMX modes {DMX MODE1} & {DMX MODE 2}. Channel 9 is used to switch between modes in STAGE1, and Channel 7 is used in STAGE 2. - Page 18 224 228 Macro 45 229 233 Macro 46 234 238 Macro 47 239 243 Macro 48 244 248 Macro 49 249 255 Macro 50 Ilumipanel 36X3 IP Optic RGB User Manual 2009-05-21 11:44 AM...
-
Page 19: Stage 1 [Dmx Control Mode 2]
DMX MODE 1 (only when channels 1-7 = 0) 245 255 DMX MODE 2 ID Address See Channel 10 (ID address selection) on Selection page 20 under DMX Control Mode 1 No Function Ilumipanel 36X3 IP Optic RGB User Manual 2009-05-21 11:44 AM... -
Page 20: Stage 2 [Dmx Control Mode 1]
ID 41 ID 64 190 199 ID 19 ID 42 ID 65 200 209 ID 20 ID 43 ID 66 ID 21 ID 44 ID 22 ID 45 Ilumipanel 36X3 IP Optic RGB User Manual 2009-05-21 11:44 AM... - Page 21 224 228 Macro 45 229 233 Macro 46 234 238 Macro 47 239 243 Macro 48 244 248 Macro 49 249 255 Macro 50 Ilumipanel 36X3 IP Optic RGB User Manual 2009-05-21 11:44 AM...
-
Page 22: Stage 2 [Dmx Control Mode 2]
DMX MODE 1 (only when channels 1-7 = 0) 245 255 DMX MODE 2 ID Address See Channel 10 (ID address selection) on Selection page 20 under DMX Control Mode 1 No Function Ilumipanel 36X3 IP Optic RGB User Manual 2009-05-21 11:44 AM... -
Page 23: Arc 1
0 100% Block 3 Green 000 004 No Function 005 255 0 100% Block 3 Blue 000 004 No Function 005 255 0 100% Ilumipanel 36X3 IP Optic RGB User Manual 2009-05-21 11:44 AM... -
Page 24: Important Notes About Stage 1+Stage 2 [Dmx Mode 1]
These are pre-programmed color patterns and module chases. Channel 12 has priority over channels (1, 2, 3, 4, 5, 6 & 7). Channel 12 has priority over channel 11 if first activated. Ilumipanel 36X3 IP Optic RGB User Manual 2009-05-21 11:44 AM... -
Page 25: Important Notes About Stage 1+ Stage 2 [Dmx Mode 2]
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). Ilumipanel 36X3 IP Optic RGB User Manual 2009-05-21 11:44 AM... -
Page 26: General Maintenance
Package must be clearly labeled with a Return Merchandise Authorization Number (RMA #). Products returned without an RMA # will be refused. Call ILUMINARC™ and request an RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 27: Ilumipanel 36X3 Optic Rgb Service Maintenance Guide
Ilumipanel 36X3 Optic RGB Service Maintenance Guide Symptom(s) Possible Solution(s) Clean the fixture regularly to avoid any such failure. This fixture is 1 or more LED’s are not illuminating convection cooled, which means that if the surface is kept clean and free of debris, then proper cooling will be allowed to occur An LED may have failed, resulting in an open circuit. -
Page 28: Blow-Out Diagram: Parts/Assembly
PART DESCRIPTION Front Cover Rubber Seal Clear Lens cover LED LENS Complete Set LED PCB Array Rigging Knob Master PCB Electronic Transformer Plastic Seal for Wires Knob for Bracket Adjustment Ilumipanel 36X3 IP Optic RGB User Manual 2009-05-21 11:44 AM... - Page 29 CRI values. Some LED products with CRIs as low as 25 still produce visually pleasing white light. 4. Evaluate LED systems in person and, if possible, on-site when color fidelity or color appearance are important issues. Source: DOE publication: PNNL-SA-56891, January 2008 Ilumipanel 36X3 IP Optic RGB User Manual 2009-05-21 11:44 AM...
-
Page 30: Technical Specifications
Data pin configuration................. pin 1 shield, pin 2 (-), pin 3 (+) Protocols ........................... DMX-512 USITT DMX Channels ........................3,4,5,6,11,12 ORDERING INFORMATION Ilumipanel 36X3 Optic 15 RGB (black housing) ................. 13108002 Ilumipanel 36X3 Optic 30 RGB (black housing) ................. 13108001 WARRANTY INFORMATION Warranty........................2-year limited warranty...
