Summary of Contents for Iluminarc Ilumiline 36 IP Optic RGB

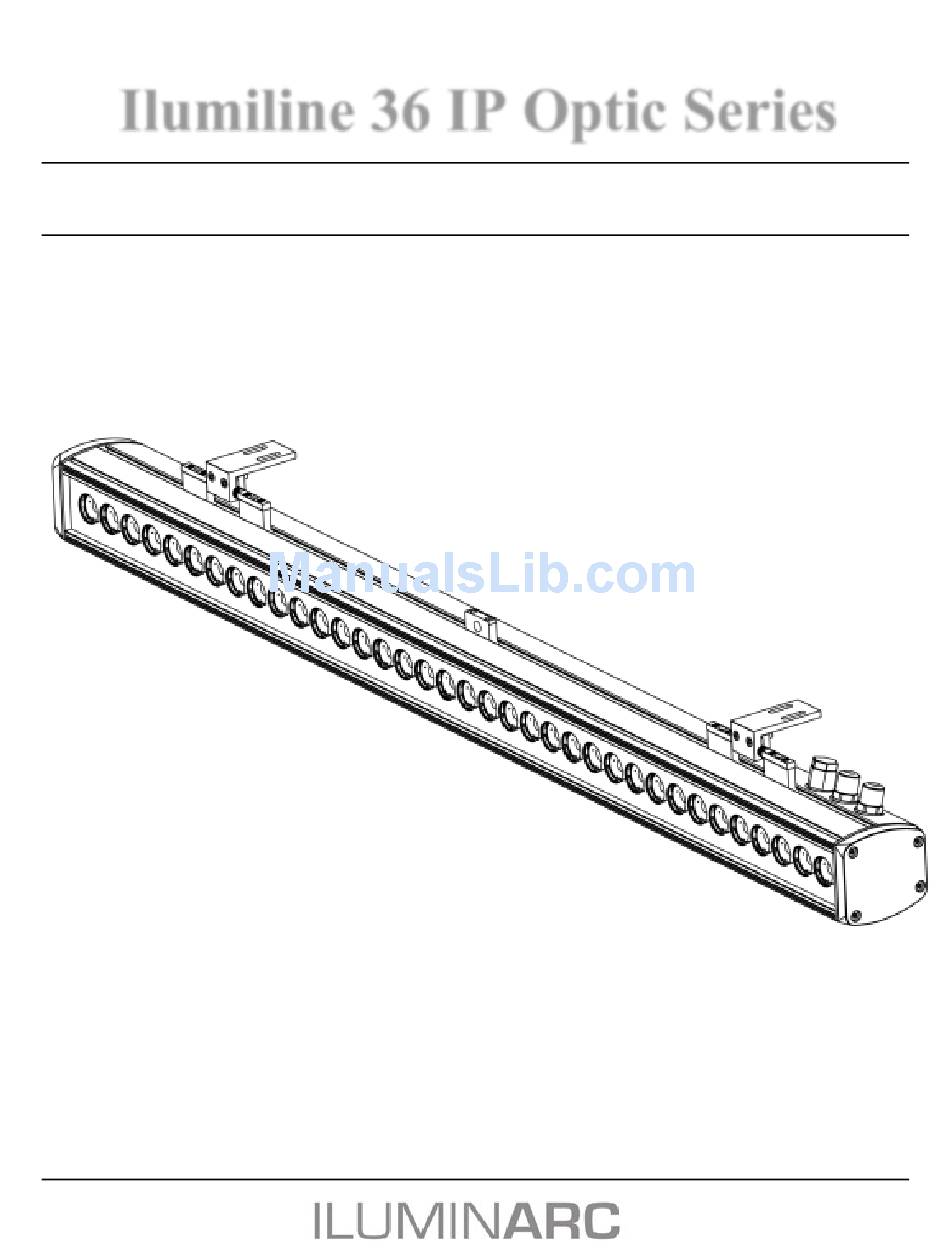

- Page 1 Ilumiline 36 IP Optic Series User Manual · Ilumiline 36 IP Optic VW · Ilumiline 36 IP Optic RGB...
- Page 2 ILUMINARC to notify any person or company of such revision or changes. This does not constitute in any way a commitment by ILUMINARC to make such changes. ILUMINARC may issue a revision of this manual or a new edition of it to incorporate such changes.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1. Introduction ....................1 What Is In the Box ......................1 Unpacking Instructions ....................1 Text Conventions ......................1 Safety Notes ......................... 2 Personal Safety ........................2 Mounting and Installation .....................2 Power and Wiring ........................2 Operation ..........................2 2. - Page 4 Table of Contents 5. Technical Information ................. 19 Product Maintenance ....................19 Product Repairs ......................19 Troubleshooting Guide ....................20 Photometrics ......................21 LED Disclaimer ......................23 LED Life ..........................23 LED Binning........................23 Color Rendering Index (CRI) ..................... 23 Returns Procedure .....................
-
Page 5: Introduction
Unpacking Instructions important installation or Immediately upon receiving a product from ILUMINARC, carefully unpack the carton. Check configuration information. the contents of the box to ensure that all parts are present and that they are in good condition. If Failure to comply with this... -
Page 6: Safety Notes
· Always disconnect this product from its power source before servicing. properly certified · Always connect this product to a grounded circuit to avoid the risk of electrocution. ILUMINARC technicians. Do not open the housing · Do not touch this product’s housing when operating because it may be very hot. -
Page 7: Product Description
Ilumiline 36 IP Optic VW · Ilumiline 36 IP Optic RGB These products are available with 60° x 10° optics. The Ilumiline 36 IP Optic, both the RGB and the VW, consist of a stainless steel body containing a power supply, control unit, impact resistant glass cover, and 36 LEDs. -
Page 8: Product Overview
Product Description Product Overview Safety Loop Signal In/Out Power In Gore™ Valve Mounting Mounting Brackets Brackets Ilumiline 36 IP Optic (RGB or VW) User Manual Rev. 8... -
Page 9: Product Dimensions
Product Description Product Dimensions Ilumiline 36 IP Optic (RGB or VW) User Manual Rev. 8... -
Page 10: Installation
Operation 3. Installation AC Power Always connect the Ilumiline 36 The Ilumiline 36 IP Optic (RGB or VW) has an auto-ranging power supply that can work with IP Optic (RGB or an input voltage range of 100~240 VAC, 50/60 Hz. VW) to a protected circuit with an appropriate Make sure that you are connecting this product to the proper voltage, as per the specifications in... -
Page 11: Dmx Linking
Ilumiline 36 IP Optic (RGB or VW) to a DMX controller, you may download standard, no more than 32 products should be the DMX Primer document from the ILUMINARC Web site at www.iluminarc.com. connected on one daisy DMX Modes... -
Page 12: Signal Wiring
Operation Signal Wiring To provide signal for the Ilumiline 36 IP Optic (RGB or VW), you can connect the bare- The signal cable must match or ended IP66 rated signal cable from the product to two IP66 rated signal connectors exceed the (DMX in and DMX Out), or use an IP66 rated junction box and conduit. -
Page 13: Controllers
Operation Controllers If you have not Each product in the Ilumiline 36 IP Optic Series can operate with a standard DMX controller, or configured the the Ilumicode addresser. The sections below provide information on how to connect these DMX starting products to the corresponding controllers. -
Page 14: Ilumicon
Operation ILUMICON The Ilumiline 36 IP Optic RGB can also work with the ILUMICON controller instead of a Refer to the standard DMX controller. Please refer to the ILUMICON User Manual to learn how to use this Operation chapter controller with the Ilumiline 36 IP Optic RGB. -
Page 15: Ilumicode
DMX address. addresser along with many other useful features is now available. The Ilumicode must be used to configure this product. The Ilumicode can be purchased separately through your ILUMINARC sales representative. To assign individual DMX addresses to each product,... -
Page 16: Mounting
ILUMINARC recommends following the general guidelines below when mounting from any flammable material as indicated in the Ilumiline 36 IP Optic (RGB or VW). -
Page 17: Operation
Operation 4. Operation Ilumicode The Ilumiline 36 IP Optic (RGB or VW) needs an external controller, the Ilumicode addresser, to change its configuration. Ilumicode Panel Description Button Function Exits from the current menu or function <MENU> Enables the currently displayed menu or sets the <ENTER>... -
Page 18: Rgb Functions Menu Map
Operation RGB Functions Menu Map (Ilumiline 36 IP Optic RGB) When you scroll Main Level Programming Levels Description through the menu options, 001~512 Sets the DMX starting address you will see many of them that do not ARC1 3-channel: RGB control... -
Page 19: Static Colors
Operation Static Colors (Ilumiline 36 IP Optic RGB, only) Go to STATIC. Select a color or effect (Red, Green, Blue, or Strobe). Select a color value (000~255) or a strobe frequency (0~20). (Ilumiline 36 IP Optic VW, only) Go to STATIC. -
Page 20: Whites Setting
Operation Whites Setting (Ilumiline 36 IP Optic RGB, only) Go to CALIB. Select a white color (WHITE 1~11) or RGB TO W. Select an RGB color (Red, Green, or Blue). Configure the color value (0~255). Repeat steps 3 and 4 for the other RGB colors to obtain a white color. -
Page 21: Dmx Values
Operation DMX Values ARC 1 Channel Function Value Percent/Setting 000 ó 255 0 ~ 100% 000 ó 255 0 ~ 100% Green 000 ó 255 0 ~ 100% Blue ARC 1 + D Channel Function Value Percent/Setting 000 ó 255 0 ~ 100% Dimmer 000 ó... -
Page 22: Special 1
Operation SPECIAL 1 Channel Function Value Percent/Setting 000 ó 255 0 ~ 100% Module 1 Red 000 ó 255 0 ~ 100% Module 1 Green 000 ó 255 0 ~ 100% Module 1 Blue 000 ó 255 0 ~ 100% Module 2 Red 000 ó... -
Page 23: Technical Information
Product Repairs trying the solutions in the Troubleshooting Table, ILUMINARC strongly advises you against attempting any repairs to this product unless you are contact ILUMINARC an authorized ILUMINARC technician. Technical Support. ILUMINARC presents the information contained in the Troubleshooting Table as a guide only. -
Page 24: Troubleshooting Guide
Unit is being configured with Ilumicode Complete the configuration process. No power Verify external power circuit and wiring Faulty internal power supply Return for service to ILUMINARC Faulty main control board Return for service to ILUMINARC Faulty LED One LEDs does not work... -
Page 25: Photometrics
1,826.6 at Horizontal: 90 , Vertical 5 Input Wattage: 48.5 Luminous Opening: Point Test: 20101207VW Test Lab: ILUMINARC R&D Optics Laboratory Photometry : Type B CIE Class: Direct Cutoff Class: Full Cutoff Flood Summary Efficiency Lumens Horizontal Spread Vertical Spread Field (10%): 35.4%... - Page 26 Max Candela: 2,854 at Horizontal: 0, Vertical: 0 Input Wattage: 45.3 Luminous Opening: Point Test: 20101207RGB Test Lab: ILUMINARC R&D Optics Laboratory Photometry : Type B CIE Class: Direct Cutoff Class: Full Cutoff Flood Summary Efficiency Lumens Horizontal Spread Vertical Spread Field (10%): 46.2%...
-
Page 27: Led Disclaimer
LED Disclaimer LED Life ILUMINARC rates LED lifetime based on lumen depreciation of 70% of the original output, with data provided by the manufacturer of the LED. Data from the manufacturer of the LED are not independently verified or measured by ILUMINARC. -
Page 28: Returns Procedure
ILUMINARC will not issue call tags. affixed label. Call ILUMINARC and request a Return Merchandise Authorization Number (RMA #) before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause for the return. -
Page 29: Claims
ILUMINARC. The customer must submit the report upon reception of the damaged merchandise. Failure to do so in a timely manner may invalidate the customer’s claim with the carrier. -
Page 30: Technical Specifications Vw Products
Technical Information Technical Specifications VW Products Length Width Height Weight Dimensions and Weight 38.6 in (980 mm) 4.0 in (102 mm) 3.5 in (89 mm) 10.3 lbs (4.7 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Electrical Power Supply Type Range Voltage Selection... -
Page 31: Technical Specifications Rgb Products
Technical Information Technical Specifications RGB Products Dimensions and Length Width Height Weight Weight 38.6 in (980 mm) 4.0 in (102 mm) 3.5 in (89 mm) 10.3 lbs (4.7 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Electrical Power Supply Type Range Voltage Selection... - Page 32 Technical Information...
