Summary of Contents for Iluminarc ilumipod 54g2 ip

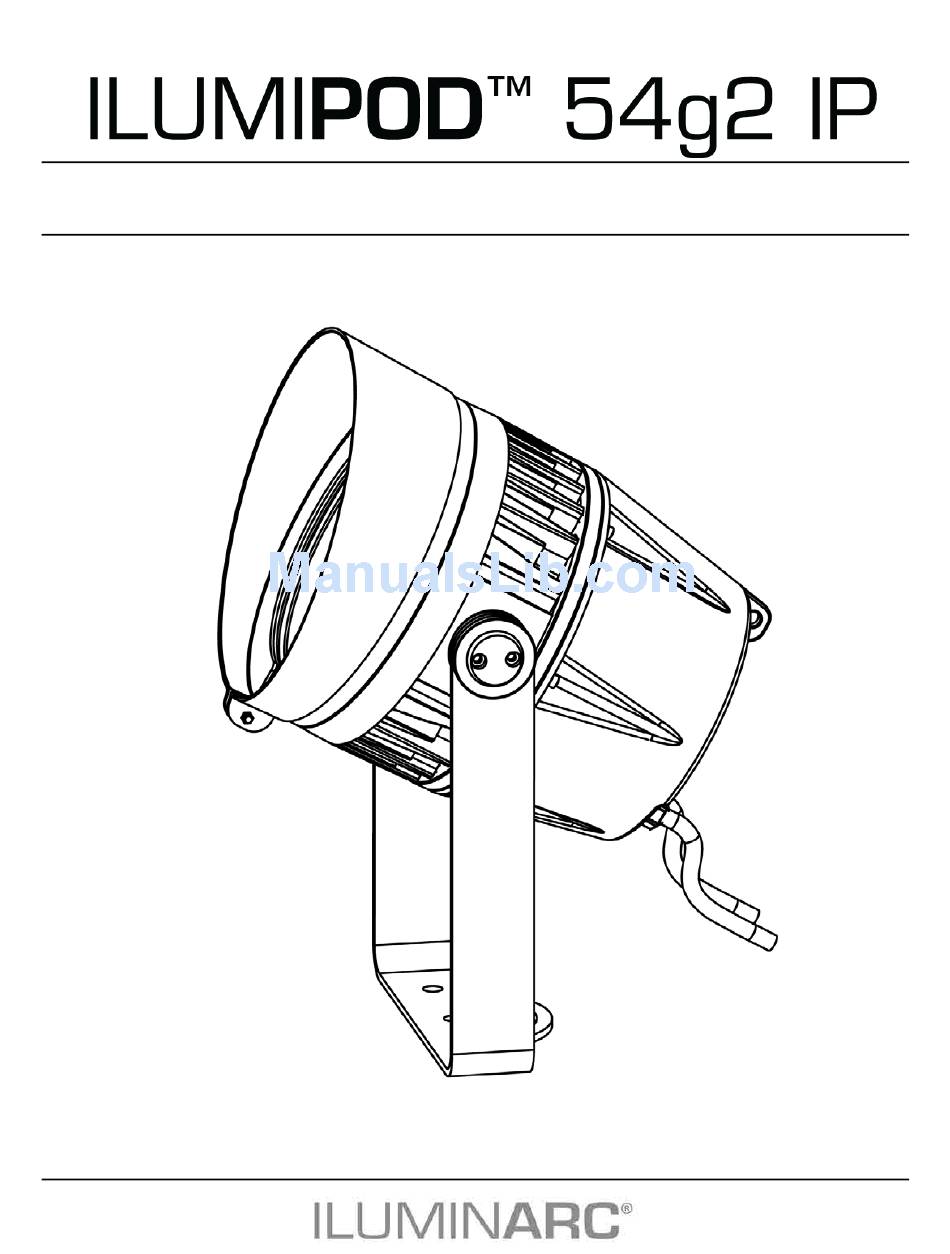

- Page 1 User Manual...
- Page 2 ILUMINARC® reserves the right to revise this document and to make changes from time to time in the content without obligation of ILUMINARC® to notify any person or company of such revision or changes. ILUMINARC® may issue a revision of this manual or a new edition of it to incorporate such changes.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1. Introduction .......................... 1 What Is In The Box ..........................1 Unpacking Instructions ..........................1 Claims ................................1 Text Conventions ............................. 1 Safety Notes ............................2 Personal Safety ..............................2 Mounting and Installation ..........................2 Power and Wiring .............................2 Operation .................................2 2. - Page 4 Table of Contents 4. Operation ..........................11 ILUMICODE ADDRESSER ........................11 Ilumicode Panel Description ........................... 11 Control Options ............................11 Programming ............................11 DMX Personality ............................11 DMX Starting Address ............................ 11 Static Colors ..............................12 Dimmer ................................12 Color ................................12 Whites Setting ..............................
-
Page 5: Introduction
The carrier is responsible for any damage incurred during shipping. Therefore, if the received merchandise appears to have been damaged during shipping, the customer must submit the damage report and any related claims to the carrier, not ILUMINARC®. The customer must Useful information. -
Page 6: Safety Notes
User Manual will only apply to properly certified · Always disconnect this product from its power source before servicing. ILUMINARC® technicians. · Always connect this product to a grounded circuit to avoid the risk of electrocution. Do not open the housing or attempt any repairs ·... -
Page 7: Product Description
Product Description 2. Product Description The Ilumipod™ 54g2 IP is an LED wash light intended to light a variety of both indoor and outdoor applications. The product consists of a cast aluminum body containing a power supply, control unit, and an adjustable bracket. The DMX input and output is located on the rear of the product. -
Page 8: Product Overview
Product Description Product Overview Mounting Bracket Power In Data In/Out Rear View Adjustment Knob Side View 3 W LEDs Front View Ilumipod™ 54g2 IP User Manual Rev. 2... -
Page 9: Product Dimensions
Product Description Product Dimensions 11.54 in 293 mm 17.72 in 450 mm 11.18 in 284 mm 9.76 in 248 mm 16.46 in 418 mm Ilumipod™ 54g2 IP User Manual Rev. 2... -
Page 10: Installation
The Ilumipod™ 54g2 has 3 mounting points on the mounting bracket to secure it to almost any this product away surface provided that it can support the product’s weight. ILUMINARC® recommends following from any flammable the general guidelines below when mounting the Ilumipod™ 54g2 IP. -
Page 11: Ac Power
Installation Always connect the Ilumipod™ AC Power 54g2 IP to a protected circuit with an The Ilumipod™ 54g2 IP has an auto-ranging power supply that works with an input voltage appropriate electrical range of 100–277 VAC, 50/60 Hz. ground to avoid the risk of electrocution or fire. -
Page 12: Dmx Linking
If you are not familiar with the DMX standard, or if you need information about the DMX 32 products should be cables needed to link the Ilumipod™ 54g2 IP to a DMX controller, you may download the connected on one daisy DMX Primer from the ILUMINARC® website at http://www.iluminarc.com/reports/dmx- chain without using a primer. -
Page 13: Controllers
Installation Controllers If you have not The Ilumipod™ 54g2 IP can operate with a standard DMX controller or the ILUMICODE configured the addresser. The sections below provide information on how to connect these products to the DMX starting address and corresponding controllers. -
Page 14: Ilumicode Addresser
DMX address. Important: The Ilumicode must be used to configure this product. The Ilumicode can be ILUMINARC® suggests that you purchased separately through your ILUMINARC® sales representative. connect no more than 20 products in this mode and keep the total distance to less than 60 m (197 ft). -
Page 15: Operation
Operation 4. Operation ILUMICODE ADDRESSER The Ilumipod™ 54g2 IP needs an external controller, the Ilumicode addresser (Ilumicode), to change its configuration. Ilumicode Panel Description Button Function <MENU> Exits from the current menu or function. Enables the currently displayed menu or sets the currently selected value into the selected <ENTER>... -
Page 16: Static Colors
Operation Static Colors 1. Go to STATIC. 2. Select a color or effect (Red, Green, Blue, Cool, or Strobe). 3. Select a color value (000–255) or a strobe frequency (0–20). Dimmer This setting gives the user four different options to simulate the dimming curve of an incandescent lighting product. -
Page 17: Menu Map (Ilumicode)
Operation Menu Map (Ilumicode) Main Level Programming Levels Description 001–512 Sets the DMX starting address ARC 1 3-channel: RGB control ARC 1 + D 4-channel: RGB control + dimmer ARC 2 4-channel: RGBW control ARC 2 + D 5-channel: RGBW control + dimmer PERSON 7-channel: RGB control, dimmer, color macro, strobe, ARC FULL... -
Page 18: Dmx Values
Operation DMX Values ARC FULL Channel Function Value Percent/Setting 000 ó 255 Dimmer 0–100% 000 ó 255 0–100% 000 ó 255 Green 0–100% 000 ó 255 0–100% Blue 000 ó 010 No function 011 ó 030 R: 100% G: 0–100% B: 0 031 ó... -
Page 19: Special 2
Operation SPECIAL 2 Channel Function Value Percent/Setting 000 ó 255 Dimmer 0–100% 000 ó 255 0–100% 000 ó 255 Green 0–100% 000 ó 255 Blue 0–100% 000 ó 255 White 0–100% 000 ó 010 No function 011 ó 030 R: 100% G: 0–100% B: 0 031 ó... -
Page 20: Technical Information
6. Gently polish the external glass surfaces until they are free of haze and lint. Product Repairs ILUMINARC® strongly advises you against attempting any repairs to this product unless you are an authorized ILUMINARC® technician. Ilumipod™ 54g2 IP User Manual Rev. 2... -
Page 21: Photometrics
Technical Information Photometrics Ilumipod™ 54g2 IP User Manual Rev. 2... -
Page 22: Led Disclaimer
LED Disclaimer LED Life ILUMINARC® rates LED lifetime based on lumen depreciation of 70% of the original output, with data provided by the manufacturer of the LED. Data from the manufacturer of the LED are not independently verified or measured by ILUMINARC®. When the product is operating in optimal environmental conditions, the LED lifetime is rated to be 50,000 to 70,000 hours by the LED manufacturer. -
Page 23: Return Procedure
The user must clearly label the package with an RMA #. ILUMINARC® will refuse any product(s). product returned without an RMA #. DO NOT write the RMA # directly on the box. -
Page 24: Technical Specifications
Technical Information Technical Specifications Length Width Height Weight Dimensions and Weight 11.19 in (284 mm) 13.95 in (354 mm) 16.45 in (418 mm) 21.8 lb (9.9 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Supply Type Range Voltage Selection Electrical... - Page 25 Ilumipod™ 54g2 IP User Manual...
