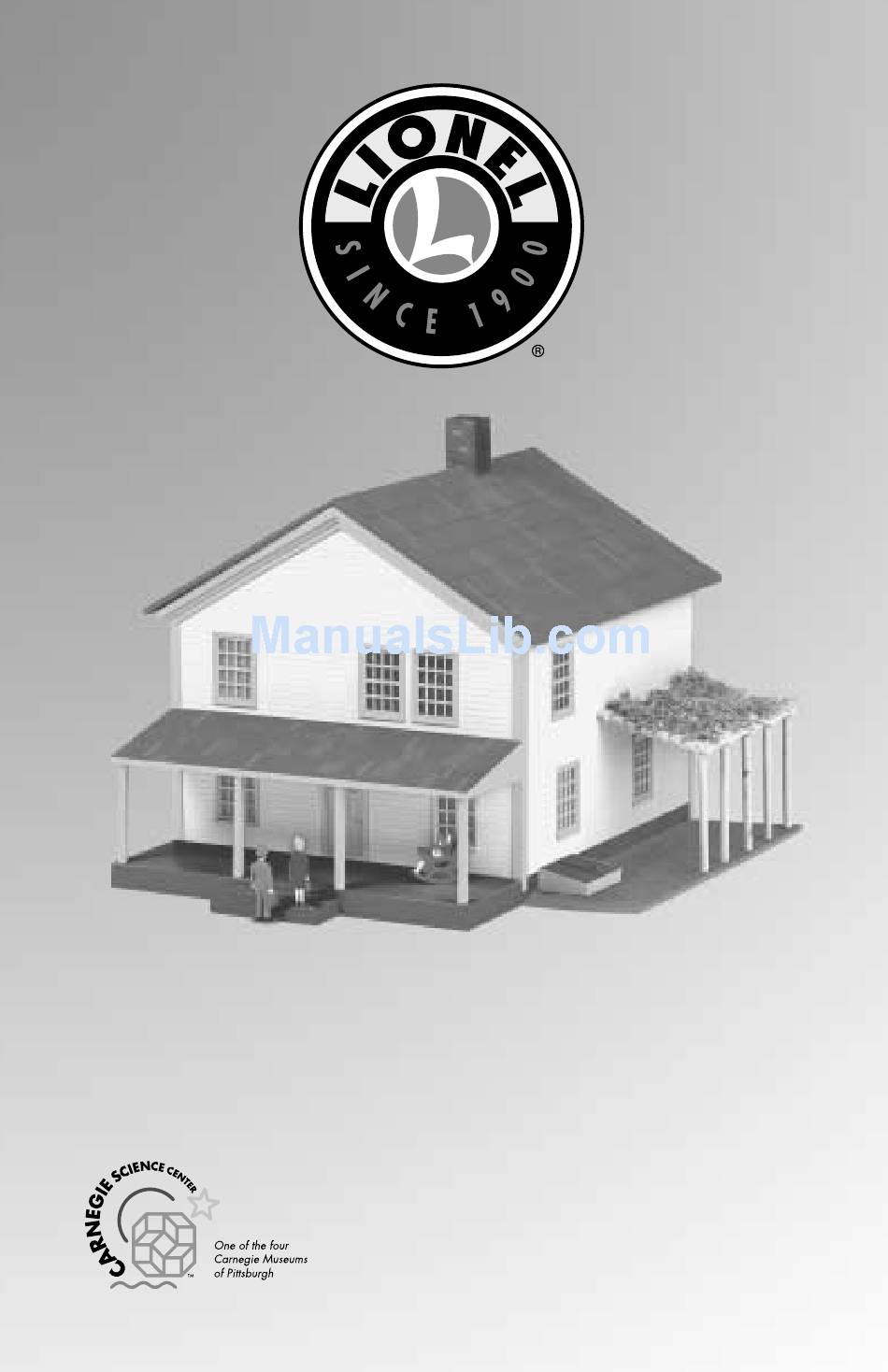

- Page 1 72-4140-250 5/03 Lionel Charles Bowdish Homestead Owner’s Manual...
-
Page 2: Table Of Contents
• Two green wires • Service Center list • Owner's Manual The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel®, TrainMaster®, Odyssey®, RailSounds™, CrewTalk™, TowerCom™, DynaChuff™, StationSounds™, Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1 Remote Controller®,... -
Page 3: Powering The Accessory
Powering the accessory his accessory operates best at 12-18 volts (AC). You may choose to power the accessory with a separate accessory power supply or through a Lionel Lockon (available separately, 6-62900). Use the two pieces of wire that were included with this accessory. Be sure that the insulation is stripped back 1/4”... -
Page 4: Controlling The Accessory
Controlling the accessory hrow the switch on the side of the cellar staircase to activate the accessory. Refer to Figure 2. Figure 2. ON/OFF switch Controlling the accessory in the Command Control environment or operation in the TrainMaster Command Control environment, you may choose to wire this accessory with an SC-2 Switch and Accessory Controller (available separately, 6-22980) or the Accessory Switch Controller (available separately, 6-14182). - Page 5 Controlling the accessory in the Command Control environment (continued) SC-2 wiring and operation hree wires are needed to connect the accessory to the SC-2 Switch and Accessory Controller and a separate accessory transformer. Refer to Figure 3. 1. Attach one wire to the transformer Common/Ground/U terminal and connect it to the accessory COMM (common) position on the SC-2.
-
Page 6: Controlling The Accessory In The Command Control Environment
Controlling the accessory in the Command Control environment (continued) Accessory Switch Controller wiring and operation hree wires are needed to connect the accessory to the Accessory Switch Controller (ASC) and a separate accessory transformer. Refer to Figure 4. 1. Attach one wire to the transformer Power/A terminal and connect it to the COMM terminal on the ASC. -
Page 7: Replacing The Lamps
Replacing the lamps our accessory is illuminated by two lamps, Lionel part no. 620-4140-300. During the course of normal operations, these lamps may require replacement. Replacement lamps are available at your authorized Lionel service center or from Lionel service. To replace the lamps, simply lift away the roof and locate the expired lamp. Carefully unscrew the lamp from its socket and install the replacement. -
Page 8: Limited Warranty/Lionel Service
Lionel product, including all to the nearest Authorized Lionel Service Center. mechanical and electrical components, Your nearest Lionel Service Center can be found by moving parts, motors and structural calling 1-800-4-Lionel, or by accessing our Website components, except for light bulbs, is warranted to at www.lionel.com.
